Overview

The Core SWX Hypercore XL 14.8V 293Wh Battery, in a V-mount, carries over all the features the Hypercore series has become known for, but upgrades the draw to 15A (20A at peak). The battery is built around the high C-rated Hypercore cell, which was originally used for a military application. The cells are encased in an over-molded, rubberized housing that protects against impact while providing non-slip handling.

SKU: GC49-52.HCXL-V

Core SWX Hypercore XL 14.8V 293Wh V-Mount Battery

The Core SWX Hypercore XL 14.8V 293Wh Battery, in a V-mount, carries over all the features the Hypercore series has become known for, but upgrades the draw to 15A (20A at peak). The battery is built around the high C-rated Hypercore cell, which was originally used for a military application. The cells are encased in an over-molded, rubberized housing that protects against impact while providing non-slip handling.

With 293Wh and 15A load, the Hypercore XL can power up to the most advanced cine cameras for extended periods. With a 25W load, the estimated normal runtime is 11.7 hours. Moreover, one of the things Hypercore batteries are known for is outputting the maximum draw without diminishing in service life, and that stands true with the Hypercore XL as well. All this is complemented by a smart LCD, a hibernation mode, D-Tap and USB ports, and wide charger compatibility.

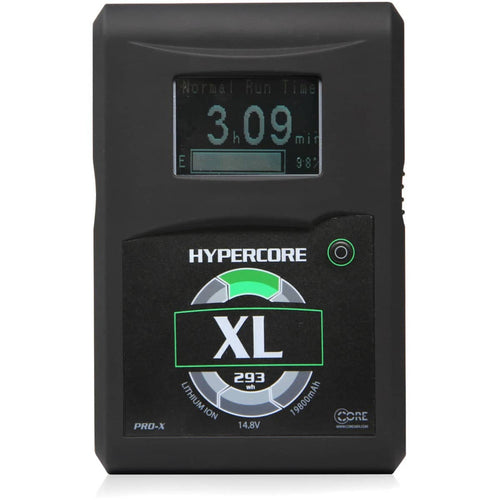

The LCD is large and positioned on the front of the battery where it's most easily visible. It displays runtime in hours and minutes when in use, and provides an estimated runtime based on a dummy load of 30W when in standby. When charging, the LCD shows the remaining charge time. To deliver runtime, the Hypercore XL uses Core SWX's proprietary on-board fuel computer to take an aggregate view of the battery's past usage and charge and discharge performance. In this way, it is able to provide a highly accurate calculation every time. In addition to the LCD, there's also a 4-LED gauge on the side of the battery where it can quickly be glanced over at.

To prevent the common issue of self-discharge when the battery is not in use, the Hypercore XL is designed with a hibernation feature. When there's no usage or movement for 48 hours, the battery goes into a deep sleep and preserves its state of charge. Backing up this feature is a motion-detecting accelerometer tied to a clocking algorithm. Together, these measure how long the battery is not in use and then trigger hibernation. However, upon any movement, the battery comes fully back to life at maximum capacity.

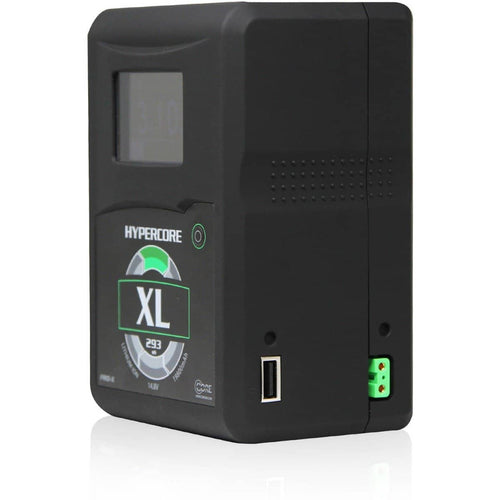

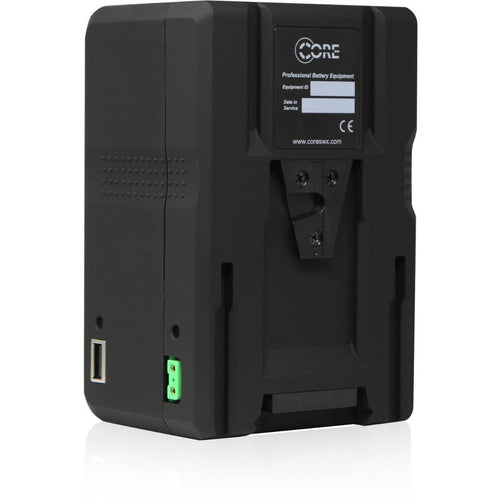

For powering accessories and mobile devices, the Hypercore XL offers one D-Tap port that provides 12 - 16.8V of power and one 5V USB port. The V-mount Hypercore XL is compatible with any Core SWX V-mount charger as well as with IDX and Sony V-mount chargers.

Regular price $1,403.60
Sale price $1,403.60 Regular price $1,595.00
Pay with
Pay with
In Stock

Request a Price Match

Fill out the price match form below, and we will be in touch shortly.

$1,403.60

Collapsible content

Overview
Reviews
Overview

The Core SWX Hypercore XL 14.8V 293Wh Battery, in a V-mount, carries over all the features the Hypercore series has become known for, but upgrades the draw to 15A (20A at peak). The battery is built around the high C-rated Hypercore cell, which was originally used for a military application. The cells are encased in an over-molded, rubberized housing that protects against impact while providing non-slip handling.
