RED V-RAPTOR XL 8K VV Cinema Camera Production Pack (V-Lock, With Batteries)

The RED V-RAPTOR XL 8K VV Cinema Camera Production Pack (V-Mount, with Batteries) includes the V-RAPTOR 8K VV camera, four REDVOLT XL-V batteries, a dual-battery charger, an XL riser plate, two 2TB PRO CFexpress cards, a CFexpress card reader, a RED Touch 7 Inch LCD monitor, an XL top handle with extensions, top and bottom XL 15mm LWS support brackets, a 5-pin to dual-XLR audio adapter, and an 18" DSMC3 RMI cable.

RED DIGITAL CINEMA V-RAPTOR XL 8K VV Cinema Camera (V-Mount)

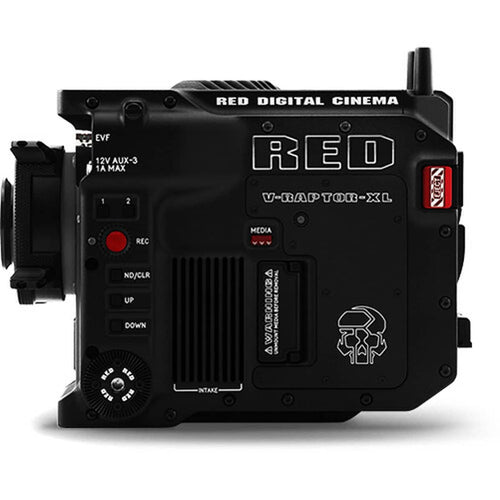

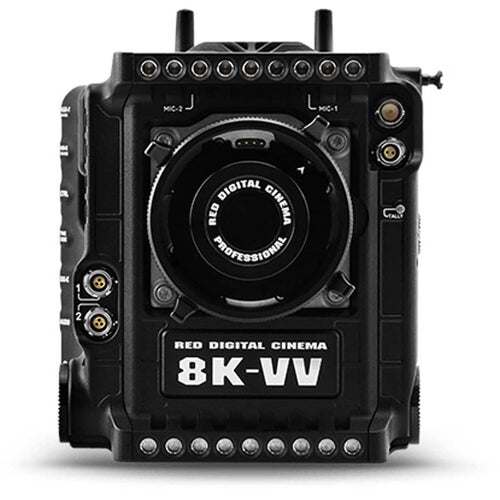

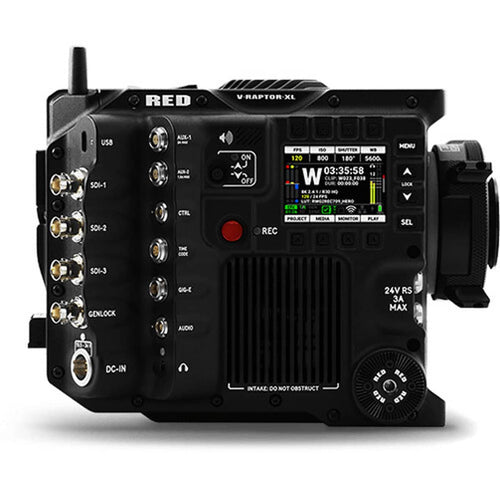

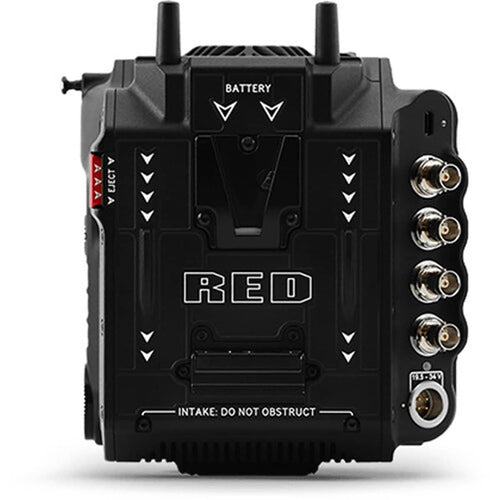

The V-mount V-RAPTOR XL 8K VV Camera from RED DIGITAL CINEMA offers up to 8K VV multiformat video capture, REDCODE raw and Apple ProRes recording, and 1080p streaming in a streamlined form featuring an array of interfaces suitable for high-end crew use. This follow-up to the V-RAPTOR incorporates internal ND filters and an interchangeable lens mount, and it includes an ARRI PL mount. Its industry-standard interface incorporates three 12G/6G/3G-SDI outputs, both 12 and 24V power outputs, timecode and genlock ports, and a V-mount battery plate.

RED DIGITAL CINEMA Compact Dual Battery Charger (V-Mount)

Charge two V-mount batteries for use with a DSMC3 cinema camera such as the V-RAPTOR 8K VV while on location with the RED Compact Dual V-Mount Battery Charger. Taking advantage of the same technology built into the larger fleet chargers, this compact charger can charge two V-mount REDVOLT MICRO-V or REDVOLT XL-V batteries at a 3A rate. Designed and manufactured in partnership with Core SWX, the charger can charge two REDVOLT MICRO-V 98Wh batteries in less than five hours. A power cable is included.

RED DIGITAL CINEMA REDVOLT XL-V Battery (156Wh, V-Mount)

Power your V-RAPTOR XL or most other V-mount cameras with the REDVOLT XL-V Battery from RED DIGITAL CINEMA. This 156Wh battery automatically detects the voltage of your camera and outputs 12V/24A or 24V/12A power accordingly. The REDVOLT XL-V was designed in conjunction with battery-maker Core SWX.

RED DIGITAL CINEMA DSMC3 RED Touch 7.0" LCD Monitor (Direct Mount)

Add a direct-mount onboard monitor to your DSMC3 camera rig with this DSMC3 RED Touch 7.0" LCD Monitor from RED DIGITAL CINEMA. The RED Touch features daylight viewing, a wide 100% DCI-P3 color gamut, and touchscreen control for DSMC3 cameras, such as the V-RAPTOR 8K VV. The monitor features a high 322 ppi pixel density, 1920 x 1200 resolution, 1250:1 contrast ratio, and 1300 cd/m² brightness that combine to offer high-quality imaging.

RED DIGITAL CINEMA 2TB PRO CFexpress 2.0 Type B Memory Card

Certified for RED V-RAPTOR camera systems, the 2TB PRO CFexpress 2.0 Type B Memory Card from RED offers protection from overheating, operates with a reduced power draw, and helps to ensure high bitrate captures. This card can capture all frame rates and resolutions, including Full HD and raw 4K, 6K, 8K, and 12K video. It features a capacity of 2TB and uses the PCIe 3.0 x2 bus to deliver maximum read/write speeds of 800 MB/s.

RED DIGITAL CINEMA V-RAPTOR XL Top Handle with Extensions

Create a lightweight or extended handle using the V-RAPTOR XL Top Handle with Extensions from RED DIGITAL CINEMA. This modular handle includes 1, 3, and 5" extensions, an elbow unit, and a 15mm monitor mount. It features a start/stop button, multiple 3/8"-16 and 1/4"-20 threads, and wooden inlays.

RED DIGITAL CINEMA V-RAPTOR XL Riser Plate (15mm & 19mm Studio)

The RV-RAPTOR XL Riser Plate from RED DIGITAL CINEMA enables you to raise a separately available 15 or 19mm studio baseplate to the correct optical height for mounting lenses and accessories. This riser plate also provides several 1/4"-20 and 3/8"-16 mounting threads.

RED DIGITAL CINEMA Top 15mm LWS Rod Support Bracket for V-RAPTOR XL

This Top 15mm LWS Rod Support Bracket from RED DIGITAL CINEMA attaches securely to the top of your RED V-RAPTOR XL camera, enabling you to mount 15mm LWS compatible accessories like lens motors or viewfinder brackets.

RED DIGITAL CINEMA DSMC3 5-Pin to Dual XLR 3-Pin Adapter

Add two XLR inputs to your V-RAPTOR camera with the RED DSMC3 5-Pin to Dual XLR 3-Pin Adapter. Connect the included 5-pin ODU cable to your camera's ODU port, and the other end of the cable to the adapter's port. The adapter can provide 48V phantom power and supports both mic and line-level inputs. It mounts to the V-Raptor using a 3/8"-26 screw, and has anti-twist pins to prevent it from spinning on your camera. The unit also features 6 x M2.5 screw holes for future accessories.

RED DIGITAL CINEMA Hood for DSMC3 RED Touch 7" LCD

Use the Hood for DSMC3 RED Touch 7" LCD from RED DIGITAL CINEMA to reduce or eliminate glare on the monitor's screen, improving your viewing while outdoors or in bright light. This folding hood mounts quickly on the DSMC3 RED Touch 7" using two captive M3 screws.

Key Features

• V-RAPTOR XL 8K VV Camera System

• 4 x REDVOLT XL-V Batteries & 1 x Charger

• 2 x RED PRO CFexpress 2TB Cards, Reader

• DSMC3 RED Touch 7 Inch LCD Monitor & Shade

• V-RAPTOR XL Top Handle with Extensions

• V-RAPTOR XL Riser Plate

• V-RAPTOR XL Top/Bottom 15mm LWS Brackets

• DSMC3 RED 5-Pin to Dual-XLR Adapter

• 45cm DSMC3 RMI Cable
