Teradek ACE 750 4K HDMI Video Receiver Only

With the Teradek Ace 750 HDMI Wireless Video Receiver, you can receive visually lossless, uncompressed 10-bit 4K30 HDR video signals from a camera with an Ace 750 transmitter with no delay up to 750' line of sight. The Ace 750 supports 5 and 6 GHz frequency bands, so it is compatible with existing Bolt systems such as the Bolt 6 and Bolt 4K, as well as SmallHD monitors with integrated Bolt TX or RX units. Built-in antennas make the unit more compact and easy to install.

The Ace 750 features an HDMI output, and power is provided using a DC power source or L-series battery plate, both available separately. A separately available Ace 750 transmitter can send the video signal simultaneously to up to six receiver devices, including Ace or Bolt receivers and devices running the Bolt Manager app. The unit can be secured to a mount or stand via built-in threads.

Zero-Delay Wireless Video

Transmit and receive up to 10-bit 4K30 uncompressed HDR video to receivers up to 750' away with less than a 1 ms delay.

Bolt Compatibility

Supporting 5 and 6 GHz frequency ranges, Ace 750 receivers are compatible with all Bolt 4K and Bolt 6 receivers, as well as integrated wireless SmallHD Bolt monitors.

Reliability

Built with the same reliability and performance as the Bolt, the Ace 750 ensures you have a continuous video feed when you need it the most.

Mounting Options

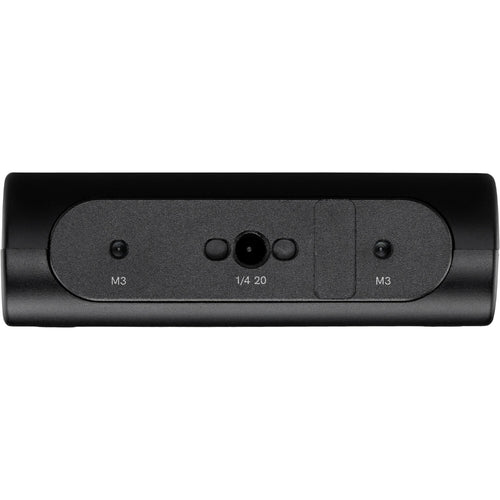

The Ace 750 receiver includes multiple mounting threads for mounting onto a rig or stand.

Power Options

The Ace 750 is powered using a separately available DC power source or by a separately available L-series battery plate attached directly to the receiver.

Key Features:

4K30 HDR Video Output Support

Compatible with Bolt 4K Units

Up to 228 m Reception Range

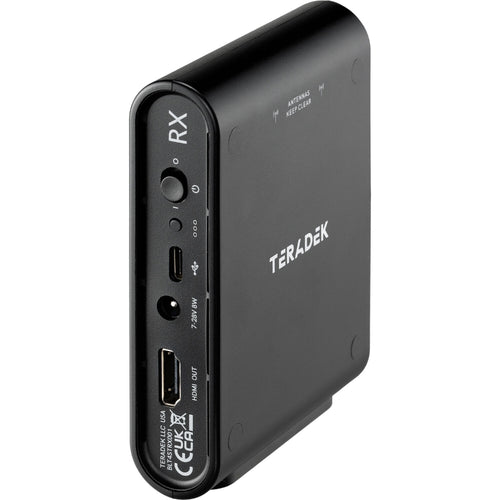

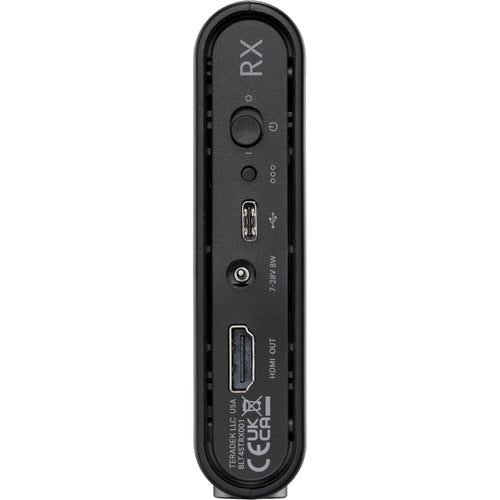

HDMI Output with Built-in Antennas

Supports up to Six Devices

5 and 6 GHz Support

Embedded Audio Output Support

Less than 1 ms Latency

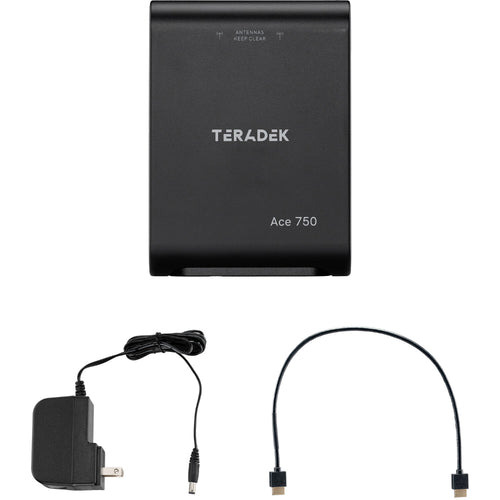

What's in the Box:

Teradek ACE 750 4K HDMI Video Receiver Only

Ultrathin HDMI Cable (18")

Power Adapter (18W 12 VDC, 6')

D-Tap to Barrel Cable (18")
