ZILR 12G-SDI BNC and Mini-BNC Cable Kit

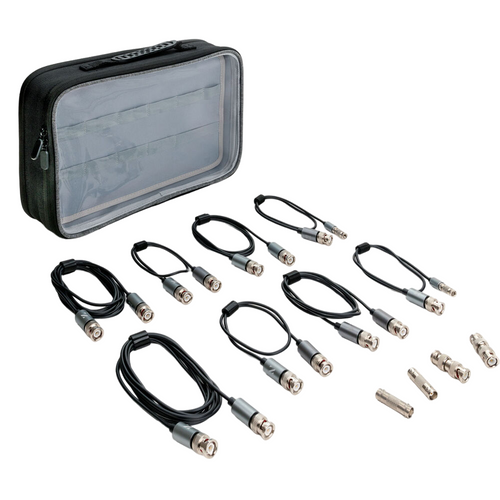

The 12G-SDI BNC and Mini-BNC Cable Kit from ZILR comprises two each of 50.4 cm, 3.3', and 6.6' BNC cables, two 50.4 cm mini-BNC cables, two female couplers, and two male couplers. Rated for 12G-SDI, these cables support video resolutions up to DCI 4K60. This kit includes a clear-sided, zippered case with interior elastic loops for organising the cables.

ZILR 12G-SDI BNC Cable (3.3')

Transfer up to 4K video resolutions with this 3.3' 12G-SDI BNC Cable from ZILR via 12G-SDI, 6G-SDI, HD-SDI, or 3G-SDI signal. Each end is equipped with a male BNC gold center-pin connector to create a 28 AWG coaxial cable for clean signal transmission. The cable is designed with copper braided shielding and supports 12 Gb/s bit rates. An included pouch is perfect for bringing the cable on the go in your preexisting gear bag.

ZILR 12G-SDI BNC-to-BNC Cable (6.6')

Supporting video signals up to 12G-SDI, this 6.6' long ZLIR 12G-SDI BNC-to-BNC Cable is designed to survive the rigors of the production day. The 28 AWG construction allows the cable to remain flexible, and the copper braided shield helps to protect the integrity of your video signal. The BNC connectors are industry standard for SDI signals, and feature gold-pin connection for signal integrity.

4K60 Hz for resolutions up to 4096x2160

Supports Full HD 1080p

BNC to BNC

Supports up to 12 Gbit/s bitrates

Supports 12G/6G/3G/HD/SD

Cable thickness of 3.0+/-0.15mm

Shielding: copper braid >85%

Wire gauge: 28AWG

Coaxial type: RG-6

Insulation type: Polyethylene 80p

Connectors: gold pin connection 15u

VSWR (Voltage Standing Wave Ratio): 1.5D-2V

Frequency: DC to 12 GHz

Maximum impedance: >75 ohms

ZILR 12G-SDI Mini BNC to BNC Cable 46.96 cm

Transfer up to 4K60 video resolutions with this 46.96 cm 12G-SDI Mini BNC to BNC Cable from ZILR via a 12G-SDI, 6G-SDI, HD-SDI, or 3G-SDI signal. One end has a male mini-BNC connector and the other, a male BNC connector.

Key Features:

12G-SDI Rated, 75-Ohm Impedance

Supports up to DCI 4K60 Video

Each 50.4 cm, 3.3', and 6.6' Cables

50.4 cm Mini-BNC Cables

Female and Male Couplers

Zippered, Clear-Sided Case

Elastic Cable Loops Inside Case

What's in the Box:

ZILR 12G-SDI BNC and Mini-BNC Cable Kit

Pouch

BNC Coupler Kit

Carry Case
