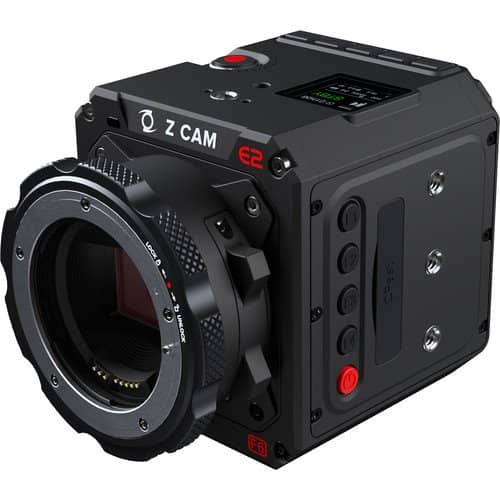

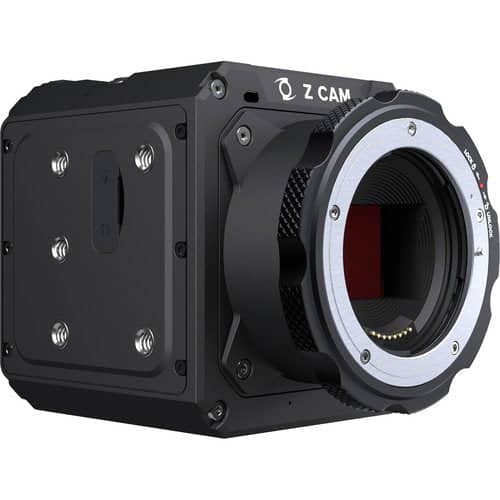

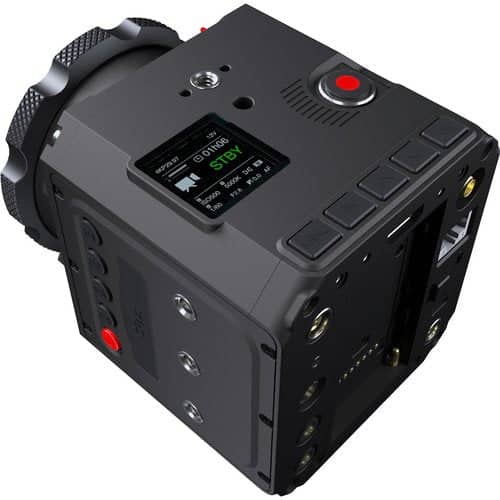

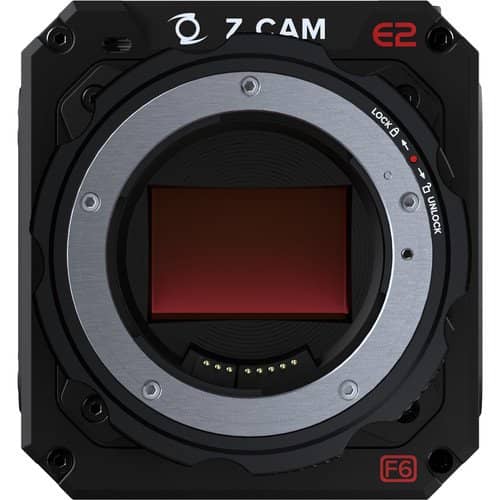

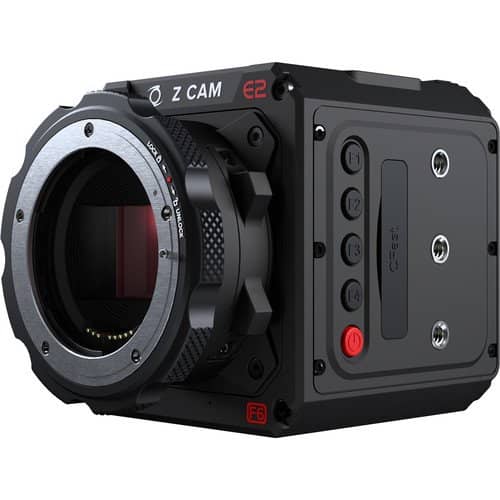

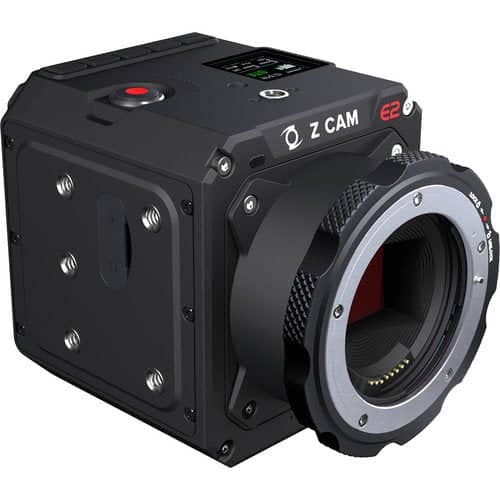

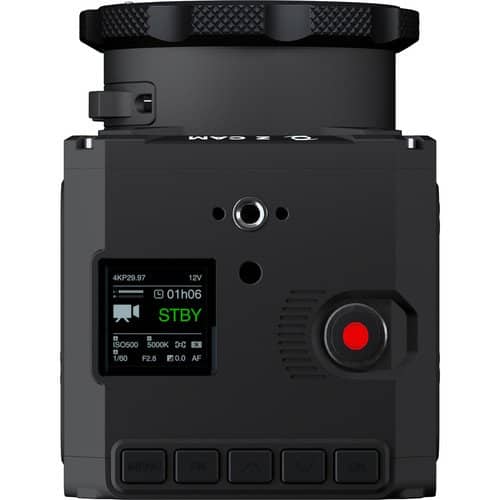

Z CAM E2-F6 Full-Frame 6K Cinema Camera (EF Mount)

Shoot professional high-definition cinema footage with the Z CAM E2-F6 Full-Frame 6K Cinema Camera with a Canon EF lens mount. The camera features a full-frame sensor with 10-bit 4:2:2 color support and nominal 15 stops of dynamic range, supports timecode, shoots up to 6K at up to 60 fps, and records data up to 300 Mb/s onto CFast 2.0 media.

Supported recording formats include ZRAW format, which supports 12-bit, MOV and MP4 using H.265 for 10-bit recording, and H.264 which supports 8-bit recording. Its HDMI 2.0 port supports 4K60, 10-bit 4:2:2 video output. Audio is recorded in 24-bit 48 kHz using AAC or PCM (PCM for MOV format only) through its 3.5mm stereo jack or via a separately available XLR connector using its 5-pin LEMO port.

The E2-F6 can be controlled via serial ports, a 2.5mm LANC connector, a USB Type-C port, Ethernet port, or by the Z Camera iOS app to control the camera via Wi-Fi and to view a live image preview and to configure settings. The camera can record time-lapse, slow motion, and can even live stream via its Gigabit Ethernet port. You can also control it locally by the buttons along the side of the camera.

The E2-F6 can be powered by a separately available battery using the built-in L-series battery mount, or you can power the camera using a separately available power adapter using its 2-pin LEMO port. The camera also features a 12 VDC 2-pin LEMO power output to provide power to separately available accessories.

Firmware 0.98

All resolution and frame rate combinations now support ProRes 422 recording (except C8K 2.4:1)

ProRes proxy records in separate files

Preview and in-camera playback with 3D LUT banding issue is fixed

External SSD recording through USB performance is improved

Added 5K 60 fps recording on E2-F6

UVC (USB camera) bug fixes

6K Capture and Recording

Unburdened by a recording time limit, you can record 6K at up to 60 fps for up to the limit of your recording media's capacity

11:16:03 AM

CMOS sensor with 14 stops of dynamic range

The camera supports ZRAW, REC. 709, Z-Log2, FLAT, and HLG

ZRAW supports 12-bit recording

H.265 (10-bit colour) internal recording on CFast 2.0 cards

4K60, 10-bit 4:2:2 video output through HDMI 2.0 is supported

Full-metal housing for efficient heat dissipation

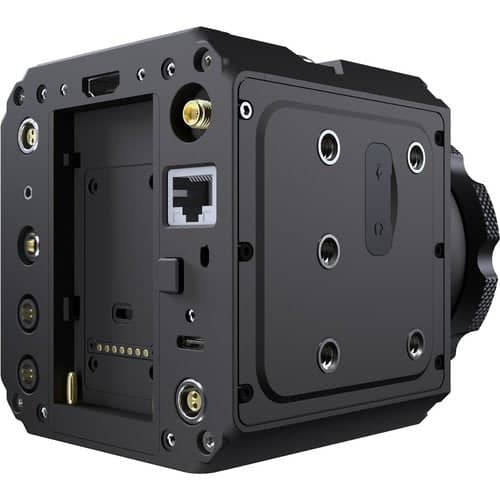

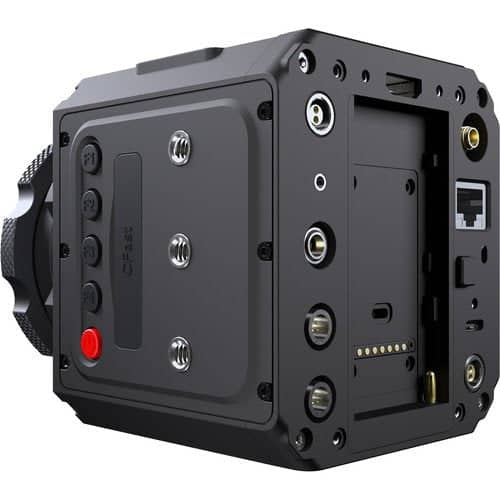

Interfaces and Expandability

USB 3.0 Type-C for camera control and data transformation only

Two serial ports for camera control

Ethernet port for live view, control, and file transfer to a browser or a computer running Z CAM software

LANC port for remote control including power on/off

iOS App

Z Camera is a mobile application for camera live preview and control through 5G or 802.11n Wi-Fi. It allows you to start/stop recording and adjust the camera settings remotely, and also has advanced features on a camera live preview.

Camera Settings

White balance: Auto, preset, manual (2300 to 7500K)

Focus modes: MF, AF, CAF

Image: Brightness, contrast, saturation, sharpness

LUT: REC. 709, Z-Log2, FLAT, HLG

Timecode: Current time, manual input

Camera Body

Made from aluminium for strength and heat dissipation

2-pin LEMO 12 VDC power output

Powers from a separately available power adapter or optional L-series batteries
