Overview

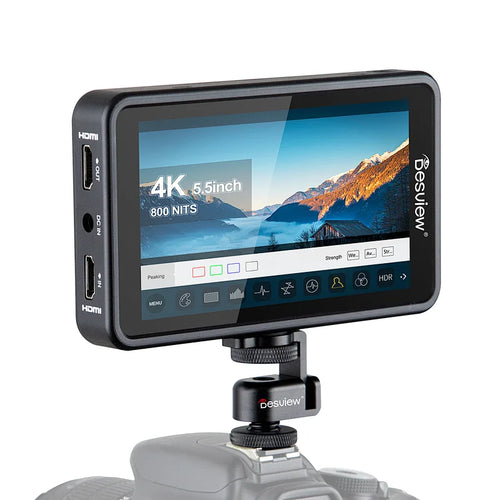

The R5II 5.5" On-Camera Touch Monitor from Desview is a lightweight and portable on-camera monitor boasting a bright 800 cd/m² display with a 178° viewing angle and a screen resolution of 1920 x 1080. Packed with useful tools and features, including touchscreen and pinch-to-zoom, the R5II has an HDMI input that handles up to DCI 4K24 and an HDMI loop out. It also offers a 3.5mm headphone jack and a USB input for loading custom 3D LUTs using the supplied USB thumb drive.

SKU: GC82-DESVIEW-R5II

Desview R5II 5.5" Touch Screen Monitor With Lut

Name: Desview R5II 5.5" Touch Screen Monitor With Lut
Brand: Desview
SKU: GC82-DESVIEW-R5II
Price: 280.40 AUD
Availability: InStock

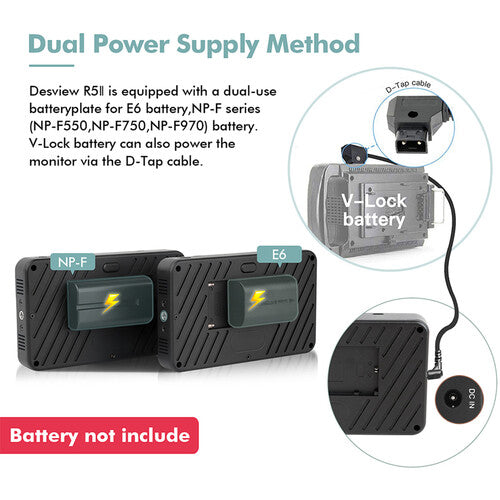

HDR support includes HGL and PQ modes, and multiple ratio anamorphic options include 1.33x, 1.5x, 1.66x, 1.79x, and 2.0x de-squeeze functions. A dual-purpose battery slot on the rear of the panel allows you to choose between using Sony NP-F style or Canon LP-E6 batteries.

Features

- Daylight-viewable, 5.5" touchscreen on-camera monitor with 800 cd/m² brightness.

- Slim, lightweight design with touchscreen IPS LCD panel.

- HDMI supports video input up to DCI/UHD 4K30.

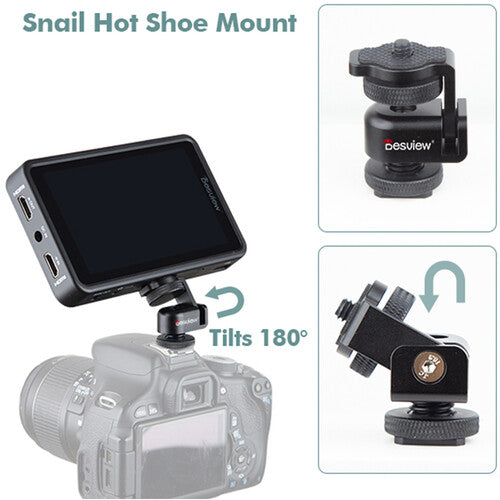

- Two 1/4"-20 mounting threads on the side and bottom of the monitor.

Touchscreen

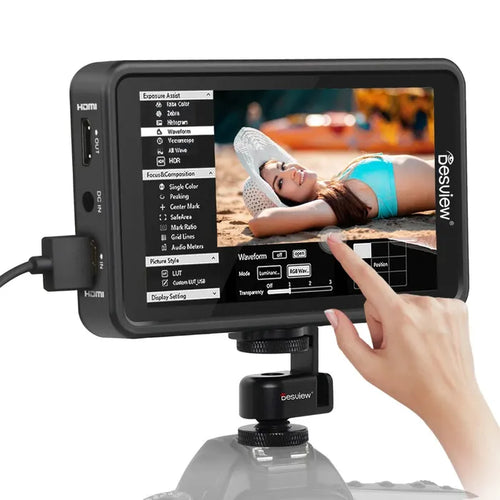

The 5.5" touchscreen panel features 1920 x 1080 resolution and a 16:9 aspect ratio. Tapping the screen with one finger can control the whole monitor, and it supports gestures such as pinch-to-zoom, which helps check every corner and detail of the image. The 800 cd/m² high brightness provides a clear display, even when filming in bright exteriors.

Display Tools

Pixel pinch-zoom
Aspect ratios: Preset and customizable
Anamorphic de-squeeze: 1.33x, 1.5x, 1.66x, 1.79x, 2.0x
Image flip: Auto and manual
Image rotation: Auto and manual
Color focus assist, with adjustable style and intensity
Peaking, with adjustable intensity
False color
Zebra, customizable
Waveform: Luma and RGB, customizable with region-of-interest highlighting
Vectorscope
RGB parade, customizable
Histogram: Luma and RGB
LUT import via USB storage device
Audio meter display
