All Interlock lenses from ZEISS offer extraordinary image quality with high contrast for technical and industrial applications. They feature an improved fixture for focus and aperture as well as a full metal housing for robustness. The lenses impress with their high image quality and precise manual focus. They are available with standard F-Mount and standard M42x1 Mount (45,5 mm Flange Focal Distance) for even more stability.

In the F-Mount version the aperture can be adjusted continuously by taking advantage of the de-click function, allowing precise exposure setting. The Interlock® familiy cover linescan sensors up to 43 mm (4k to 8k) or full frame area sensor with 24 x 36 mm (up to 42 Mpixel).

The ZEISS Interlock family consits of eleven focal lengths range from 15 mm to 135 mm. With additional focal lengths and improved fixations they complete the lenses of the ZEISS Classic family.

Compatibility

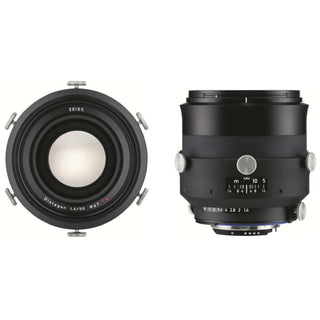

Zeiss Interlock 50mm f1.4 M42 mount Industrial lens

• Very Fast f/1.4 aperture
• Precise manual focusing
• Robust full-metal construction
• Continuous aperture setting or click stop
• For industrial cameras up to sensor sizes of 24x36 mm or 41mm line sensors
• High optical performance both at infinity and at 1:2 scale
• Features special screws to fix focus and aperture
  settings even in rough situations
