Z CAM E2 Professional 4K Cinema Camera

Z CAM E2 Professional 4K Cinema Camera

The Z CAM E2 Professional 4K Cinema Camera shoots DCI and UHD 4K at up to 160 fps, as well as HD up to 240 fps, and records to a CFast 2.0 card (not included). An optional cable enables syncing two E2 cameras together, and the system supports syncing up to 100 cameras. The camera features a 4/3" sensor with 10-bit colour support and nominal 13 stops of dynamic range with 16 stops when set to WDR. The camera supports recording in ProRes 422 in 10-bit, as well as H.265 and H.264 codecs for efficient compressing of your image.

An included Gigabit connector provides data transfer and control of the camera, and you can also use an available iOS app to control the camera and to view a live image preview. You can also control it locally by the buttons along the front edge of the camera. The camera powers from an L-series battery (not included) or via the included AC adapter.

Firmware 0.98 Update

All resolution and frame rate combinations now support ProRes 422 recording (except C8K 2.4:1)

ProRes proxy records in separate files

Preview and in-camera playback with 3D LUT banding issue fixed

External SSD recording through USB performance is improved

UVC (USB camera) bug fixes

4K Capture and Recording

You can record DCI/UHD 4K at up to 160 fps or 1080p at up to 240 fps, for up to the limit of your recording media's capacity

Triple native ISO 80/160/800

13 stops of dynamic range using Zog, and 16 stops of dynamic range in WDR mode

Built-in multi-frame noise reduction technology to produce clean footage

H.265 (10-bit colour) internal recording on CFast 2.0 card

10-bit ProRes recording in 422 HQ, 422, 422 LT, and 422 Proxy is supported

Video output through HDMI 2.0 is supported (up to DCI 4K at 60 fps, 10-bit colour, YUV 422)

Full-metal housing for efficient heat dissipation

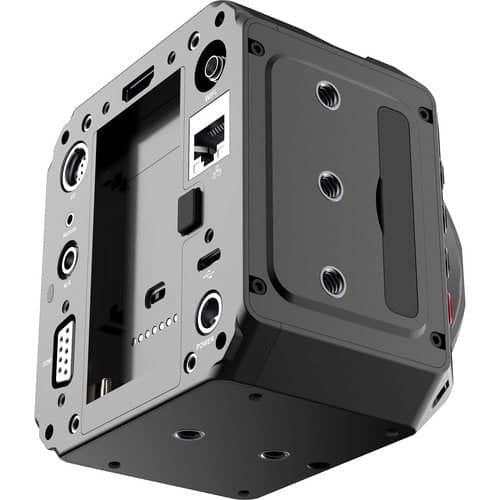

Interfaces and Expandability

USB Type-C port for live view and control via an iOS device with Z Camera app installed

The USB Type-C port can also be used for external SSD recording

Ethernet port for live view, control, and file transfer to a browser or a computer running Z CAM software

HTTP API and SDK are also available

COM (RS232) port supports UART protocol

LANC port for remote control including power on/off

Pixel-level multicamera sync can be achieved for up to 100 devices—requires optional cable(s)

iOS App

Z Camera is a mobile application for camera live preview and control through Wi-Fi/USB cable connection. It allows you to start/stop recording and adjust the

camera settings remotely, and also has advanced features on the camera live preview. It can be downloaded from the Apple App Store.

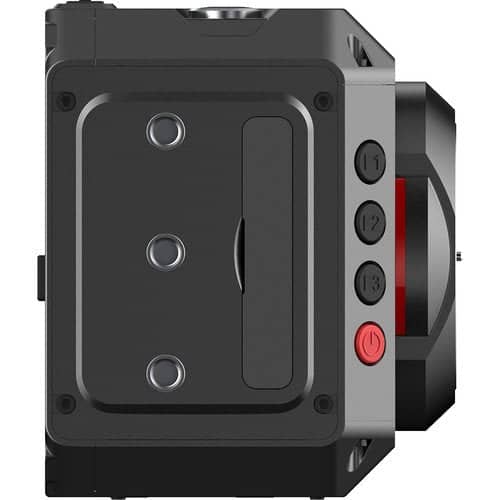

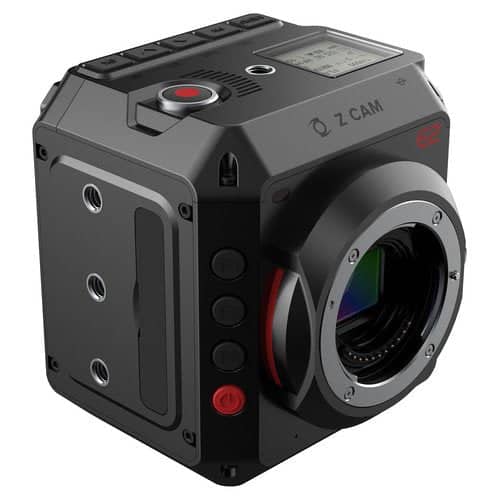

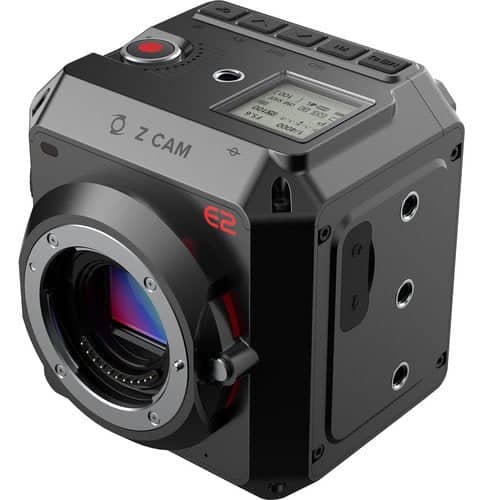

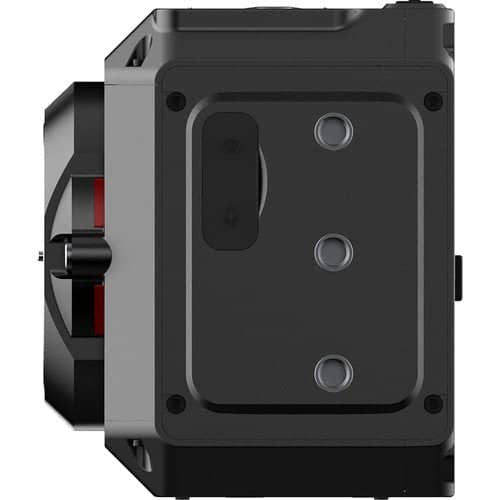

Camera Body

Made from aluminium for strength and heat dissipation

Nine threaded mounting holes around the outside chassis

Sensor plane marking for accurate distance measurements

Powers from included AC/DC adapter or optional L-series batteries

Active MFT mount
