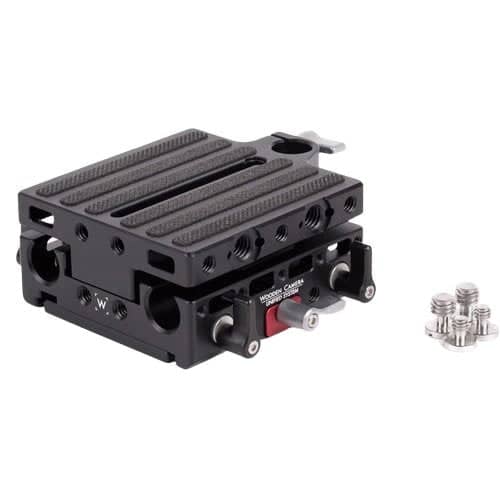

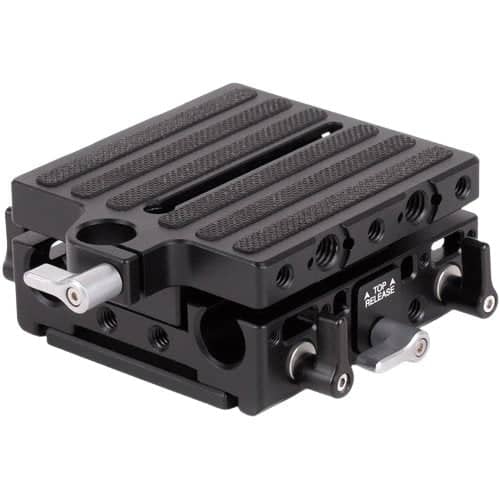

Wooden Camera Unified Baseplate (Sony FS5, Panasonic EVA1, VariCam LT, VariCam 35)

Wooden Camera Unified Baseplate (Sony FS5, Panasonic EVA1, VariCam LT, VariCam 35)

The Wooden Camera Unified Baseplate supports 15mm LWS rods at the correct lens height, and it offers a vertical 15mm rod port for incorporating the optional Unified Lens Adapter Kit. This Kit allows you to support different lens adapters from Wooden Camera, Metabones, and other brands.

The Baseplate includes the Core Unit, a Lower Quick Dovetail tripod plate on the bottom, and a Dovetail Camera Plate for the Sony FS5 and Panasonic EVA-1, VariCam LT, and VariCam 35. Other Unified Baseplate Dovetail Plates are also supported, allowing for quick swaps with a variety of cameras.

The Baseplate provides two quick release options. You can remove the Dovetail Camera Plate only and leave the Core Unit with your rod pair behind, or you can remove the Core Unit from the Lower Quick Dovetail, in which case you'll have a dovetail on the bottom of the Core Unit that's compatible with any 2060 Dovetail, Safety Dovetail, or Shoulder Rig.

The Dovetail Camera Plate features a long slot along its center that lets you secure it to the camera with multiple screws (included), which can be set up to 2.8" (70mm) apart. It also has a non-slip rubber surface that will prevent the camera from twisting.

The Dovetail Camera Plate has an ARCA Swiss standard dovetail compatible with many third-party products. It also has threaded 1/4"-20 threaded holes on the bottom for attaching to gimbals or other compatible tripod plates. The Lower Quick Dovetail has 1/4"-20 and 3/8"-16 threaded holes for attaching to tripod plates or ARRI standard bridgeplates, such as the Wooden Camera Unified Bridgeplates.

The Unified Baseplate can also be upgraded for VCT-14 compatible mounting options. Simply attach it to the optional Unified VCT Wedge Plate, which can then be mounted on the Unified VCT-14 Tripod Plate, also sold separately. The Unified Baseplate is backward compatible with Wooden Camera's original Quick Dovetails (Standard, DSLR, and Large).

Features:

Supports 15mm LWS rods at the correct lens height

Offers a vertical 15mm rod port for incorporating the optional Unified Lens Adapter Kit (for lens adapter support)

Includes the Core Unit, Lower Quick Dovetail tripod plate, and Dovetail Camera Plate

Two quick release options—remove Core Unit or remove Dovetail Camera Plate

Core Unit features a dovetail on the bottom, compatible with any 2060 Dovetail, Safety Dovetail, or Shoulder Rig

Dovetail Camera Plate features an ARCA Swiss standard dovetail and threaded holes for attaching to gimbals or other compatible tripods plates

Lower Quick Dovetail offers threaded holes for attaching to tripod plates or ARRI standard bridgeplates

Long slot along the center allows multiple screws to be attached to the camera, set up to 2.8" (70mm) apart

Anti-twist, non-slip rubber surface

Upgradable for VCT-14 compatible mounting options

Additional Lower Quick Dovetail and Dovetail Camera Plates can be purchased for quick swap capability

Backward compatible with original Wooden Camera Quick Dovetail
