Wooden Camera D-Box and B-Box System (Sony Burano)

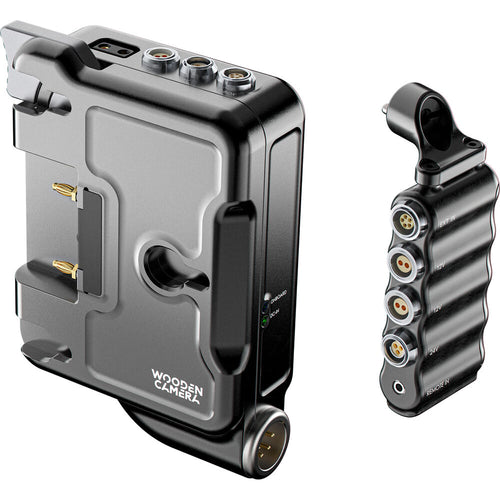

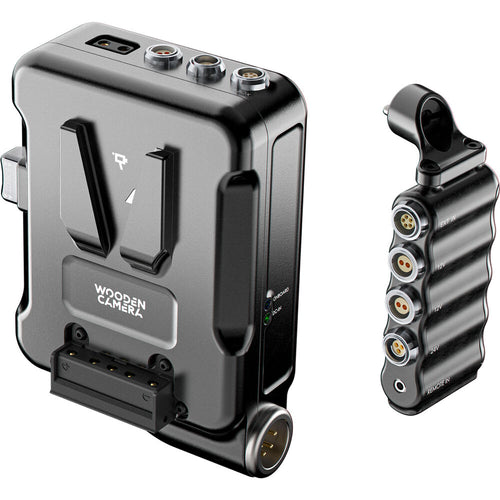

Extend the power output options of your Sony Burano cinema camera with this D-Box + B-Box System Bundle from Wooden Camera. The bundle includes the D-Box power distribution unit with a battery plate and the B-Box power extension unit. A remote cable and a link cable are included with the B-Box.

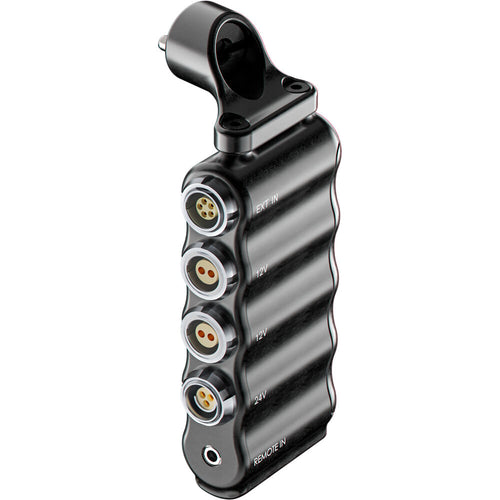

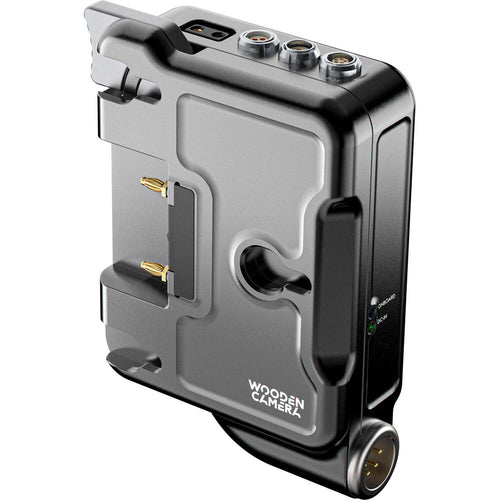

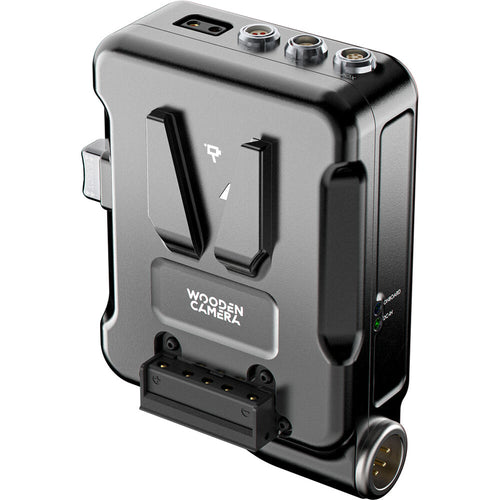

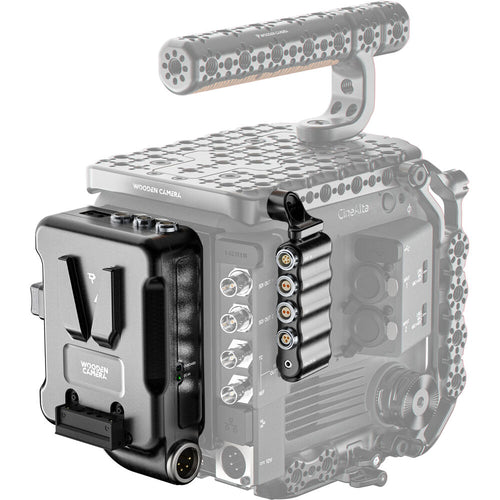

The D-Box provides 12V 2-pin, D-Tap, and 24V 3-pin ports to output power for the camera and accessories from a battery, and it supports hot swapping when using the DC input. The B-Box connects to the D-Box with the link cable and adds two 12V 2-pin ports and a 24V 3-pin port that can be used with run/stop communication using the included remote cable. The B-Box mounts onto an optional top plate using the included side mount.

Additional Features

The box provides power distribution for the Sony Burano cinema camera.

Simultaneously active output for D-Tap and Lemo ports.

Expands selection of accessory ports, and enables connection of an on/off trigger, AC power supply, etc.

Tool-free installation and cable-free interface

When used with an AC power supply, the box maintains power to the camera and accessories while changing the camera battery.

Compatible with the B-Box expander module

Key Features:

D-Box Power Distribution Unit

B-Box Power Distribution Extension Unit

Remote & Link Cables

2-pin, 3-pin, D-Tap & Remote Ports

What's in the Box:

Wooden Camera D-Box and B-Box System (Sony Burano)

Wooden Camera B-Box for Sony Burano

Wooden Camera B-Box Bolt-On Mount for Sony Burano

Wooden Camera Remote Cable for Sony Burano B-Box

Wooden Camera B-Box Link Cable for Sony Venice, Venice 2, and Burano
