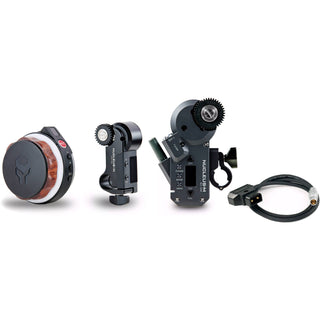

Tilta Nucleus-Nano: Wireless Lens Control System with Nucleus-M Motor ( P-Tap to 7-pin cable included WLC-T03-PTAP-7P)

Paired with the Nucleus-M motor, this version of the Nucleus-Nano Wireless Lens Control System from Tilta allows you to control stiffer lenses thanks to the high torque of the Nucleus-M. The Nucleus-Nano system is designed for use with handheld gimbals. A micro-USB cable is included for connecting the motor to most gimbals in order to power it, and a dedicated cable is also included specifically for the DJI Ronin-S gimbal.

A handwheel attachment adapter is supplied for securing the handwheel to the side of the Ronin-S or the Tilta Gravity G2X gimbal, and a second one is provided for attachment to the original Zhiyun CRANE gimbal (Tilta has confirmed that it may be compatible with other CRANE gimbals, but it hasn't been tested with them). The bundle also comes with two adjustable gear rings for photo lenses. All other required mounting and power accessories are bundled in the kit.

Tilta Nucleus-M FIZ Lens Control Motor

The compact Tilta Nucleus-M FIZ Lens Control Motor features an integrated motor drive, eliminating the space of a separate drive box and enabling a quicker setup. Power the motor using a separately available D-Tap cable and power source, or daisy-chain to another motor using a 7-pin cable.

The Nucleus-M wireless motor includes a cine standard 0.8 Mod drive gear and a 19mm rod adapter with a bushing for mounting onto a 15mm rod. The motor features automatic or manual calibration, a display window, and high, medium, and low torque settings.

Features

• Brushless motor with an integrated motor drive
• Cine-lens standard 0.8 Mod, 35-tooth, 32-pitch gear
• Motor clamps onto 19mm or 15mm rods (with included bushing)
• Power via separately available D-Tap cable or daisy-chain to additional motors
• Automatic and manual calibration
• For focus, iris, or zoom control
• High, medium, and low torque settings
• Status display window

Tilta Nucleus-Nano Wireless Focus Hand Wheel Controller

Pair this Nucleus-Nano Wireless Focus Hand Wheel Controller from Tilta with the Nucleus-Nano Motor to wirelessly control the focus of most DSLR, mirrorless, or cine-style lenses.

The large Hand Wheel responds with no delay as it wirelessly controls the separately available Nucleus-Nano motor from up to 300' away via 2.4 GHz Wi-Fi, and it lasts up to six hours on a single 3.7V 14500 lithium-ion battery. You can also perform run/stop functions and set hard A and B limits with the buttons on the wheel for more control over your camera and lens.

The Hand Wheel is constructed with aluminum, plastic, rubber, and a sleek rosewood-lined handle for comfort and style. It can mount on a stand, rig, or gimbal such as the Gravity G2X with a rosette connector. One separately available 14500 lithium-ion battery is required to use the Hand Wheel.

• Wireless focus wheel for DSLR, mirrorless, or cine-style lenses
• Large, rosewood-lined wheel for style and comfort
• Connect wirelessly to Nucleus-Nano motor from up to 300' line-of-sight range via 2.4 GHz Wi-Fi
• Powers via separately available 14500 lithium-ion battery for 6-hour operating time
• Use start/stop function and set A/B limits with buttons on controller
• Connects to rigs, arms, or gimbals with a rosette mount
• Compatible with Nucleus-Nano Focus motor

Tilta Baseplate with 15mm LWS Rod Clamp for 95mm Lens Diameter

Attach this Tilta Baseplate with 15mm LWS Rod Clamp to the base of your camera and attach a separately available 15mm rod to the rod clamp. The Nucleus-Nano motor can then attach to the rod and provide focus control. The size of the plate and the spacing of the rod clamp are designed to place your motor gear against the focus gear of lenses with a 95mm diameter.

Tilta Nucleus-Nano 12V Ronin-S To 5V Micro-USB Motor Power Cable

This Tilta Nucleus-Nano 12V Ronin-S To 5V Micro-USB Motor Power Cable allows you to power your motor from the DJI Ronin-S 12V/2A power output port.

Tilta Nucleus-Nano Hand Wheel Adapter for Zhiyun Crane 1

Mount your Nucleus-Nano hand wheel to the handle of the Zhiyun Crane 1 with this Nucleus-Nano Hand Wheel Adapter from Tilta. This sturdy aluminum and steel adapter clamps to the Crane's handle and is secured with a locking lever. The hand wheel attaches to the adapter with a screw.

Tilta Nucleus-Nano Handwheel Attachment Plate for DJI Ronin-S/Gravity G2X

Attach your Nucleus-Nano handwheel to a Gravity G2X or DJI Ronin-S gimbal with this Nucleus-Nano Handwheel Attachment Plate from Tilta. The adapter attaches to the Ronin-S with one of the gimbal's M4 screws, and it attaches to a rosette on the Gravity G2X with the included M6 screw. When attached to the gimbal, the handwheel slides into the plate and is tightened with the locking lever.

Tilta Nucleus-Nano 14500 Battery Charger III

Use the Nucleus-Nano Battery Charger III from Tilta to charge one 145000 battery for your Nucleus-Nano focus system. This single charger features a detachable USB Type-A charging cable and protection against short-circuiting.

Tilta Nucleus-M D-Tap to 7-Pin Motor Power Cable

This 23" Nucleus-M D-Tap to 7-Pin Motor Power Cable from Tilta is designed to power your Nucleus-M lens control motor using a D-Tap power source.

Key Features

• Focus/Zoom Control System for Gimbals
• High-Torque Nucleus-M Motor
• Nucleus-Nano Wireless Focus Handwheel
• Power Cables for Connection to Gimbals
• Handwheel Adapters for Select Gimbals
• Batteries, Charger & Other Accessories
• Soft Case
