Tilta Nucleus-M II Ultimate Kit

The Tilta Nucleus-M II Wireless Lens Control System Ultimate Kit provides advanced, four-channel lens control for cine-style shooters. Compatible with first-gen Nucleus-M components, this enhanced version features more reliable transmission, greater precision, a 2.4" display, updated algorithms, and L-series battery power.

Tilta Nucleus-M II: Even More Control in Your Hands!

Introducing the Nucleus-M II Wireless Lens Control System

Ultimate Kit

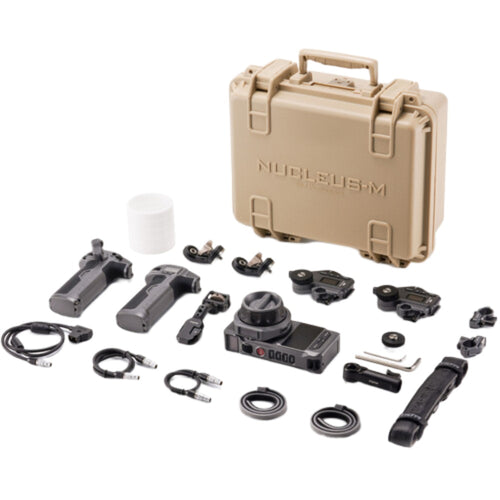

This Nucleus-M II ultimate kit comprises a FIZ handwheel controller, lanyard, ARRI rosette adapter, one 0.5 and two 0.8 MOD gears, one electronic focus and five standard focus disks, two motors, right and left handgrips, 15 and 19mm rod mounts, baby pin and hand unit monitor mounts, 7-pin and D-Tap cables, and a waterproof hard case that protects the system during transport and storage.

Core Upgrades

This updated system features seamless integration with the first-generation Nucleus-M, eliminating any learning curve for existing Nucleus-M users. It retains the damping adjustment and menu shortcut layout of the original version.

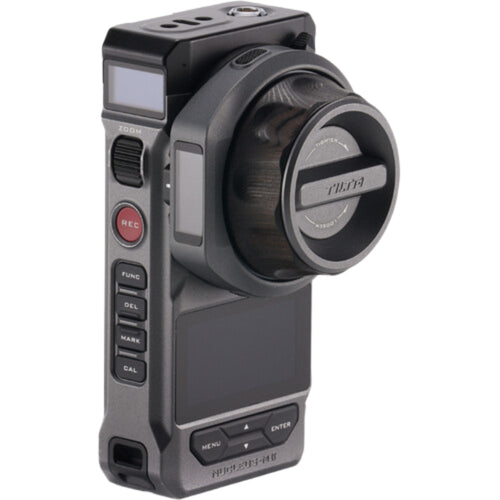

Handwheel Unit

The handwheel unit now features adjustable tension, built-in lens mapping, and clear focus, iris, and zoom information displayed in up to four different locations.

Four control options now include the wheel and a rocker, slider, and dial.

Control settings like white balance, ISO, and shutter speed for select cameras.

Electronic Marking Disk

The Nucleus-M II features a new electronic marking disk that lets execute precise focus pulls even in lower light levels.

This detachable ring can be removed to return to your physical focus marks.

Larger 2.4" Touchscreen Display

Use the new 2.4" colour touchscreen to quickly access controls like focus, aperture, ISO, and more.

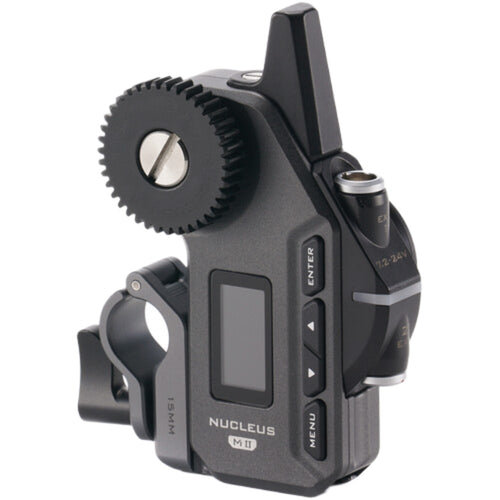

Redesigned Lens Motors

The redesigned lens motors now offer a streamlined user interface, high torque, colour-coded LED indicators, and a compact form that is ideal for gimbal, handheld, and drone use.

Updated Algorithms

The Nucleus-M II's new PID 2.0 (Proportional Integral Derivative) algorithm now offers a fast 0.02 second response time with smooth, stutter- and delay-free adjustments.

When used with the handwheel, you can now control up to four channels.

It can be paired effortlessly with stabilisers like the DJI RS 2, reducing your setup time.

The modular design lets you quickly replace gears.

This kit includes both 15 and 19mm single-rod mounts.

Professional Design

The Nucleus-M II offers not only focus, iris, and zoom, but also a fourth channel used for geared filters like Tilta's variable ND for the Mirage Pro Matte Box.

The ND control lets you make real-time exposure adjustments from a distance, a handy feature for capturing gimbal, stabiliser, handheld, or complex dolly shots.

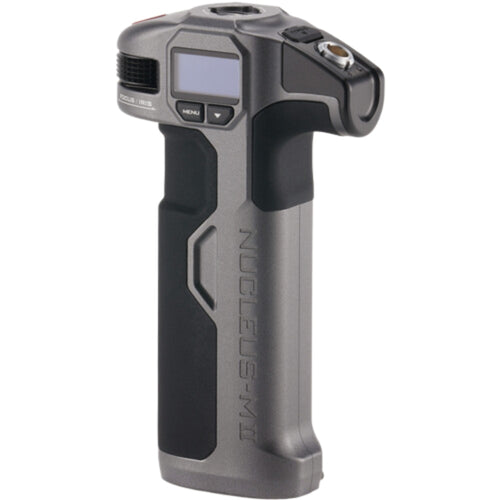

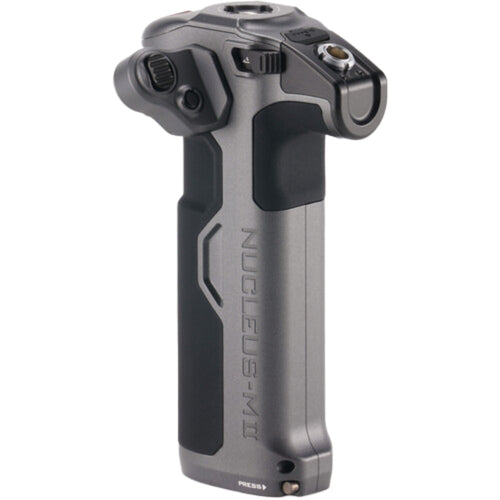

Ergonomic Handgrips

You can configure the ergonomic handgrips for maximum comfort and easily switch between the primary and secondary controls.

Set up the Nucleus-M II as a top handle, in handheld mode, or in a stabiliser configuration.

Sony L-Series Type Compatibility

The handwheel unit is powered using widely available Sony L-Series type batteries that you may already have in your kit, providing long runtimes.

Settings Presets

The Nucleus-M II handwheel controller can store up to 128 data presets, letting you quickly recall settings with a touch.

Power Loss Protection

Power loss protection maintains your Mark point and Rang memory setting, even after an outage.

Multi-Point Collaboration

The Nucleus-M II supports multi-control adjustments for both camera and lens motor settings, letting solo operators or teams tweak each FIZ parameter.

Works with a Wide Range of Ecosystems

This system works with both Tilta and DJI ecosystems for seamless hand unit compatibility.

Tilta Compatibility

First-gen Nucleus M lens control motors.

Nucleus Nano lens control motors.

DJI Compatibility

Built-in DJI RS protocol lets you directly control DJI lens motors via a DJI RS stabiliser.

Configuration Options

Right or Left-Hand Use, Robust Channels

The detachable handwheel and thumb module let you easily set up the Nucleus-M II for left-hand use.

Use the included baby pin and monitor brackets to mount your system on a C-stand, camera cart, or handheld rig.

More robust channels provide a stronger, more stable signal for precise focusing.

Key Features:

4-Channel Focus, Iris, Zoom & ND Control

2.4" Touchscreen, Electronic Focus Ring

Reliable & Fast 0.02-Second Response

Handwheel, Right & Left Handgrips

Two Lens Drive Motors, 15 & 19mm Mounts

Use Handwheel on Right or Left Side

Dedicated Interference-Resistant Channel

What's in the Box:

Tilta Nucleus-M II Ultimate Kit

Nucleus-M II FIZ Hand Unit

Nucleus-M II Lens Motor

Nucleus-M II Handgrip (Left)

Nucleus-M II Handgrip (Right)

Nucleus-M II Handgrip to ARRI Rosette Adapter

Nucleus-M II Zoom Module for Handgrip

Nucleus-M II Electronic Focus Marking Disk

Nucleus-M II Follow Focus Marking Disk

Nucleus-M II Monitor Mounting Bracket for FIZ Hand Unit

Nucleus-M II Baby-Pin Adapter for Monitor Bracket

Nucleus-M II FIZ Hand Unit Lanyard

Nucleus-M II 7-Pin to 7-Pin Cable (11.8")

Nucleus-M II 7-Pin to 7-Pin Cable (19.7")

Tilta Nucleus-M II D-Tap to 7-Pin Power Cable (27.6")

Nucleus-M II 0.5 MOD Motor Gear

Nucleus-M II Motor Rod Mount (15mm)

Nucleus-M II Motor Rod Mount (19mm)

Nucleus-M II Hard-Shell Waterproof Case
