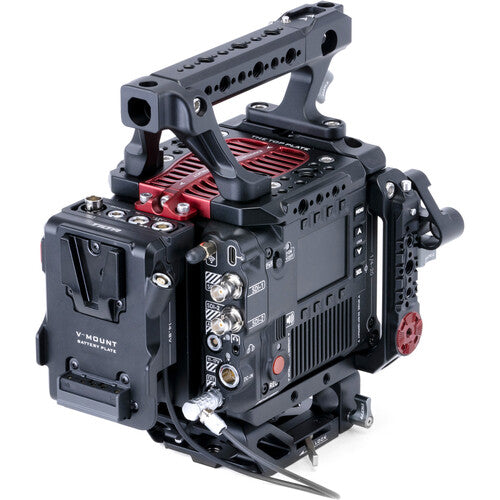

The Tilta Camera Cage for RED V-RAPTOR Advanced Kit - V Mount expands on the configuration of the Basic Kit and takes your handheld RED V-RAPTOR configuration to the next level with its included V-mount battery plate. Your connection capabilities are further increased with an advanced I/O module that adds more ports to your camera for things like timecode, genlock, and power. Outfit your RED V-RAPTOR with the Tilta Camera Cage for RED V-RAPTOR Advanced Kit - V Mount to increase its accessory mounting capabilities while maintaining access to its controls. Multiple 1/4"-20 and 3/8"-16 threads are positioned all over the cage to mount articulating arms or secondary monitors onto your RED V-RAPTOR. A front top plate attaches right above the lens of the camera and provides a built-in cold shoe adapter for the addition of shotgun microphones, among other accessories, to your gear configuration.

A side arm offers a NATO rail for additional mounting, as well as a rosette to attach a compatible side handle to the rig. Aluminium alloy and steel make up the cage's construction for a durable design that does not add significant heft to your existing setup.

Compatibility

• RED V-RAPTOR

Tilta Front Top Plate for RED V-RAPTOR

Custom designed to fit the front of your RED V-RAPTOR, the Tilta Front Top Plate expands the mounting options of your camera to accommodate accessories like secondary monitors and articulating arms thanks to multiple 1/4"-20 and 3/8"-16 threads. A built-in cold shoe mount is compatible with a shotgun microphone or wireless mic transmitter.

Aluminum alloy and stainless steel ensure a lightweight but durable construction. The plate can be used with the separately available Tilta RED V-RAPTOR full camera cage or on its own.

Tilta Rear Top Plate for RED V-RAPTOR

Expand the mounting options of your RED V-RAPTOR with this Rear Top Plate from Tilta without interfering with the ventilation of the camera. Multiple 1/4"-20 and 3/8"-16 threads, both with and without locating pins, allow you to secure articulating arms, secondary monitors, or microphones to the top of the camera.

Exhaust vents at the center of the plate mimic the V-RAPTOR's integrated ventilation system to prevent the camera from overheating. The plate does not require a full cage installed on the camera.

Compatibility

• RED V-RAPTOR

Tilta Bottom Mounting Plate for RED V-RAPTOR Camera Cage

Add this Bottom Mounting Plate to your Tilta Camera Cage for RED V-RAPTOR Advanced Kit - V Mount to provide an additional mounting option for the advanced I/O module. Four 1/4"-20 mounting threads and one 1/4"-20 thread with locating pins allow for additional accessory compatibility.

Compatibility

• Tilta Full Camera Cage for RED V-RAPTOR

• Tilta Advanced I/O Module

Tilta Left-Side Single Rod Holder for RED V-RAPTOR Camera Cage

Mount the Left-Side Single Rod Holder to your Tilta RED V-RAPTOR full camera cage to secure a single 15mm rod to the left side of your camera and attach rod-based accessories like wireless follow focus motors. A single locking knob secures the rod in place and prevents unwanted rotation. The compact form factor and lightweight design of the holder make it ideal for handheld or gimbal-mounted rigs while eliminating the need for a baseplate to mount rod-compatible accessories.

Tilta Right-Side Single Rod Holder for RED V-RAPTOR Camera Cage

Mount the Right-Side Single Rod Holder to your Tilta Camera Cage for RED V-RAPTOR Advanced Kit - V Mount to secure a single 15mm rod to the right side of your camera and attach rod-based accessories like wireless follow focus motors. A single locking knob secures the rod in place and prevents unwanted rotation. The compact form factor and lightweight design of the holder make it ideal for handheld or gimbal-mounted rigs while eliminating the need for a baseplate to mount rod-compatible accessories.

Tilta Top Handle for RED V-RAPTOR

Secure a cheese plate-style handgrip to the top of yourTilta Camera Cage for RED V-RAPTOR Advanced Kit - V Mount via four built-in 1/4"-20 screws with the Tilta Top Handle to add more mounting options to your rig. Multiple 1/4"-20 and 3/8"-16 threads on the handle allow you to mount articulating arms and secondary monitors. A single cold shoe mount and 15mm rod compatibility expand these mounting capabilities even more to shotgun microphones and transmitters. The handle is made up of aluminium alloy and steel for a durable and lightweight design.

Compatibility

• Tilta Top Plate or Front Top Plate for RED V-RAPTOR

Tilta Advanced I/O Module for RED V-RAPTOR

This Advanced I/O Module from Tilta expands the connectivity of your RED V-RAPTOR thanks to its various power, control, and video ports. An integrated extension cable connects to the camera body to increase functionality for run/stop and timecode via a 3-pin Fischer port and 5-pin port. Genlock video is available via a BNC connector.

The module can be mounted to various locations on the separately available RED V-RAPTOR full camera cage for intuitive integration. It can be powered via the 14.8V 2-pin LEMO input.

Compatibility

• RED V-RAPTOR

Tilta Battery Plate for RED V-RAPTOR (V-Mount)

Mount a larger V-mount battery on your RED V-RAPTOR with the Tilta Battery Plate to power your camera or the separately available advanced I/O module via the built-in slot. The plate includes two 14.8V 2-pin LEMO outputs, one 14.8V D-Tap output, and one USB Type-C output. The V-mount plate can be adjusted up and down within a range of 0.8". Use of the plate keeps your rig balanced and organized. The addition of an optional attachment provides additional mounting security.

Key Features

• Cage Kit for RED V-RAPTOR

• 1/4"-20 and 3/8"-16 Threads

• I/O Module, V-Mount Battery Plate

• Maintains Access to Camera Controls

• Cold Shoe Mounts, NATO Rail

• 15mm Rods, Rosette Mount

• Top Handle, Side Rod Holders

• Rear Top Plate with Exhaust Vents

• 15mm Baseplate

• Aluminum and Steel Construction
