RED V-RAPTOR 8K S35 Starter Pack (including batteries)

Get started capturing beautiful S35 footage with the RED V-RAPTOR 8K S35 Starter Pack (including batteries). This bundle pairs the 8K Super35-format V-RAPTOR camera with a selection of key components, including one high-capacity RED 2TB PRO CFexpress 2.0 memory card. The pack also includes a DSMC3 RED Touch 7" LCD monitor, a CFexpress card reader, a 3' EXT-to-timecode cable, and two V-RAPTOR Wing Grips. A power supply is included with the camera, as well as two MICRO-V batteries and one dual charger. Read more below about each item in this pack.

Key Features

• V-RAPTOR 8K S35 DSMC3 Camera

• DSMC3 RED Touch 7" LCD Monitor

• 1 x High-Capacity 2TB PRO CFexpress Card

• 2 x REDVOLT MICRO-V Batteries

• 2 x V-RAPTOR Wing Grips

• CFexpress Card Reader

• Dual V-Mount Charger

• 3' EXT-to-Timecode Cable

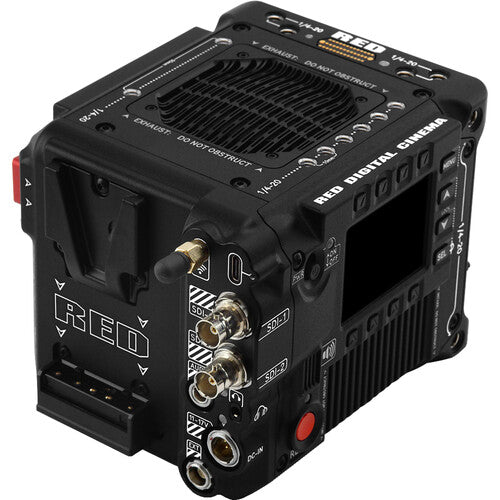

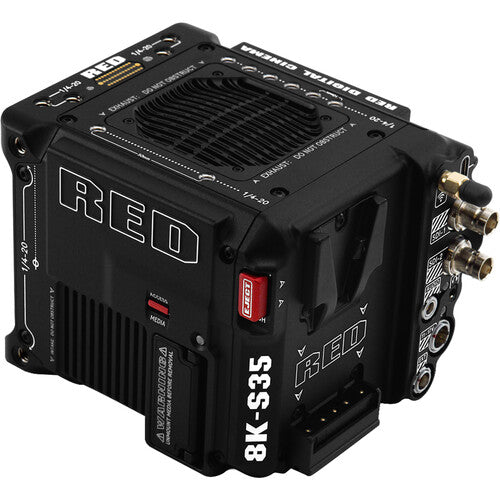

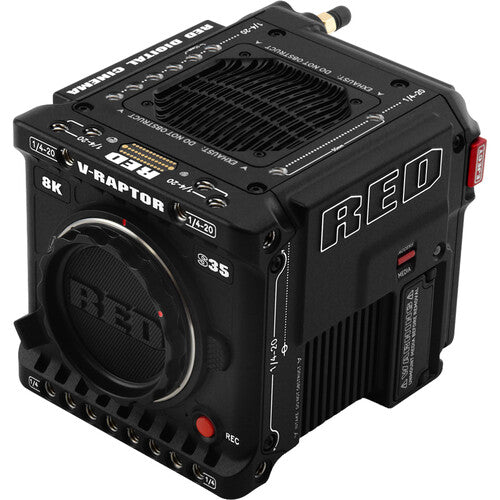

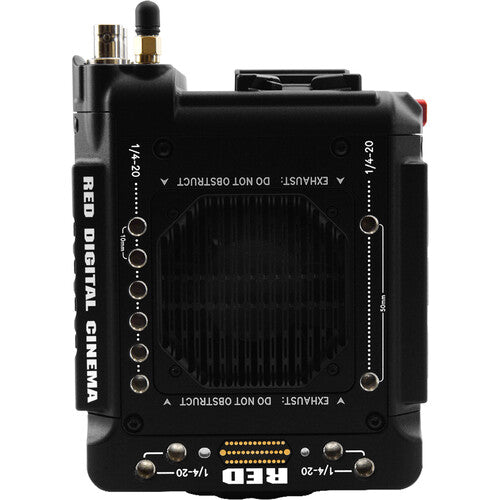

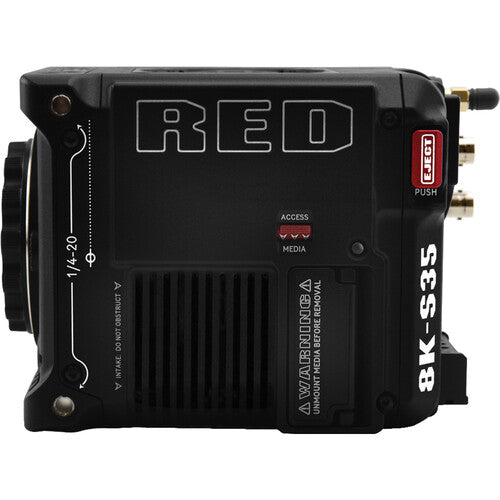

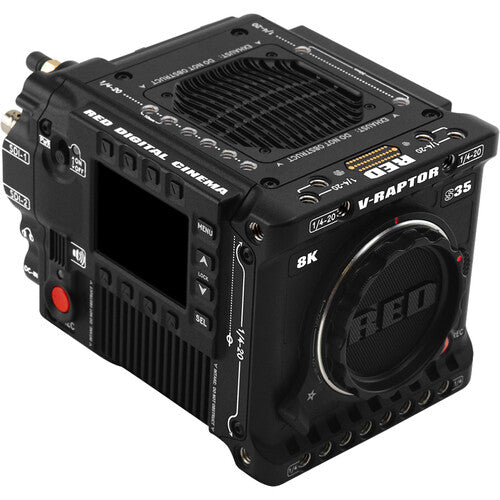

RED DIGITAL CINEMA V-RAPTOR 8K S35 Camera (Canon RF)

Choose 8K Super35 capture for your productions with the black V-RAPTOR 8K S35 Camera, RED DIGITAL CINEMA's newest DSMC3 model that incorporates an 8K, 35.4MP S35 CMOS sensor. With 16.5+ stops of dynamic range, speedy cine-level scan time, and optimal low-light performance, the V-RAPTOR 8K S35 is ready to bring RED quality imaging to your Super35-format imaging. Its multi-format recording options include 8/7/6/5/4/3/2K, with REDCODE Raw, Apple ProRes, anamorphic, and proxy selections.

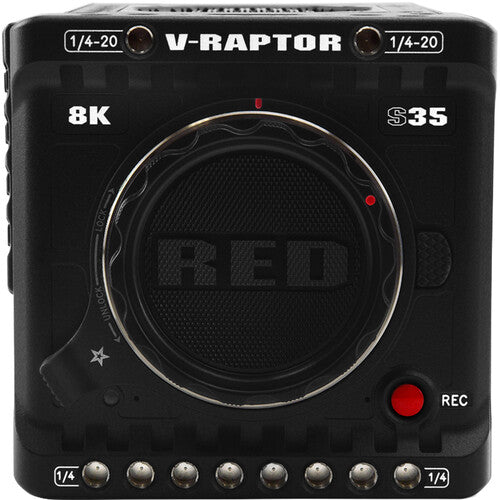

The V-RAPTOR 8K S35's active RF lens mount enables you to adapt your capture for each project using a wide array of pro cine or still photo lenses and can be used with an EF lens adapter. Phase-detect and contrast autofocus is available when used with compatible lenses. This combination of Super35 capture, lens versatility, autofocus (for select lenses), and the compact DSMC3 form enables the V-RAPTOR 8K S35 to fit seamlessly into your wildlife and broadcast projects or other shoots involving lots of handheld work and company moves to multiple locations.

Super35 Sensor and 8K Capture Options

35.4MP CMOS S35 Sensor

• The V-RAPTOR 8K S35's Super35mm 35.4 MP CMOS sensor provides a practical alternative to full-frame capture that is particularly suitable for in-the-field productions while still offering the high resolution and shallow depth of field beloved by cine-style shooters.

• 16.5+ stops of dynamic range give the V-RAPTOR 8K S35 the ability to capture stunning images in any environment you explore

Up to 8K Capture

• A wide range of resolutions and frame rates enables the V-RAPTOR 8K S35 to capture up to 120 fps in 8K, 240 fps in UHD 4k, and 480 fps in 2K, with anamorphic options available in 6K, 7K, and 8K.

• The 8K resolution provides the ability to crop multiple shots in a lower resolution from a single 8K take.

Wide Array of Compatible Lenses

• Super35 lens choices provide a more compact form while offering a wide range of zoom and prime lenses for both broadcast and cine-style productions.

• The locking Canon RF lens mount supports select RF to Canon EF-mount adapters, further expanding your lens selection.

• Phase-detect and contrast autofocus is available with compatible lenses.

Applications

The compact form, availability of a wide array of compatible lenses, and the classic Super35 look make the V-RAPTOR 8K S35 ideal for wildlife, broadcast, and cine-style productions.

Compact DSMC3 Form

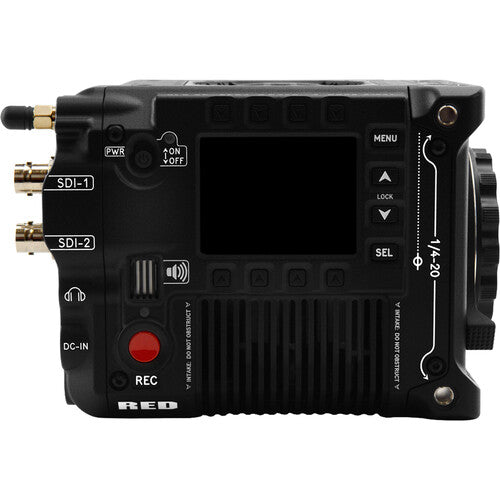

Side Control Panel

• Conveniently located on the assistant's side, an easy-to-navigate, 2.4" LCD panel provides comprehensive control, including status updates, in-camera format selection, and customisable buttons.

• The V-RAPTOR 8K S35's compact and durable DSMC3 form features micro-V battery compatibility, several monitor options, CFexpress card capture, and a modular design that, when paired with a compact Super35 lens, creates a portable, ergonomic form.

Interfaces

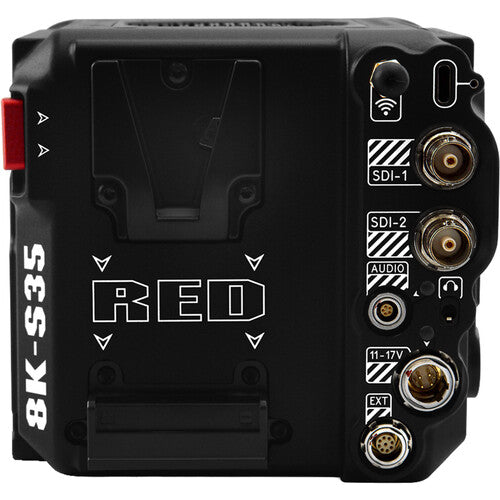

• Built-in interfaces include dual 12G/6G/3G-SDI video outputs, genlock, timecode, GPIO, and RS-232 ports.

• Wireless 1080p video preview and camera control are available via dual-band Wi-Fi.

• A 5-pin audio port provides a dual channel mic/line input with +48V phantom power.

Power Options

Power the V-RAPTOR 8K S35 camera using the integrated battery interface and a Micro V-mount battery or the included AC power adapter.

RED DIGITAL CINEMA 2TB PRO CFexpress 2.0 Type B Memory Card

Certified for RED V-RAPTOR camera systems, the 2TB PRO CFexpress 2.0 Type B Memory Card from RED offers protection from overheating, operates with a reduced power draw, and helps to ensure high bitrate captures. This card can capture all frame rates and resolutions, including Full HD and raw 4K, 6K, 8K, and 12K video. It features a capacity of 2TB and uses the PCIe 3.0 x2 bus to deliver maximum read/write speeds of 800 MB/s.

Designed and manufactured by Angelbird for RED, the PRO CFexpress 2.0 Type B series has been engineered with protection against shock, dust, water, temperature extremes, and x-rays, and has an MTBF (Mean Time Between Failures) rating of 2.4 million hours. Included is lifetime data protection and an activation code for the full limited 3-year warranty. To receive the full limited warranty, the product needs to be registered on the Angelbird Personal Service Portal within 30 days after purchase. If not registered within this period, the market-specific legal guarantee period comes into force.

Compatibility

• RED V-RAPTOR 8K VV cinema camera

• RED CFexpress card reader

General Features

• 2TB capacity

• Max Read/Write Speed: 800 MB/s

• Stable Stream

• CFexpress 2.0 Type B

• For photos, HD videos, and raw 4K to 12K resolutions

• Y1 processor designed for raw video and photo content

• Adaptive Power Management helps preserve battery life and card endurance

• Host Power Loss Protection

• Advanced Thermal Management helps protect the card, camera, and stored content

• Free data recovery service at the hardware and software levels

• Sticker Free

• Mean Time Between Failures of up to 2.4 million hours

• Temperature Sensor, TRIM, ECC, EMS Protection, Built-In Cache, and SMART

Overheating Protection

With Angelbird's adaptive thermal management system, you can feel confident that your data is protected from the threat of potential damage due to camera overheating during long shoots.

AV Pro Line Offers Quality and Performance

The AV Pro product line pushes the limits of speed and performance in the safest possible way. All AV Pro media solutions consider the real-world media needs of the professional creative and feature Stable Stream performance technology, which is ideal for high- definition, lossless (drop-fee) video recording and smooth data processing.

The entire lineup of Angelbird's AV Pro media solutions is built with rock-solid performance protections such as, shock, dust, x-ray, and splash-water proofing, and are tested for safe operating temperatures at extremes of -13 to 185°F.

Free Professional Data Recovery Service

Angelbird offers free professional data recovery service on all its products. In lieu of a self-service software download, Angelbird provides a staff of professionals who will evaluate the issue and safely attempt a secure data-recovery in their lab along with complementary express shipping. This service covers media that has encountered physical damage and/or software issues such as data or file corruption. Furthermore, Angelbird extends a non-disclosure agreement to their customers to ensure that the privacy and confidentiality of their content is also protected.

RED DIGITAL CINEMA CFexpress Card Reader

The CFexpress Card Reader from RED allows for the fast ingestion of the RED PRO 660GB CFexpress media card on systems that support 20 Gb/s USB 3.2 Gen 2x2. Built with a USB Type-C interface, power is received through the USB bus, meaning that no external power sources are required. The reader features a write-protect switch on the back to protect your data.

Compatibility

RED PRO 660GB CFexpress card

RED DIGITAL CINEMA REDVOLT MICRO-V Battery (98Wh, V-Mount)

Power your KOMODO V-RAPTOR camera with the MICRO-V Battery from RED DIGITAL CINEMA. This 98Wh battery features a compact, lightweight form, up to 12A draw, and data transmission of the remaining time and select accessory information. Designed in conjunction with battery-maker Core SWX, the compact REDVOLT BP is compatible with select other cameras when used with a full-size V-mount adapter.

Compatibility

RED V-RAPTOR camera

Select other cameras using a full-size V-mount adapter

Lightweight, Compact Form

Ideal for handheld capture

Weighs just over 1 lb and measures less than 4" wide

In-Camera Display

Communicates with your V-RAPTOR and select accessories to offer in-camera status display

RED DIGITAL CINEMA Compact Dual Battery Charger (V-Mount)

Charge two V-mount batteries for use with a DSMC3 cinema camera such as the V-RAPTOR 8K VV while on location with the RED Compact Dual V-Mount Battery Charger. Taking advantage of the same technology built into the larger fleet chargers, this compact charger can charge two V-mount REDVOLT MICRO-V or REDVOLT XL-V batteries at a 3A rate. Designed and manufactured in partnership with Core SWX, the charger can charge two REDVOLT MICRO-V 98Wh batteries in less than five hours. A power cable is included.

Compatibility

RED REDVOLT MICRO-V batteries

RED REDVOLT XL-V batteries

Most V-mount batteries

RED DIGITAL CINEMA DSMC3 RED Touch 7.0" LCD Monitor (Direct Mount)

Add a direct-mount onboard monitor to your DSMC3 camera rig with this DSMC3 RED Touch 7.0" LCD Monitor from RED DIGITAL CINEMA. The RED Touch features daylight viewing, a wide 100% DCI-P3 color gamut, and touchscreen control for DSMC3 cameras, such as the V-RAPTOR 8K VV. The monitor features a high 322 ppi pixel density, 1920 x 1200 resolution, 1250:1 contrast ratio, and 1300 cd/m² brightness that combine to offer high-quality imaging.

This monitor attaches directly to your DSMC3 BRAIN using the Pogo mount, and it provides video, data, and power to the monitor from the camera. If you need to use the Pogo mount for another accessory, the monitor also features a locking USB Type-C connector that alternately allows you to pass video, data, and power to the camera. The monitor features a tilt mount that allows it to tilt 180°.

Features

• Designed for daylight viewing with 322 ppi, 1920 x 1200 resolution, and 1800 cd/m² brightness

• 1920 x 1200 resolution and wide 100% DCI-P3 colour gamut for optimal imaging

• Mounts directly onto the BRAIN using the Pogo mount

• USB Type-C connector is used for video, data, and power

• Runs SmallHD PageOS software that provides camera control

• Tilt arm with 180° rotation

RED DIGITAL CINEMA EXT-to-Timecode Cable (3')

The EXT-to-Timecode Cable enables you to input timecode to your RED DIGITAL CINEMA KOMODO camera. This cable links to the camera via its 9-pin EXT connector and measures 3' including the connectors.

RED DIGITAL CINEMA V-RAPTOR Wing Grip

Use the V-RAPTOR Wing Grip from RED DIGITAL CINEMA to create a low-profile, handheld support option for your camera. This aluminium handle's ergonomic design features both 1/4"-20 and anti-twist 3/8"-16 threads for attaching accessories. The V-RAPTOR Wing Grip can be used on either side of your camera.

Compatibility

RED V-RAPTOR DSMC3 camera only

Low-Profile Handle

Low-profile, ergonomic way to carry your camera

Accessory Mounts

Multiple 1/4"-20 and anti-twist 3/8"-16 threads
