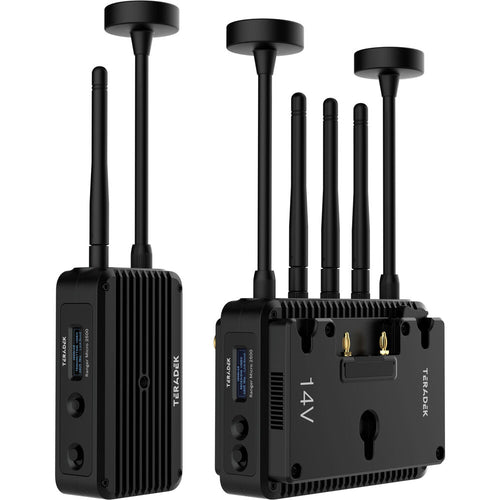

Teradek Ranger Micro 2500 3G-SDI/HDMI Wireless Transmitter/Receiver Deluxe Kit (Gold Mount)

Add a full wireless transmission kit to your rig to transmit lossless HD video up to 2500' with the Ranger Micro 2500 3G-SDI/HDMI Wireless Transmitter/Receiver Deluxe Kit from Teradek. Redesigned for broadcast, event, drone, and handheld applications, this transmitter/receiver set can input up to 1080p60 video over HDMI or 3G-SDI and transmit up to 2500' away to the receiver, which can output to HDMI or 3G-SDI. This Deluxe kit includes the Ranger Micro 2500 transmitter, Ranger Micro 2500 receiver with Gold mount plate, an external antenna array, mounting accessories, carry bags, and multiple cables, including HDMI, SDI, USB, and RP-SMA.

The set supports transmission of up to 1080p60 video to up to six receivers and features built-in AES-256 encryption that protects your video from prying eyes. You can set up the set using a desktop Launchpad software application or the Launchpad app for iOS or Android that easily connects via Bluetooth 5, which both provide a spectrum analyser, channel selection tools, and remote configuration. Each unit is powered using a 2-pin DC input, and the receiver can be powered using the included Gold mount battery plate.

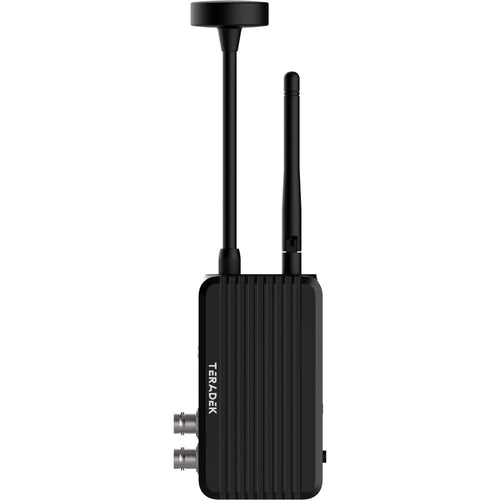

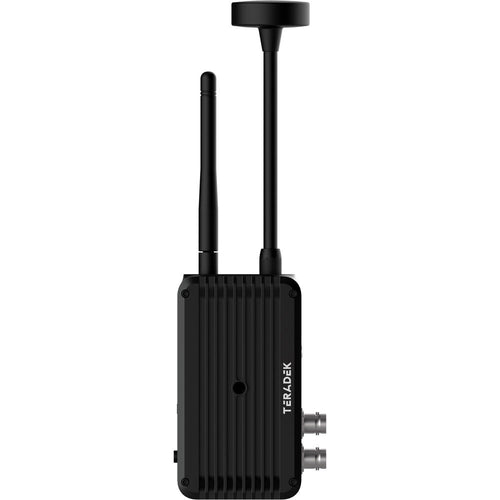

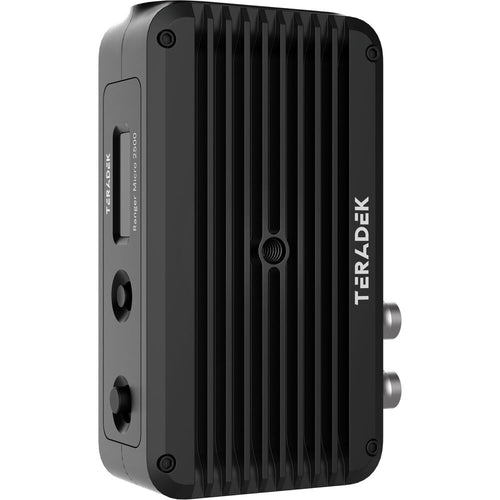

Teradek Ranger Micro 2500 3G-SDI/HDMI Wireless Transmitter

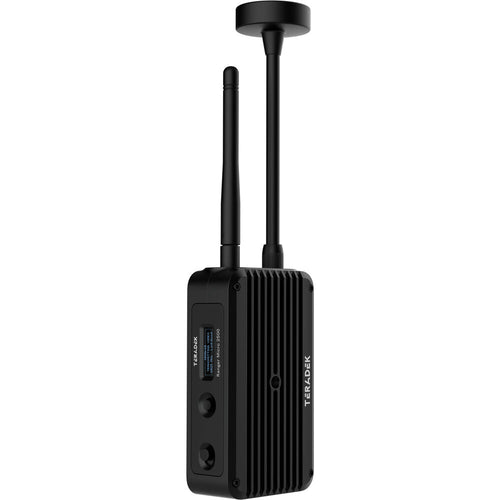

Transmit lossless HD video up to 2500' with the Ranger Micro 2500 3G-SDI/HDMI Wireless Transmitter from Teradek. Redesigned for broadcast, event, drone, and handheld applications, this transmitter can input up to 1080p60 video over HDMI or 3G-SDI with 10-bit HDR support and transmit up to 1080p60 video over a wide 4.9 to 6.4 GHz wireless range, including licensed and unlicensed bands in the 6 GHz U-NII 5 spectrum. The transmitter unit provides a powerful signal that can travel up to 2500' line of sight. It also features an SDI loop output for local monitoring, and one horizontal and one vertical N-type antenna.

The transmitter supports transmission of up to 1080p60 video to up to six receivers and features built-in AES-256 encryption protects your video from prying eyes. It can transmit visually lossless video to any Ranger series receiver with zero delay. The transmitter supports a desktop Launchpad software application or the Launchpad app for iOS or Android that easily connects via Bluetooth 5, which both provide a spectrum analyser, channel selection tools, and remote configuration.

The unit is powered using a 2-pin DC input, and there are 1/4"-20 and M3 mounting threads to mount your transmitter on a variety of cameras, cages, or rigs.

Premium Wireless Hardware

State-of-the-art hardware. Designed for professional video production. The Ranger Series is powered by Teradek's Emmy and Academy Award-winning technology for zero-delay wireless video transmission. This model boasts a maximum range of 2500', and it works seamlessly within a variety of professional broadcast, sports, and ENG applications, including handheld gimbals, drones, and shoulder-mounted production cameras.

Ranger Compatibility

Pair any combination of Ranger TX and RX together, regardless of model. That means your production can quickly scale and operate a variety of Ranger systems best suited to your environment, despite differences in transmission range. Mixed Ranger systems operate with a range of the lowest paired model. 6 GHz operation requires support on both the TX and RX.

Zero Delay

When a delay in audio and video transmission is noticeable, it's nearly impossible to offer a lifelike experience. Ranger's patented zero-delay technology solves this problem. With Ranger, your audio and video signals are transmitted with ultra-low latency, even in 1080p60, providing a visually lossless and engaging experience for your viewers.

Configure Ranger from PC or Phone

Install the Launchpad app on your macOS or Windows computer, or on iOS/Android phone

Bluetooth 5 LE connection support

Pair transmitters and receivers with the touch of a button

Measure and analyse the frequency and amplitude of a signal

View live channel strength for licensed/unlicensed bands

Monitor your live RF spectrum bandwidth

Wide Transmission Frequency Range

With the number of wireless devices on the rise, and a limited amount of frequency bands to choose from, there is little room for your signal to move without interference or disruption. But with Ranger, you have options: 5 GHz for general use, licensed band frequencies for special events, and the new 6 GHz U-NII-5 band for 12 new channels of uncongested wireless spectrum.

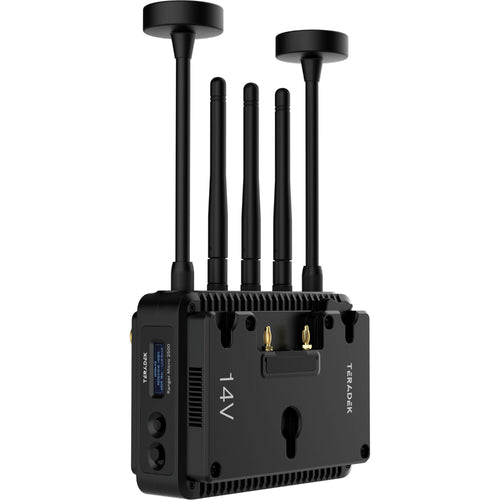

Teradek Ranger Micro 2500 3G-SDI/HDMI Wireless Receiver (Gold Mount)

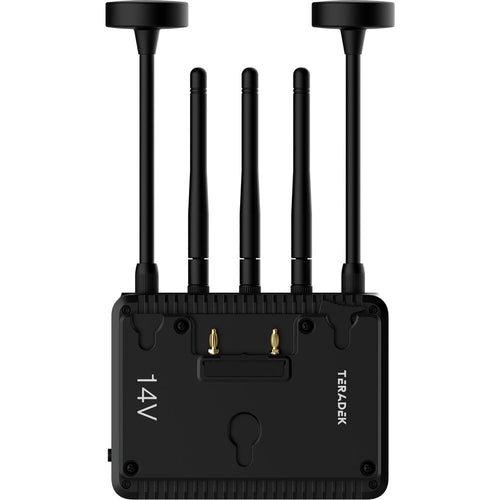

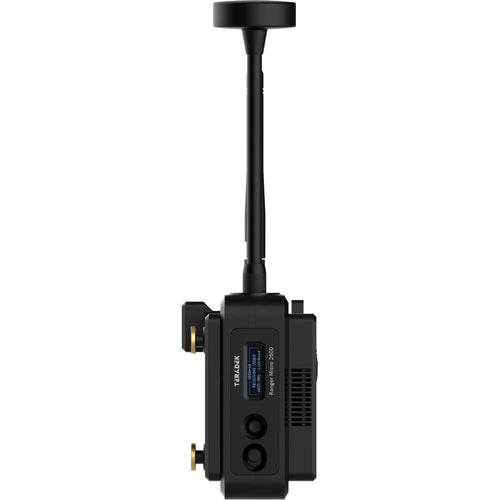

Transmit lossless HD video up to 2500' with the Ranger Micro 2500 3G-SDI/HDMI Wireless Receiver from Teradek. Redesigned for broadcast, event, drone, and handheld applications, this receiver can receive up to 1080p60 video over a wide 4.9 to 6.4 GHz wireless range, including licensed and unlicensed bands in the 6 GHz U-NII 5 spectrum, and it can output up to 1080p60 video over HDMI or 3G-SDI with 10-bit HDR support. The receiver unit supports a powerful signal that can travel up to 2500' line of sight. It also features five external antennas.

When pairing with a Ranger transmitter, this unit can receive up to 1080p60 video alongside up to five other receivers, and it features built-in AES-256 encryption protects your video from prying eyes. It can receive visually lossless video from any Ranger series receiver with zero delay. The receiver supports a desktop Launchpad software application or the Launchpad app for iOS or Android that easily connects via Bluetooth 5, which both provide a spectrum analyser, channel selection tools, and remote configuration.

The unit is powered using a 2-pin DC input or via the included Gold mount battery plate, and there are 1/4"-20 and M3 mounting threads to mount onto a variety of cameras, cages, or rigs.

Premium Wireless Hardware

State-of-the-art hardware. Designed for professional video production. The Ranger Series is powered by Teradek's Emmy and Academy Award-winning technology for zero-delay wireless video transmission. This model boasts a maximum range of 2500', and it works seamlessly within a variety of professional broadcast, sports, and ENG applications, including handheld gimbals, drones, and shoulder-mounted production cameras.

Ranger Compatibility

Pair any combination of Ranger TX and RX together, regardless of model. That means your production can quickly scale and operate a variety of Ranger systems best suited to your environment, despite differences in transmission range. Mixed Ranger systems operate with a range of the lowest paired model. 6 GHz operation requires support on both the TX and RX.

Zero Delay

When a delay in audio and video transmission is noticeable, it's nearly impossible to offer a lifelike experience. Ranger's patented zero-delay technology solves this problem. With Ranger, your audio and video signals are transmitted with ultra-low latency, even in 1080p60, providing a visually lossless and engaging experience for your viewers.

Configure Ranger from PC or Phone

Install the Launchpad app on your macOS or Windows computer, or on iOS/Android phone

Bluetooth 5 LE connection support

Pair transmitters and receivers with the touch of a button

Measure and analyse the frequency and amplitude of a signal

View live channel strength for licensed/unlicensed bands

Monitor your live RF spectrum bandwidth

Wide Transmission Frequency Range

With the number of wireless devices on the rise, and a limited amount of frequency bands to choose from, there is little room for your signal to move without interference or disruption. But with Ranger, you have options: 5 GHz for general use, licensed band frequencies for special events, and the new 6 GHz U-NII-5 band for 12 new channels of uncongested wireless spectrum.

Wooden Camera Offset Mounting Bracket for Teradek Bolt 4K LT TX

Use this Wooden Camera Offset Mounting Bracket to position your Teradek Bolt 4K LT TX in up to six different configurations on your camera rig for optimized positioning. Two captive 1/4"-20 screws attach the bracket to your camera cage. Two 1/4"-20 threads and one 3/8"-16 thread, all with locating points, can accept additional accessories like articulating arms.

Key Features:

Transmitter/Gold Mount Receiver Set

Supports 4.9 to 6.4 GHz Frequency Bands

Transmit Video up to 2500' Line of Sight

3G-SDI and HDMI Input/Output

Lossless Transmission with Zero Delay

1080p60 10-Bit 4:2:2 HDR Support

Supports Transmission to up to 6 x RXs

Pairs with all Ranger Series Devices

AES-256 Encryption

Launchpad App, Spectrum analyser

What's in the Box:

Teradek Ranger Micro 2500 3G-SDI/HDMI Wireless Transmitter/Receiver Deluxe Kit (Gold Mount)

N-Type Antenna

2 dBi Antenna

Gold Mount Battery Plate

Wooden Camera Offset Mounting Bracket for Teradek Bolt 4K LT TX

1/4"-20 Captive Screw

Limited 1-Year Manufacturer Warranty

Ranger Micro Deluxe Ship Kit

Antenna Array

RP-SMA Female Cable (4")

Ranger 6 Battery Door (Machined Anodized)

Light Stand Adapter (1/4"-20)

Shoe Adapter Mount

Flat Head Screw

Ultrathin HDMI Type A Male Cable (18")

2-Pin to D-Tap Cable (18")

12G-SDI BNC Cable (18")

USB-A 2.0 Male to USB-C Male Cable (3.3')

Carry Case XL

2-Pin 18W Power Supply with 6' Cable

Clear Self-Sealing Bag

Large Accessories Bag
