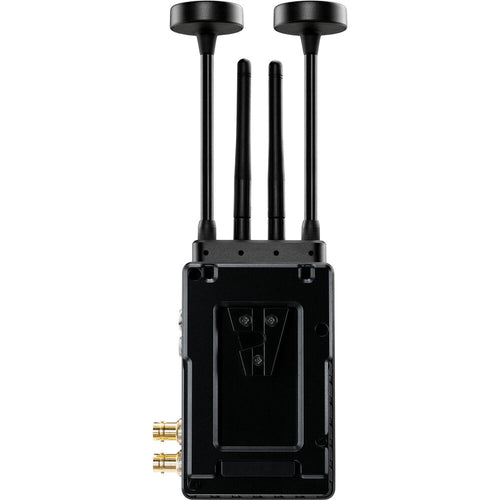

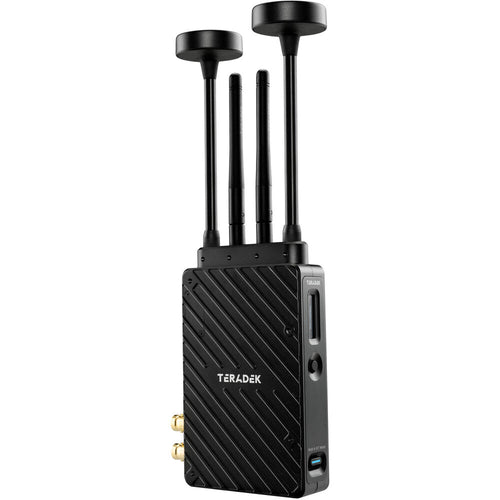

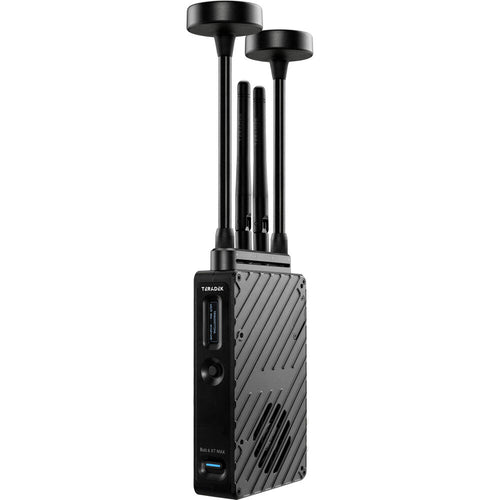

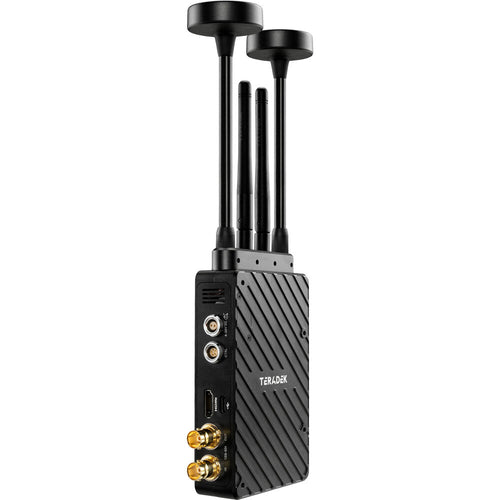

Teradek Bolt 6 XT Max 12G SDI/HDMI Wireless TX V Mount

Transmit lossless HD video up to 5000' with the Bolt 6 XT MAX 12G-SDI/HDMI Wireless Transmitter from Teradek. With a smaller and lighter form factor than the Bolt 4K model, this transmitter can input up to DCI 4K60 video over HDMI or 12G-SDI with 10-bit 4:2:2 HDR support, it features a V-mount battery plate, and this new line supports the 6 GHz wireless band, which is now freely available. It also features a 50% quieter operation with its redesigned cooling system. The transmitter unit provides a powerful signal that can travel up to a 5000' line of sight using its integrated flexible H antennas. It features a bright OLED display, and a 12G-SDI loop output, can be powered using its V-mount battery plate, and supports camera control with optional firmware via its 5-pin USB output.

The transmitter supports the transmission of up to DCI 4K60 video to up to six receivers and features improved metadata, range, and compatibility over its predecessors. Built-in AES-256 encryption protects your video from prying eyes, while noise rejection and improved long-range mode keep your video clean no matter how many devices are using the wireless spectrum. The Bolt XT MAX system also supports the transmission of timecode and start/stop triggers from the camera.

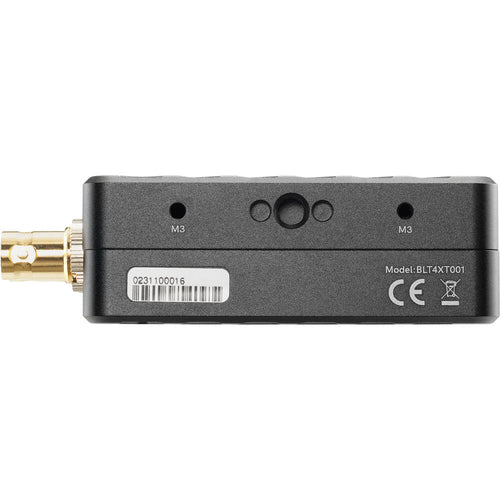

Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band. The transmitter also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyser, channel selection tools, and remote configuration. There are 1/4"-20 and M3 mounting threads to mount your transmitter on a variety of cameras, cages, or rigs.

Key Features:

Supports New 6 GHz Frequency Band

Transmit Video up to 5000' Line of Sight

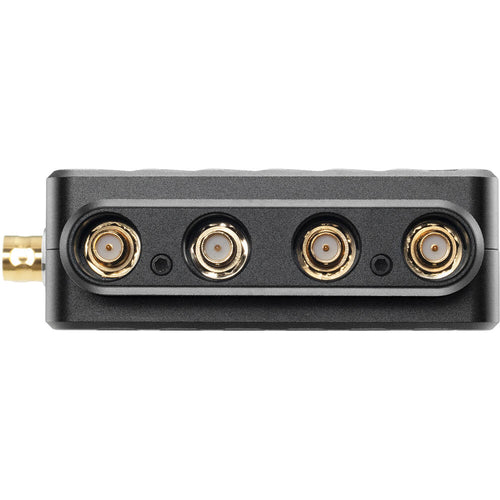

12G-SDI and HDMI Input, 12G-SDI Output

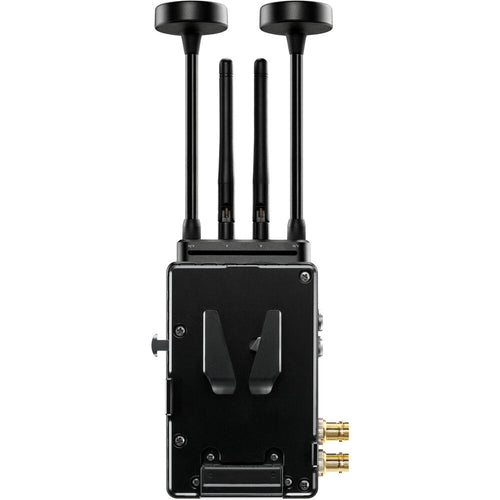

V-Mount Battery Plate

Smaller, Lighter, 50% Quieter

5-Pin USB Output for Camera Control

Transmit to up to 6 RXs

Also Compatible with Bolt 4K 5G Devices

AES-256 Encryption, 2 Antennas

Bluetooth Mobile App, Spectrum Analyser

What's in the Box:

Teradek Bolt 6 XT Max 12G SDI/HDMI Wireless TX V Mount

V-Mount Battery Plate

2-Pin Power Cable (18")

USB Type-A to USB Type-C Cable (3')

Ultrathin USB Type-A to HDMI Type-A Cable (18")

AC Adapter with Cable (6')

Standard Antenna

Mushroom Antenna

Battery Cover

Screw
