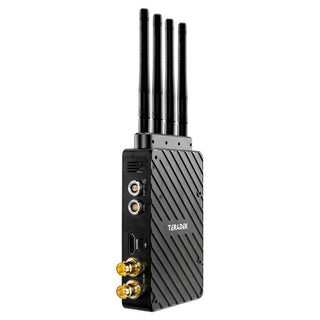

Teradek Bolt 6 XT 750 12G SDI/HDMI Wireless TX V Mount

Transmit lossless HD video up to 750'(228m) with the Bolt 6 XT 750 12G-SDI/HDMI Wireless Transmitter from Teradek. With a smaller and lighter form factor than the Bolt 4K model, this transmitter can input up to DCI 4K60 video over HDMI or 12G-SDI with 10-bit 4:2:2 HDR support, and this new line supports the 6 GHz wireless band, which is now freely available. It also features a 50% quieter operation with its redesigned cooling system. The transmitter unit provides a powerful signal that can travel up to a 750'(228m) line of sight. It features a bright OLED display and 12G-SDI loop output, can be powered using its V-mount battery plate, and supports camera control with optional firmware via its 5-pin USB output.

The transmitter supports the transmission of up to DCI 4K60 video to up to six receivers and features improved metadata, range, and compatibility over its predecessors. Built-in AES-256 encryption protects your video from prying eyes, while noise rejection and improved long-range mode keep your video clean no matter how many devices are using the wireless spectrum. The Bolt XT system also supports the transmission of timecode and start/stop triggers from the camera.

Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band. The transmitter also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, both providing a spectrum Analyser, channel selection tools, and remote configuration. There are 1/4"-20 and M3 mounting threads to mount your transmitter on a variety of cameras, cages, or rigs.

Key Features:

Supports New 6 GHz Frequency Band

Transmit Video up to 228m Line of Sight

12G-SDI and HDMI Input, 12G-SDI Output

V Mount Battery Plate

Smaller, Lighter, 50% Quieter

5-Pin USB Output for Camera Control

Transmit to up to 6 RXs

Compatible with all Bolt 4K 5G Devices

Bluetooth Mobile App, Spectrum Analyser

What's in the Box:

Teradek Bolt 6 XT 750 12G SDI/HDMI Wireless TX V Mount

V-Mount Battery Plate

2-Pin to D-Tap Power Cable (18")

USB 2.0 Type-A Male to USB Type-C Male Cable (39")

HDMI Type A Male Cable (18")

BNC 12G-SDI Cable (18")

AC Adapter with Cable (6')

Antenna

Battery Cover

Screw
