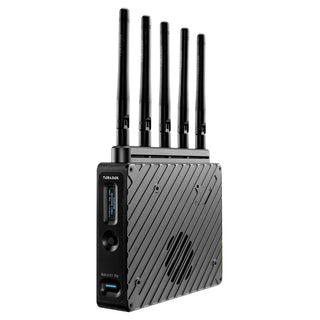

Teradek Bolt 6 XT 750 12G SDI/HDMI Wireless RX Gold Mount

Receive lossless HD video from up to 750'(228m) away along the line of sight with the Bolt 6 XT 750 12G-SDI/HDMI Wireless Receiver from Teradek. The unit can wirelessly receive up to DCI 4K60 video with 10-bit HDR support, and it features a bright OLED display and both HDMI and 12G-SDI outputs. This new line supports the 6 GHz wireless band, which is now freely available. It also supports camera control with optional firmware via its 5-pin USB output. The unit comes with a Gold mount battery plate, so it can be powered using an optional high-capacity Gold mount battery.

The receiver supports transmissions of up to DCI 4K60 video from any Bolt 6 or Bolt 4K series transmitter, which can simultaneously transmit to up to six receivers and has an improved long-range mode. It features improved metadata, range, and compatibility over its predecessors. The built-in AES-256 encryption and RSA 1024 key pairing protect your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the wireless spectrum. The Bolt 6 XT system also supports the transmission of timecode and start/stop triggers.

Though it can receive visually lossless video from any Bolt 4K series transmitter with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band. The transmitter also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, both providing a spectrum Analyser, channel selection tools, and remote configuration. There are 1/4"-20 and 3/8"-16 mounting threads to mount your receiver on a variety of monitors or rigs.

Key Features:

Supports New 6 GHz Frequency Band

Receive Video from up to 228m Away LoS

12G-SDI & HDMI Outputs, Zero Delay

Gold Mount Battery Plate

Smaller, Lighter, 50% Quieter

5-Pin USB Output for Camera Control

Receive DCI 4K30 Video, 10-Bit 4:2:2

Compatible with all Bolt 4K Transmitters

Bluetooth Mobile App, Spectrum Analyser

What's in the Box:

Teradek Bolt 6 XT 750 12G SDI/HDMI Wireless RX Gold Mount

Gold Mount Battery Plate

Battery Cover Plate (Front)

Battery Cover Plate (Rear)

2-Pin to D-Tap Power Cable (18")

USB Type-A to Micro-USB Type-B Cable (3')

Ultrathin HDMI Type A Cable (18")

BNC 12G-SDI Cable (18")

AC Adapter with Cable (6')

Antenna

Screw
