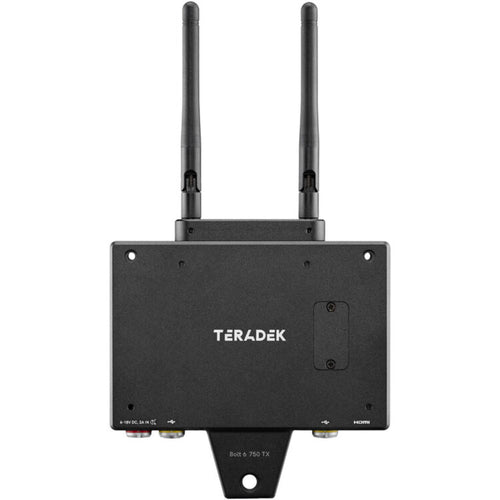

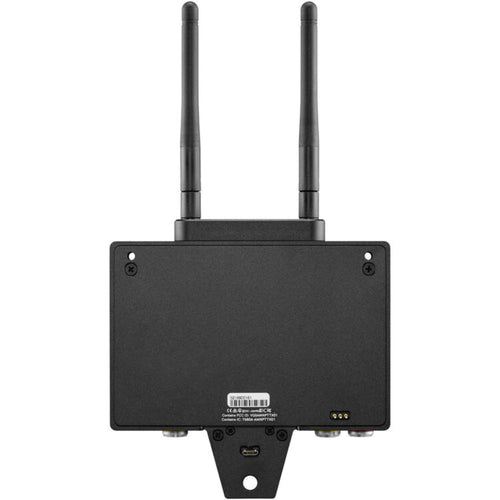

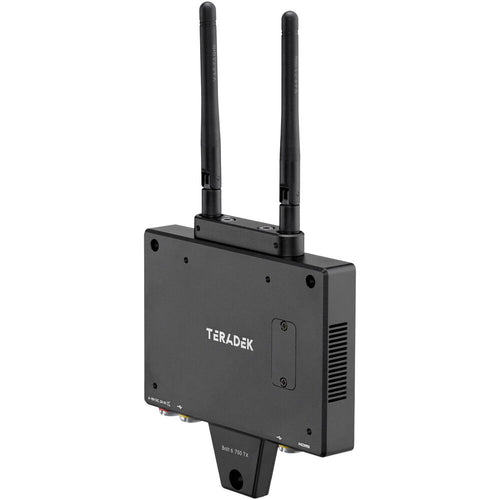

Teradek Bolt 6 Monitor Module 750 TX for Smart 7 Series Monitors

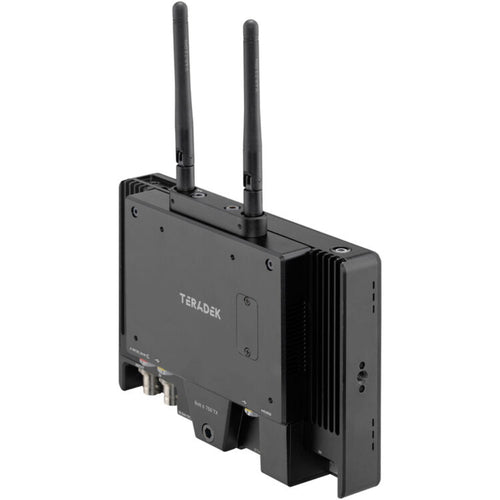

Wirelessly transmit up to UHD 4K30 video and control your camera from a touchscreen monitor from up to 750' away with the Bolt 6 Monitor Module 750 TX from Teradek. This module mounts directly on the back of a SmallHD Cine 7, Indie 7, or 702 Touch monitor and can transmit up to UHD 4K30 video to any Bolt 4K receiver.

Monitor-integrated Transmitter

You can wirelessly control supported cameras by connecting to an optional Bolt 4K RX monitor module on a similar monitor with installed camera control software. The I/O signal connection between the two units allow you to control the camera wirelessly right from the screen of the RX module monitor, or locally from the TX module monitor, with zero delay.

Imaging Tools

The receiver module also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyser, channel selection tools, and remote configuration.

Supports up to UHD 4K30 Video

The monitor inputs up to UHD 4K30 video from the camera for high-resolution previewing and can also output video to the transmitter via its HDMI block connection, supporting 10-bit 4:2:2 HDR workflows. It can simultaneously transmit to up to six receivers and offers improved metadata handling, extended range, and enhanced compatibility compared to previous Bolt 4K transmitters. Built-in AES-256 encryption and RSA 1024 key pairing help safeguard video transmissions, while advanced noise rejection maintains a clean signal even in congested wireless environments. The module delivers visually lossless, zero-delay video transmission to any Bolt 4K series receiver over the 5 GHz band, while transmission over the 6 GHz band requires a compatible Bolt 6 device.

PageOS 5 Software

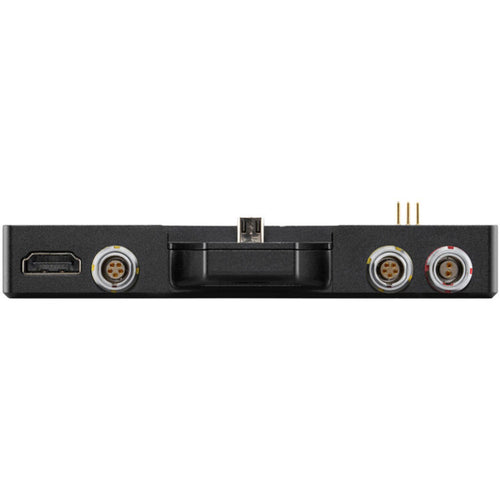

It can be powered using the 2-pin DC power input or with a separately available battery plate. It runs on PageOS 5, the same software running on the monitors, for compatibility with the SmallHD monitors. The camera control option requires a specific camera control license to be purchased separately.

Key Features:

Supports New 6 GHz Frequency Band

Wirelessly Send Video & Camera Control

Transmit from up to 750' Line of Sight

Mounts onto Cine 7, Indie 7, 702 Touch

HDMI Input up to 4K30, 10-bit HDR Video

Zero Delay, SmallHD PageOS 5 Software

Simultaneously Send to up to 6 Receivers

Compatible with All Bolt 4K 5G Receivers

What's in the Box:

Teradek Bolt 6 Monitor Module 750 TX for Smart 7 Series Monitors

Antenna

HDMI to HDMI Block Adapter

1/4"-20 Light Stand Adapter

Hex Wrench Set

Screw Socket Head Set
