Tascam USB Audio/MIDI Interface

Allowing you to record up to 16 channels simultaneously in up to 24-bit/96 kHz resolution, the US-16x08 USB Audio/MIDI Interface from Tascam features 8 XLR microphone inputs with their Ultra-HDDA preamps and 8 TRS line level inputs, 2 of which can be switched to instrument level for DI recording. A DSP mixer allows you to route any signal to any output and gives you a 4-band EQ and compression for each channel, allowing you to tweak a monitor or headphone mix.

Its angled design allows you to use the US-16x08 right on your desktop, while the included rack ears provide the ability to rack mount the system. Not limited to audio, its 5-pin DIN MIDI I/O lets the unit function as a MIDI interface as well. It is compatible with Mac, Windows, and iOS (requires Apple's Camera Connection kit, not included for iOS use).

Discrete Ultra-HDDA Mic Preamps

Tascam's Ultra-HDDA (High Definition Discrete Architecture) mic preamp design is based on discrete components, just like classic professional gear. They achieve an EIN rating of -125 dBu, meaning their noise level is practically below the range of hearing. But instead of judging the design merely by test measurements, key components were selected following extensive listening tests

NE5532 Op-Amps

Tascam uses proven components throughout the US-16x08. One example is the NE5532 op-amp, used throughout classic recording consoles and signal processors due to their musical sound

Instrument Inputs

The first two channels can be switched to direct guitar inputs for direct recording of electric and acoustic guitar and bass without the need for an external preamp

High SPL Handling

The Ultra HDDA mic preamps and line inputs offer 20 dB of headroom for distortion-free recordings of percussive, high SPL instruments like drum tracks and guitar solos

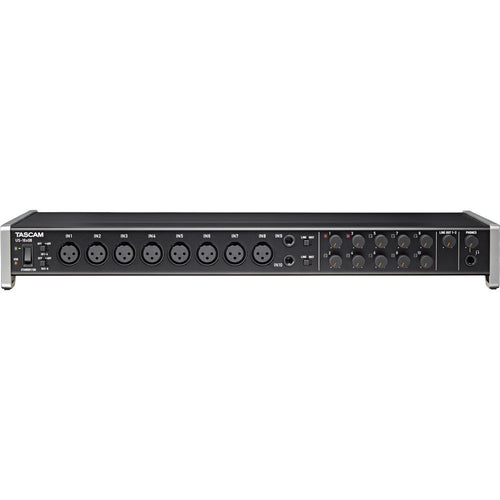

8 XLR Mic Inputs and 8 TRS Line Inputs

The eight XLR mic inputs have switchable +48V phantom power to use up to 8 condenser mics at the same time. The two front panel TRS line inputs are switchable between instrument level and line level input with adjustable gain. An additional six TRS line ins on the rear of the unit are switchable between -10dB and +4dB. All of the jacks support balanced or unbalanced 1/4" signals

Standalone Mic Preamp

When powered on without a USB connection, the US-16x08 functions as an 8-channel microphone preamp. Mics pass through the Ultra-HDDA preamps to the eight balanced line outputs on the rear panel. Use the interface to add additional high-quality mic inputs to a mixer or audio interface

DSP Mixer and USB Driver

Digital processing features like the DSP Monitor Mixer and USB drivers make sessions with the US-16x08 comfortable for the musicians and engineer. The DSP Mixer includes processing for a polished-sounding headphone mix without latency delay from your DAW software, fueled by a Blackfin DSP processor. And drivers, re-written from the ground up, provide improved compatibility and performance on Mac, Windows and iPad recording systems

High Resolution Recording

The converters and electronics on the US-16x08 allow you to record at audio resolutions up to 96 kHz/24-bit for detailed acoustic productions

Standard USB 2.0 Computer Connection

The US-16x08 uses USB 2.0 to connect to your computer. Connect the interface to any available USB port. USB 2.0 provides plenty of data bandwidth, even when recording 16 channels at 96 kHz/24-bit. The US-16x08 will also work with USB 3.0 jacks on your computer

EQ and Compression on Each Monitor Mixing Channel

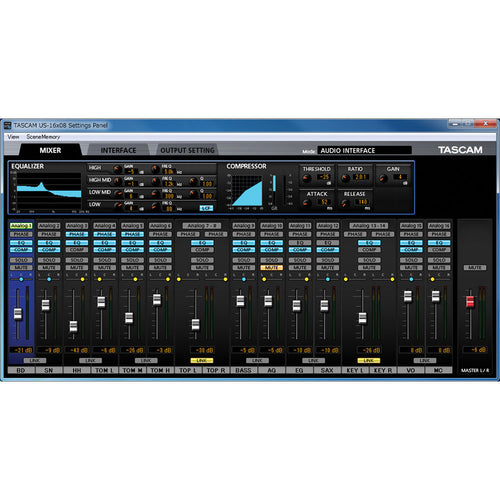

Powered by an Analogue Devices BlackFin DSP processor, the US-16x08 includes an advanced digital mixer for monitor mixing. Each input includes 4-band EQ, a low-cut filer, and compressor. The DSP mixer can store up to 10 snapshots as scenes - making it easy to recall mixer settings. The DSP mixer feature can even be used as a live mixer, controlled by your PC. An additional tab opens a digital patchbay to route signals to any output

Driver Software

The US-16x08 includes a driver architecture that was written in-house by Tascam engineers. The Windows driver software can be installed without connecting the interface, with simple on-screen instructions. Mac users can use the interface without installing a driver at all. Simply install the control panel software in order to change device settings. Finally, the class-compliant driver allows it to be used with tablets like Apple's iPad. (Requires Apple's Camera Connection Kit for USB connection, not included)

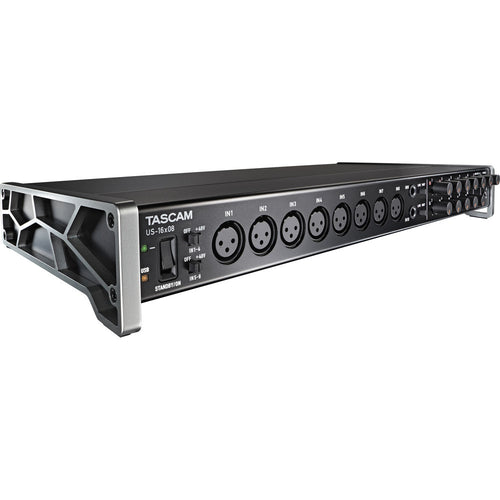

Angled Design

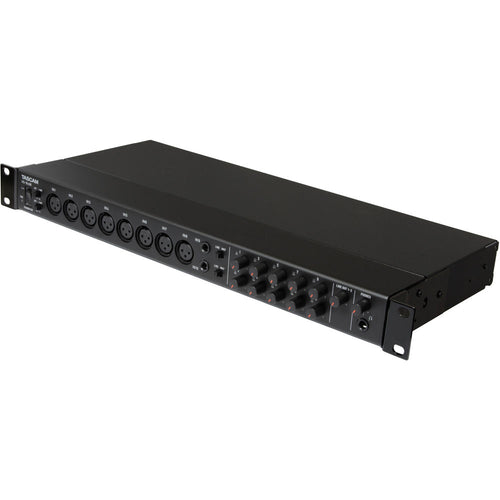

The angled design makes desktop viewing and operation much more comfortable for tabletop use. All other interfaces have their controls on the front or the top of the device, causing you to crane your neck to read the knobs and switches. A pair of rack ears are also included for use in a standard 19" equipment rack

Independent Headphone and Line Output Volume Control

The US-16x08 includes both headphone and line output volume controls. Even when both powered monitors and headphones are connected, the user can set an optimum level for each during operation. And when you want to work on headphones, you don't need to reach around to switch off your monitors

Built-In Headphone Amplifier

The 70 mW+70 mW (into 32 ohms) headphone amp makes headphone monitoring easy even in loud situations. This assures you enough monitoring volume when recording drums, guitars, or rehearsals, live or in the studio

MIDI I/O

Standard MIDI input and output connectors allow connection with the thousands of keyboards, drum machines, controllers, and other sources that employ 5-pin DIN MIDI connectors. The interfaces can also be used for synchronised operation of multitrack recorders and other external recording equipment

Full Metal Body

The durable metal jacket is employed for heavy duty use

Key Features:

24-bit/96 kHz Resolution

8x XLR Mic Inputs & 8x TRS Line Inputs

DSP Monitor Mixer with EQ & Compression

Ultra-HDDA Microphone Preamps

5-Pin DIN MIDI I/O

Angled Design for Desktop Use

Mac, Windows, iOS Compatible

What's in the Box:

Tascam USB Audio/MIDI Interface

Rack Mount Adapter

USB Cable

AC Adapter
