SmallHD Ultra 7 4K SDI/HDMI 2300nit LCD Monitor

SmallHD Ultra 7 4K SDI/HDMI 2300nit LCD Monitor

Integrate an ultra-bright monitor into your production rig with this SmallHD ULTRA 7 UHD 4K On-Camera Touchscreen Monitor, which features a 2300 cd/m² display for viewing in just about any indoor or outdoor environment. The 7" monitor features a bright 2300 cd/m² display, a 1920 x 1080 touchscreen LCD, HDMI and 6G-SDI inputs/outputs that support up to 4K, camera control options, tactile buttons, and 10-bit 4:2:2 Rec. 709 colour processing. Easily work with ARRI, Sony, and RED cinema cameras thanks to the 5-pin USB and Ethernet control ports.

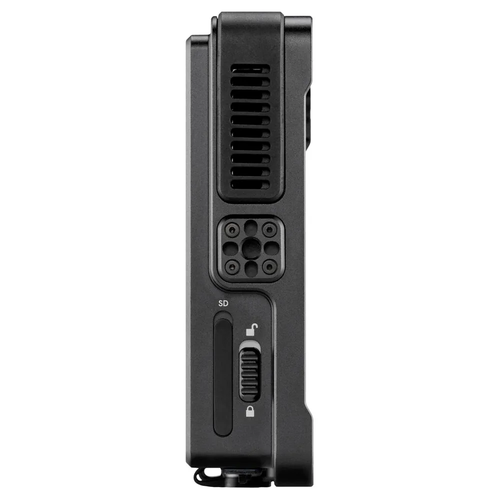

Onboard button controls offer additional ways to toggle between image functions. All the functionality of the monitor is available via PageOS 5, which provides advanced functionality with a simple and efficient graphical user interface. Upload 3D LUTs via the SD card slot to create consistent aesthetic looks for your footage. An IP53 rating ensures the monitor remains dust and water resistant. Power is delivered to the ULTRA 7 via 2-pin LEMO ports or separately available Gold/V-mount micro battery plate

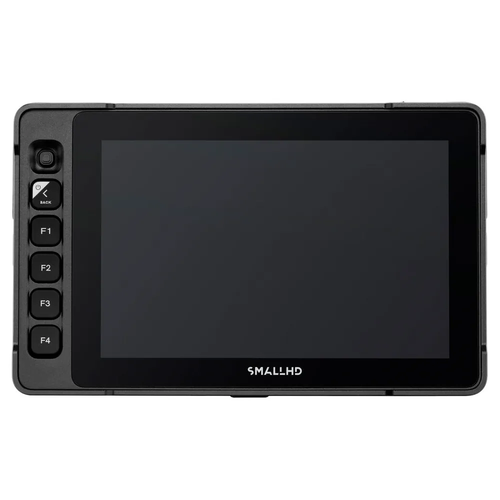

Daylight-viewable 7" touchscreen on-camera monitor with 2300 cd/m² brightness

Slim, lightweight design with 10-bit 4:2:2 DCI-P3 colour, touchscreen LCD panel

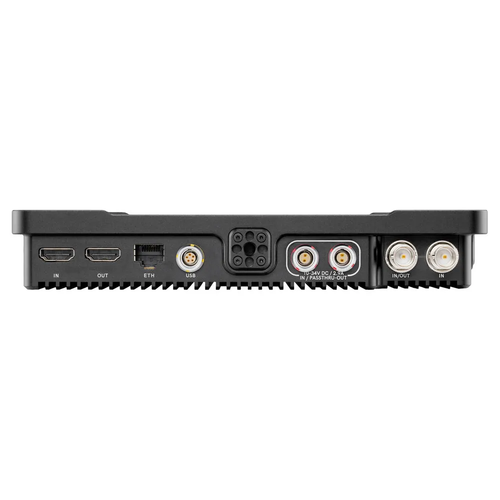

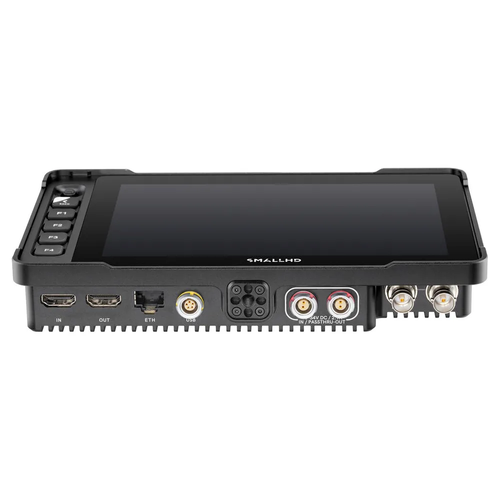

HDMI and 6G-SDI inputs and outputs

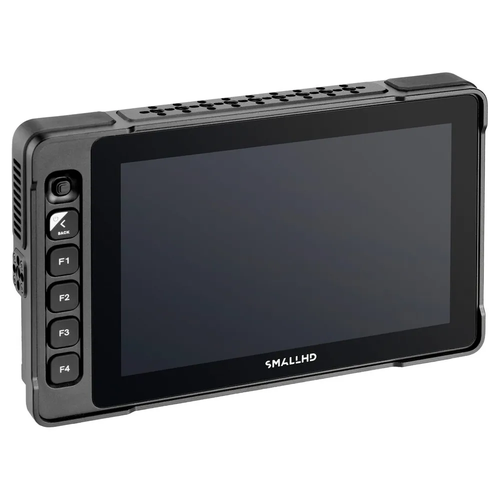

Tactile buttons around the monitor allow you to use the monitor in any condition

The PageOS 5 toolset with EL Zone Exposure Assist, best-in-class waveform, false colour, Look-Around Camera Control (sold separately), advanced Teradek RT overlays, and more

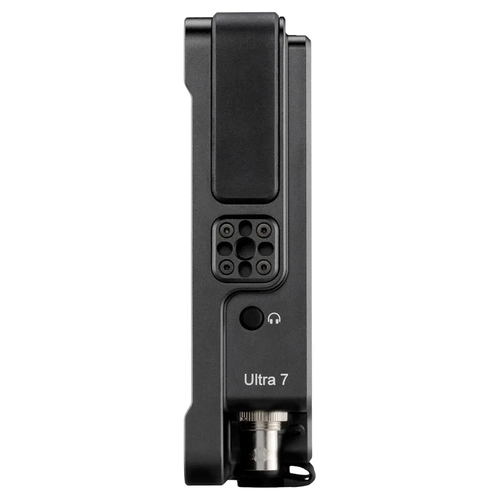

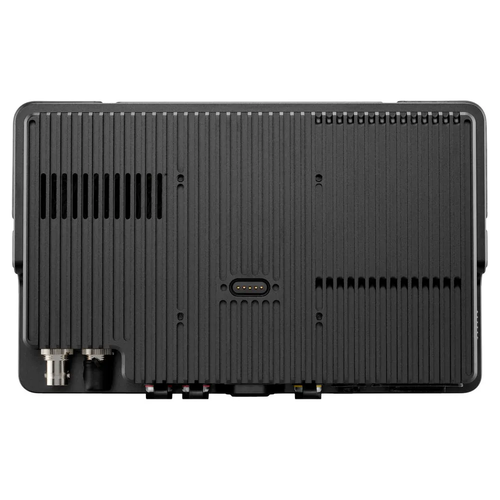

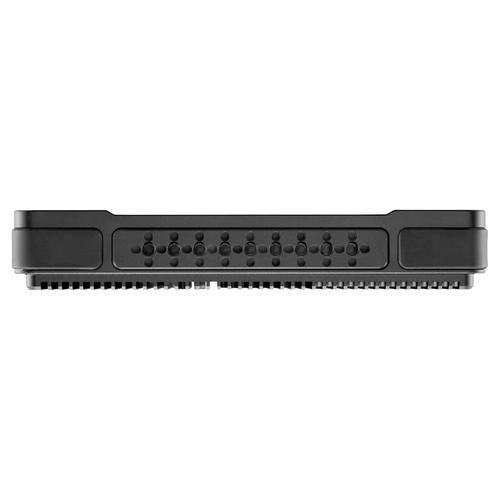

Four 1/4"-20 mounting threads on the left, right, bottom, and back of the monitor

Power using a 2-pin power input

Optional RED camera control via the 5-pin USB port

Optional ARRI/Sony VENICE camera control via the Ethernet port

Durable aluminum chassis

Display Tools:

Pixel zoom: 2x and 4x with pinch-zoom

Aspect ratios: Preset and customizable

DSLR scale: Canon 5D Mk II and Canon 7D

Custom scale: Underscan only

Anamorphic de-squeeze: 1.33x, 1.5x, 1.66x, 2.0x

Image flip: Auto and manual

Image rotation: Auto and manual

Cross conversion: HDMI to SDI, SDI to HDMI

colour focus assist: Adjustable style and intensity

Peaking: Adjustable intensity

False colour: Spectrum, ARRI-style, and customizable

Zebra: Dual, customizable

Waveform: Luma and RGB, customizable with region-of-interest highlighting

Vectorscope

RGB parade, customizable

Histogram: Luma and RGB

Image capture, with a dedicated button and image gallery

Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu

LUT import: Via SD card or USB storage device

Image overlay: Opacity slider and blink setting

Image capture

Audio meters: Up to eight channels

Key Features:

7" 1920 x 1080 Touchscreen Display

6G-SDI & HDMI Inputs/Outputs

Bright 2300 cd/m² LCD Panel

5-Pin USB & Ethernet Control Powers

PageOS 5 User Interface

SD Card Slot, IP53 Rating

Onboard Button Controls

Milled Aluminum Unibody Housing

What's in the Box:

SmallHD Ultra 7 4K SDI/HDMI 2300nit LCD Monitor
