SmallHD Cine 7 Touchscreen On-Camera Monitor with ARRI Control Kit (L-Series)

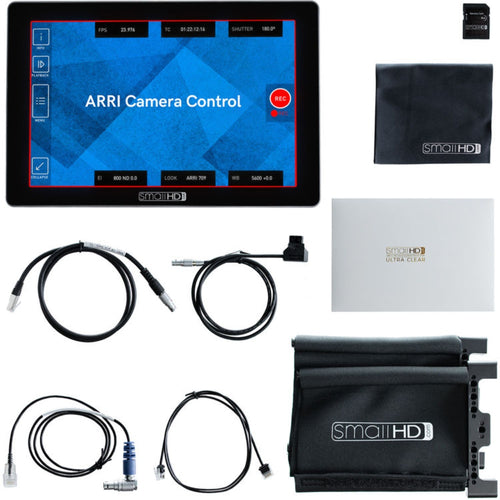

Use the lightweight Cine 7 Touchscreen On-Camera Monitor ARRI Kit from SmallHD to provide professional monitoring for your ARRI ALEXA Mini, Mini LF, or AMIRA camera with a sharp 7" display suitable for indoor or outdoor use. The kit includes the Cine 7 monitor, an L-series battery mount, a sun hood, a screen protector, an 8GB SD card, and the ARRI control kit that includes software, as well as control and power cables.

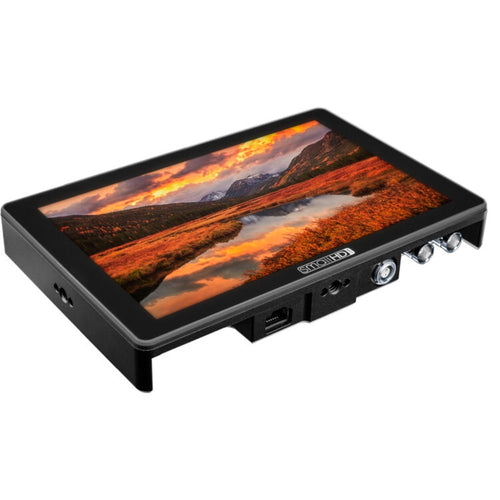

The Cine 7 monitor supports up to UHD 4K HDMI output as well as various HD and SD formats via one full-size HDMI input, one HDMI output, one 3G-SDI input, and one 3G-SDI selectable input/output. The monitor also supports cross conversion from HDMI to SDI and from SDI to HDMI.

The ARRI control software loads onto the monitor and allows you to control ARRI camera functions on your ARRI ALEXA Mini, Mini LF, or AMIRA camera such as run/stop, colour and exposure controls, status, colour temperature, video format, playback, shutter, menu control, and more, all via the Cine 7 touchscreen. The included control cables allow the monitor to connect to the camera.

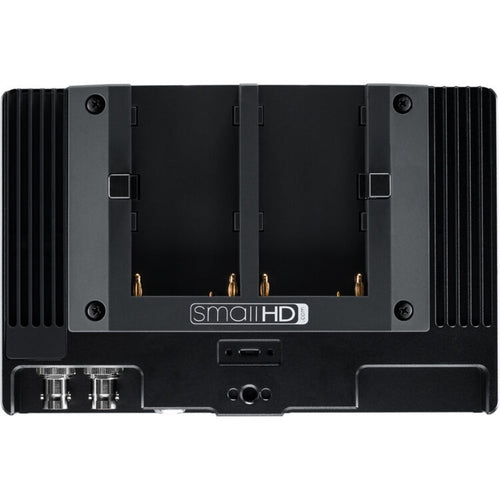

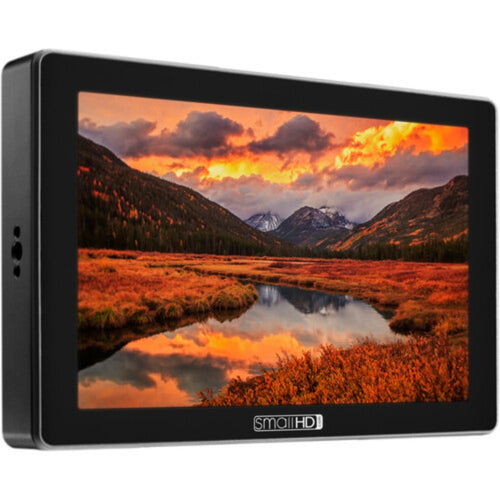

The Cine 7 features a bright 1800 cd/m², 322 PPI, 1920 x 1200 IPS LCD touchscreen with 3D LUT compatibility. Using the intuitive Swipe OS3, you can turn on and save pages of various monitoring tools and focusing aids with a finger tap. At the rear of the monitor, an L-series mount battery mount enables you to power the unit.

Features:

Daylight-viewable, 7" touchscreen on-camera monitor with 1800 cd/m² brightness

ARRI camera control kit includes control and power cables as well as the ARRI control software

ARRI software works with ALEXA Mini, Mini LF, or AMIRA cameras to control functions such as run/stop, colour and exposure controls, status, colour temperature, video format, playback, shutter, menu control, and more

Slim, lightweight design with 10-bit, touchscreen IPS LCD panel

Supports up to 1080p60 video via full-size HDMI and 3G-SDI inputs

HDMI-to-SDI and SDI-to-HDMI cross conversion is supported

Uses SmallHD Swipe OS3 to organize and save customized function and settings pages

Power with an L-series battery plate

Four 1/4"-20 mounting points on top, left, right, and back

An 8GB SD card, screen protector, sun hood, and cleaning cloth are included

Software

Pixel zoom: 1.1 to 2x and 2 to 8x via swipe up/down, with pinch-zoom

DSLR scale: Canon 5D Mk II and Canon 7D

Custom scale: Underscan only

Anamorphic de-squeeze: 0.75x, 1.33x, 1.5x, 2.0x, 2.5x

Image flip: Auto and manual

Image rotation: Auto and manual

Colour focus assist: Adjustable style and intensity

Peaking: Adjustable intensity

False colour: Spectrum, ARRI-style, and customizable

Dual zebra: Customizable

Waveform: Luma and RGB, customizable with the region of interest highlighting

Vectorscope: Yes

RGB parade: Customizable

Histogram: Luma and RGB

Image capture: With dedicated button and image gallery

Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu

LUT import: Via SD card or USB storage device

Image overlay: Opacity slider and blink setting

Audio meters: HDMI and SDI up to 8 channels
