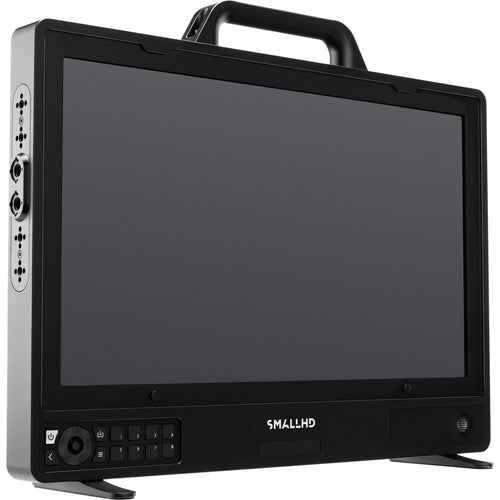

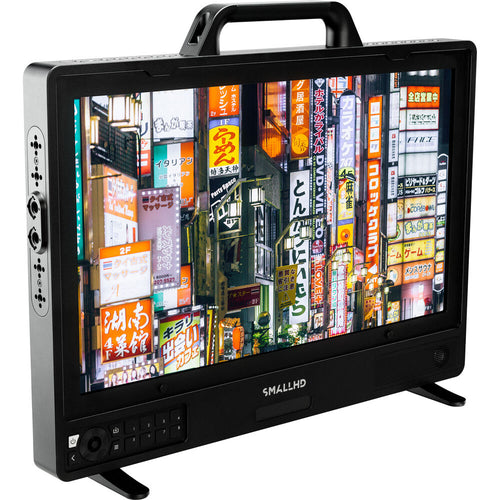

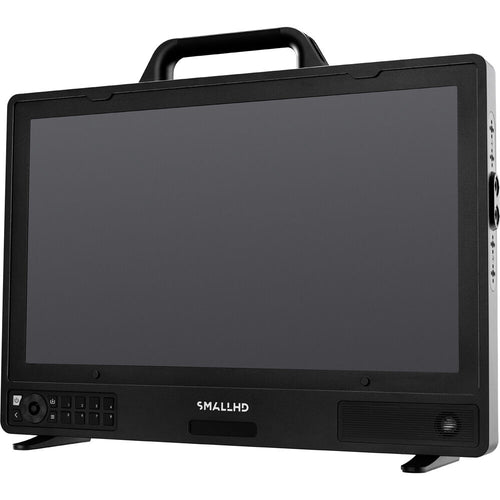

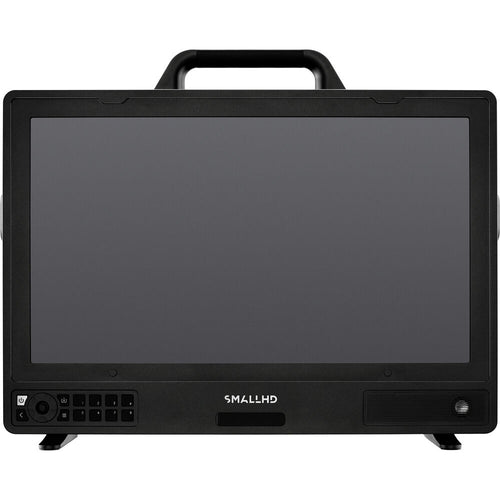

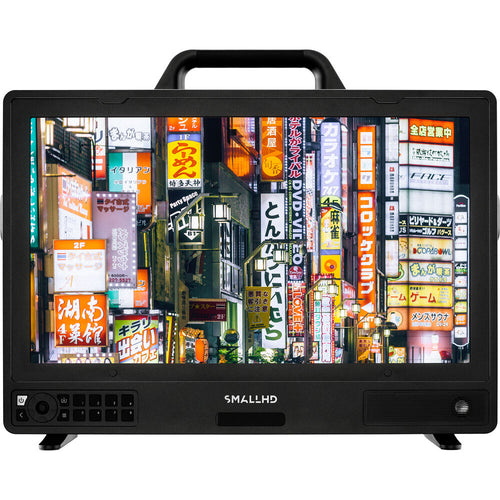

SmallHD Cine 18" 4K High-Bright Production Monitor

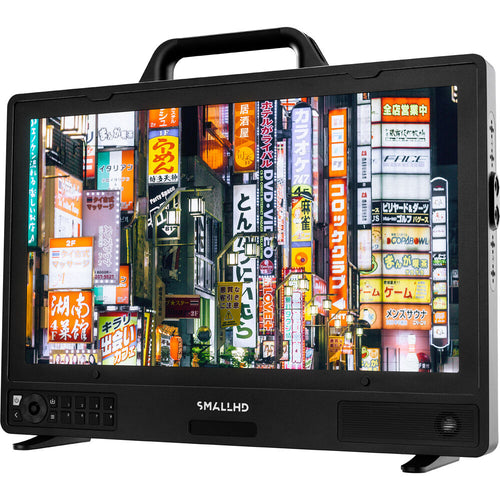

Add a professional UHD 4K monitor to your DIT station, video village, or studio with the Cine 18" 4K High-Bright Production Monitor from SmallHD. Featuring the updated SmallHD OS4.1, the monitor provides a crisp 4K image with 3840 x 2160 resolution, 10-bit (8+2 FRC) colour intelligence, 1300:1 contrast ratio, and 1100 cd/m² brightness for use outdoors.

The edge-lit display features four 12G/6G/3G/HD-SDI inputs and four 12G/6G/3G/HD-SDI outputs, as well as one HDMI 2.0 input. All functionality of the monitor is accessed via the innovative Page Builder in OS4.1, which features a full-featured UI, preconfigured pages, and page tabs. Other monitoring features include a calibration wizard, false colour overlays, waveform, pixel zoom, focus assist, peaking, and improved function buttons.

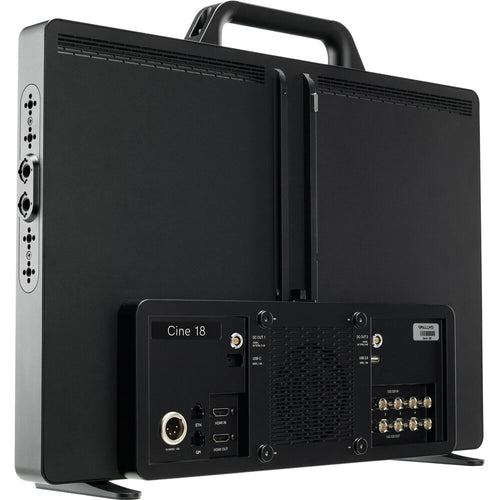

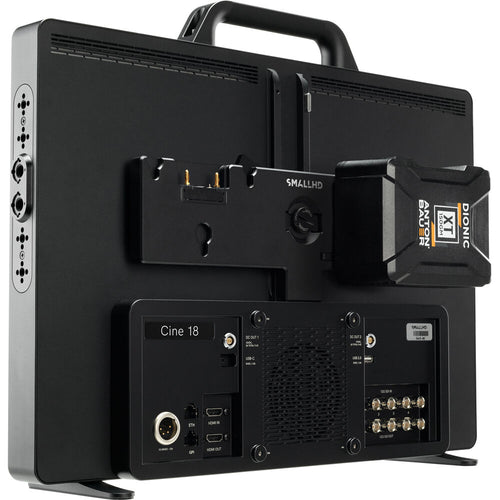

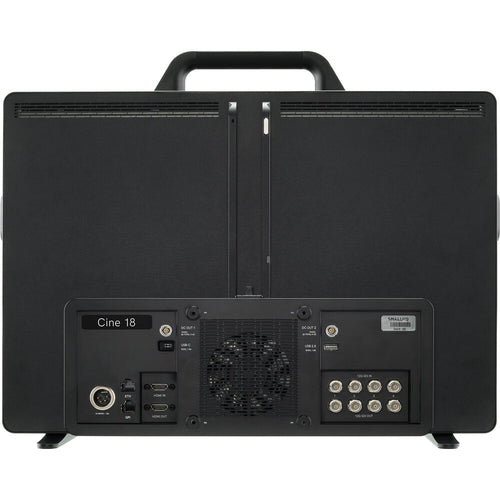

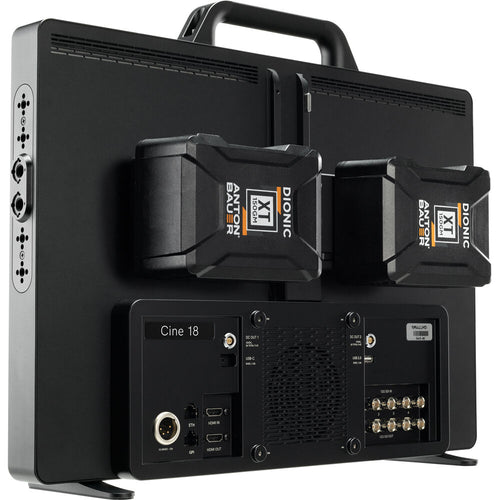

The monitor can be mounted using the VESA pattern on the back or by 1/4"-20 threads around the top and sides of the monitor. You can power the monitor using a 4-pin XLR input or via a separately available dual V-mount or Gold mount battery plate, and they are hot-swappable. Data inputs and output can be performed using the SD card slot to load 3D LUTs, and the monitor also features an RJ45 Ethernet port and an RJ45 GPI port for additional data and configuration. There is a 3.5mm headphone output to monitor the embedded audio.

Features

18.4" UHD 4K monitor

3840 x 2160 resolution

1100 cd/m² brightness

1300:1 contrast ratio

Four 12G/6G/3G/HD-SDI inputs and four 12G/6G/3G/HD-SDI outputs

One HDMI 2.0 input

SD card slot for 3D LUTs

One RJ45 Ethernet port

One RJ45 GPI port

1/4"-20 mounting threads on top and sides

Key Features:

18.4" Display, UHD 4K Resolution

1100 cd/m², SmallHD OS4.1

12G-SDI and HDMI 2.0 Inputs and Outputs

3D LUT Support, SD Card Slot

RJ45 Ethernet and GPI, XLR Power Input

USB-C Power Outputs, Redesigned UI

Waveform, False Colour, Focus Assist

Peaking, Pixel Zoom, Pages, Page Tabs

What's in the Box:

SmallHD Cine 18" 4K High-Bright Production Monitor
