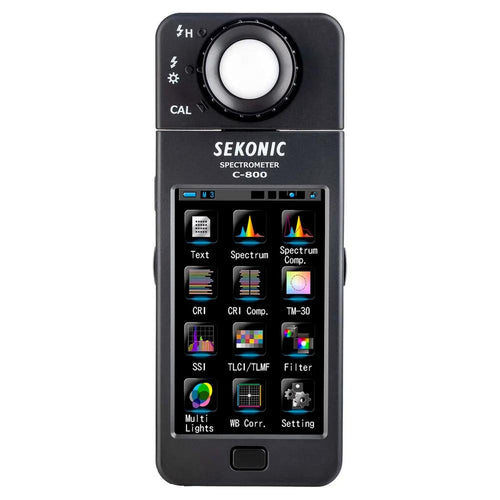

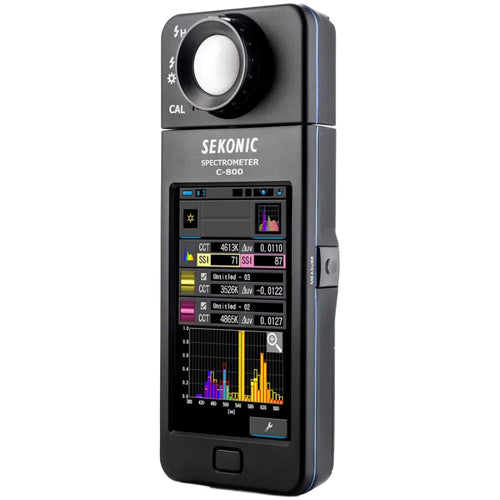

Sekonic SpectroMeter C-800

Intended for photographers, videographers, cinematographers, and gaffers, the Spectrometer C-800 from Sekonic is an advanced field meter capable of reading virtually all light sources whether they're LED, flash, incandescent, HMI, fluorescent, or in the natural light spectrum. Most importantly, it's a practical lighting tool that analyses the light source using 11 different display modes on its 4.3" colour touchscreen, indicating specifically what you need to do to achieve your desired effect. The meter's CMOS sensor enables measurement in increments as fine as 1nm and allows capture of colour spikes in the light output - an especially valuable function when working with LED, HMI, fluorescent lighting, and mixed sources.

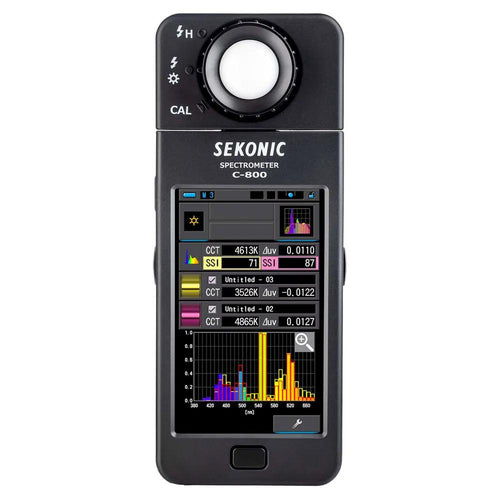

Perhaps the meter's most exciting addition is Spectral Similarity Index. Developed by the Sci-Tech Council of the Academy, SSI gives the user the ability to set any light as a standard, or use predefined standards (such as CIE D55), and then gives other lights an SSI score based upon how well they will match. The C-800 also includes TLCI (Television Lighting Consistency Index), TLMF (Television Lighting Matching Factor), and TM-30-15 (Technical Memorandum) in addition to CRI (Colour Rendering Index), which can be measured singularly or in two light comparison mode.

The Spectrometer has very impressive accuracy, repeatability, and response specs and a wide range of values in all modes. Flash for example, can be colour analysed with selectable shutter speeds from 1-1/500 sec. Ambient light has a 1.0 to 200,000 lux range (0.09 to 18,600 fc). The intuitive colour touchscreen offers access to the meter's many functions including a Spectrum graph, CRI, Camera Filter, Lighting Filter, White Balance Compensation, and comparison of multiple lights.

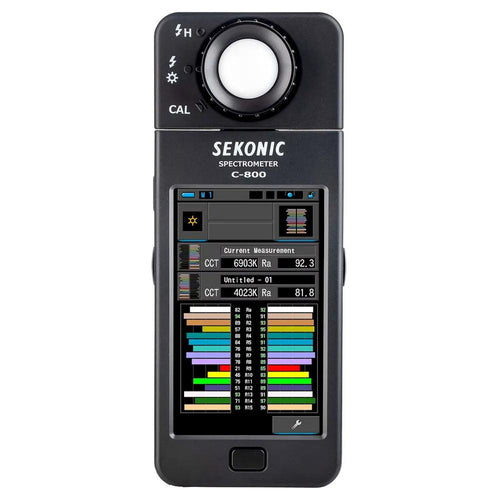

The Text mode screen displays colour temperature, lux or fc as well as colour compensation and light balancing filters. After selecting your preferred colour balance, the Camera Filter and Lighting Filter Screens will display the actual Rosco, Lee, Kodak Wratten, or Fuji filter designations necessary to achieve your targeted colour temperature. CRI also has a dedicated screen that displays standard colour reference values (including R1 thru 15) as a percentage of the light source's ability to reproduce a colour accurately, as compared to the Ra standard temperature. The Multi Light Screen reads multiple light sources' colour temperatures as well as light balance and colour compensation recommendations, memorises them, and allows them to be compared.

With its plethora of light-analytic tools, ability to read and compare all types of light and real-world filter solutions, the Spectrometer is destined to be a staple on set.

CRI, TLCI, TLMF, TM-30-15, and SSI

Developed by the Sci-Tech Council of the Academy, SSI (Spectral Similarity Index) gives the user the ability to set any light as a standard, or use predefined standards (such as CIE D55), and then gives other lights an SSI score based upon how well they will match. The C-800 also includes TLCI (Television Lighting Consistency Index), TLMF (Television Lighting Matching Factor), and TM-30-15 (Technical Memorandum), in addition to CRI (Colour Rendering Index) which can be measured singularly or in two light comparison mode.

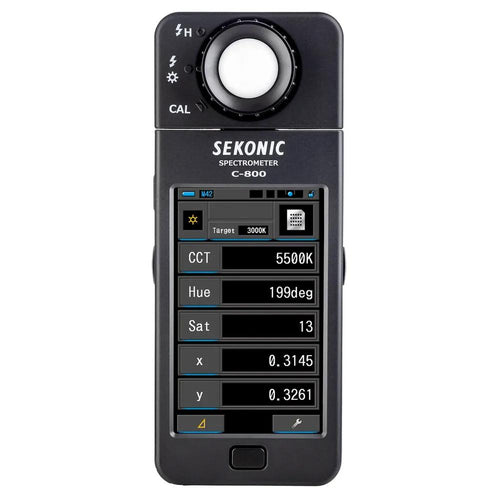

Match Light Sources by Measuring x, y and Hue Saturation

The C-800 has more colour control parameters specifically designed to help match lights to one another. CIE1931 (x, y) has been added, giving users the ability to measure and dial-in specific chromaticity coordinates into lights of some major brands. Hue and Saturation units of measure have also been added to better match RGB LEDs to any light source. In addition, new display screens provide easy interpretation and understanding of the new data fields, making this a superior meter for all applications.

Measure Virtually any Kind of Light

The C-800 series incorporates a CMOS linear sensor, that measures and evaluates the true colour temperature of a light source from 380 to 780nm in 1nm output wavelength increments, capturing spikes in output of conventional light sources as well as fluorescent, flash, HMI, and LED sources.

Measurements

Measurements include Kelvin (K), Illuminance (lux/fc), LB/CC filters (for camera lens or lighting filters), LB/CC Index, CRI (Ra, R1 thru. R15), , SSI, TLCI, TM-30-15 (Rf, Rg), CIE1931 (x, y) chromaticity coordinates, Hue, Saturation.

Expanded Colour Rendering Properties

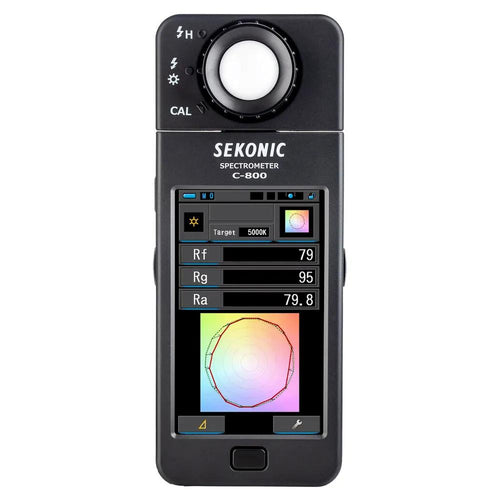

Standards include CRI, SSI, TLCI, TLMF, and TM-30-15

User-Friendly Design

270-degree swivel head, dark calibration without a cap, large 4.3" colour touch panel LCD display, and Customise Function.

Various Displays

Text, Spectrum Graph, Spectrum Comparison, CRI, CRI Comparison, SSI, TLCI/TLMF, TM-30-15, lighting filter for Rosco and LEE, camera filter for Kodak Wratten, LEE and Fuji, Multiple Lights Comparison, White Balance Correction.

C-800 Series Utility

The utility which can be downloaded from www.sekonic.com, offers easy settings in the meter and analysis of memorised data in a computer.

Key Features:

Employs SSI (Spectral Similarity Index)

Measures Virtually any Kind of Light

Range: 0.09-18,600 fc (1-200,000 lux)

Colour Temperature Range of 1600-40,000K

11cm Touchscreen with 11 Display Modes

Displays CRI, SSI, TLCI, TLMF, TM-30-15

Shows Rosco, Lee, Fuji & Wratten Names

Multiple Light Comparison

What's in the Box:

Sekonic SpectroMeter C-800
