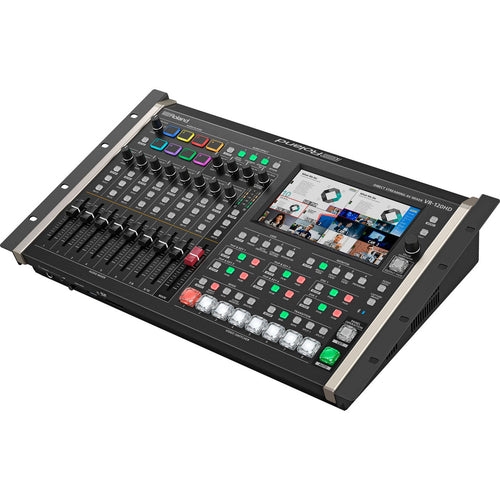

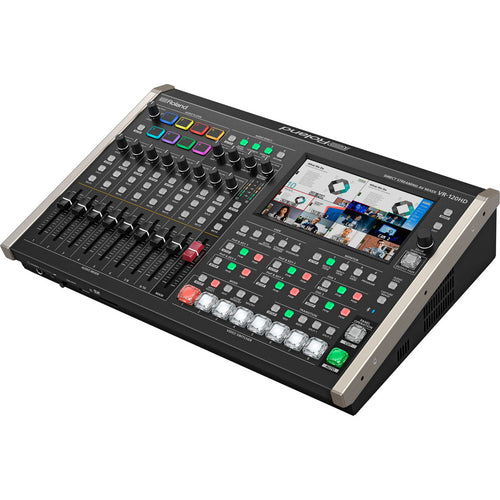

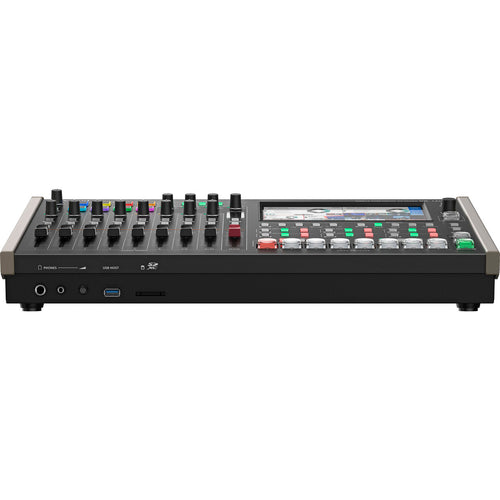

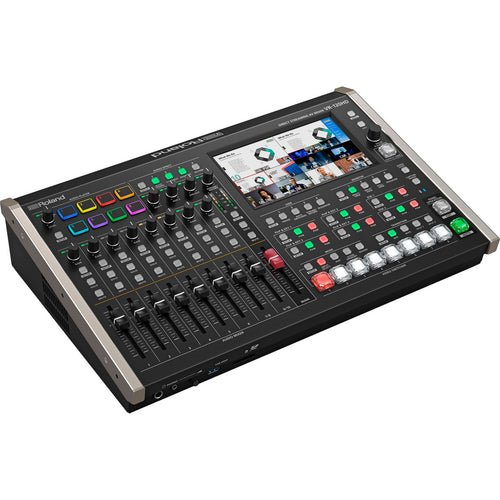

With the VR-120HD Direct Streaming AV Mixer, a single operator can confidently manage hybrid live and online productions without the need for external gear and the staff to run it. Offering extensive audio and video I/O, a large touchscreen, and hands-on controls, this portable powerhouse gives you the tools you need to take on any mid-level production. Advanced Roland AV features make difficult tasks simple with customizable workflows, deep automation functions, remote PTZ camera control, one-touch macro sequencing, streaming over LAN and USB, and much more.

Create Custom Experiences for Live
and Online Audiences

The VR-120HD’s flexible video capabilities let you handle the diverse presentation needs of events as they happen. Assign sources to eight cross-points on the fly, including live video inputs, still images, and video clips. Prioritize cameras and/or computer sources with scene recall. And create custom feeds for live and online viewers by assigning composition layers to multiple busses as needed.

HDMI and SDI Inputs

The VR-120HD supports both HDMI for common A/V devices and SDI for long cable runs and high-end cameras. Seamlessly combine six HDMI sources and six SDI sources in Full HD with a range of broadcast and cinematic frame rates and color spaces. All HDMI inputs feature built-in scalers with EDID and HDCP support, eliminating connection hassles with client-provided sources like computers, tablets, smartphones, gaming consoles, and legacy 4:3 devices.

Integrated Playback of Stills and Video Clips

Enhance events with onboard support for graphics and video playback. Call up still images during transitions between presenters, display graphics for breaks, and use PNGs to create dynamic lower thirds. The integrated video player lets you trigger video clips directly from the SDXC card, with no need to connect an external playback device.

Layers and Keyers

Video effects and graphics are must-haves to bring polish and excitement to productions. The VR-120HD’s effects engine features eight composition layers that can be assigned to the Program, Sub-Program and Aux outs, so you’ll always keep audiences engaged with visually appealing content. With up to four picture-in-picture windows and two downstream key layers with transparent PNG and external key support, you can manage the creative needs of any client. For example:

Layers 1-2—Start with mixable live background video layers.
Layers 3-6—Place four picture-in-picture layers or chroma/luminance key effects.
Layers 7-8—Add two downstream keyers with support for fill and key inputs.

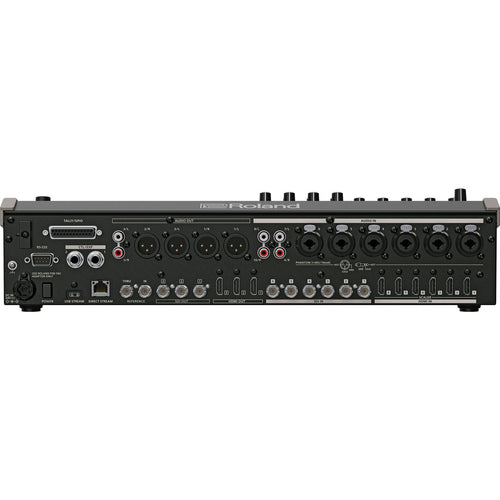

With multiple assignable outputs—including three SDI and three HDMI outputs, a USB-C streaming output, and ethernet streaming—the VR-120HD puts a high-end video matrix at your command. Feed program displays, auxiliary monitors, multi-view producer displays, and the online audiences at once, complete with a clean output left over for recording the presentation to an SDXC card.

Versatile Video Outputs
