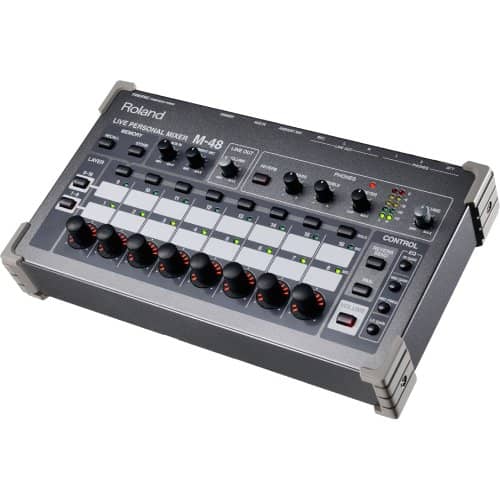

Roland Personal Monitor

The Breakthrough Personal Mixing & Monitoring Solution

The M-48 is the next generation live personal mixer that offers musicians the flexibly to control exactly what they want to listen to during their performances. It provides the highest level of sound monitoring quality for both headphones and IEMs (In-Ear Monitors) as well as for wedge and powered monitors. The superb sound quality creates the ideal monitoring environment for live performance and recording as well as studio applications.

Features:

Unprecedented Personalization

The M-48 enables control of up to 40 audio channels via 16 stereo groups. No longer do you have to share the same sources and in the same order as everyone else. Each musician can choose what he or she wants to listen to - a truly personal mix.

Professional Sound Control and Quality

Sweeten your monitor mix to your exact preferences with volume, pan, 3-band EQ and built-in reverb per group? all instantly adjustable by convenient encoder knobs. A limiter is incorporated for protecting your ears from sudden and dangerous volume spikes. Based on REAC, the all-digital connection results in a low noise floor, improved musicality and crystal clear sound.

Unparalleled Usability

The LED indicators on the control knobs enable instant adjustment and visual confirmation at a glance, even on a dark stage. The built-in ambient mic aids in communicating with other musicians without having to remove your ear-buds or headphones as well as enabling a stage/room feel if desired. The AUX Input allows a metronome or other device to be mixed into the primary sound.

Convenient Connectivity

Our newly developed "REAC Embedded Power" (via the S-4000D) transfers both power and 40 channels of audio to the M-48 via a single CAT5e cable dramatically simplifying wiring and stage layouts. Mini-jack and 1/4 inch phone jack headphone outputs are provided. Balanced TRS line outputs support wedge or other types of powered monitors. An independent stereo output mini-jack enables recording with superb sound quality.

A Complete Digital Mixing System with any V-Mixer

With any V-Mixer Live Mixing Console, you can setup, maintain and control 40 channels of monitor output to each M-48 connected to the system. All V-Mixers are equipped with remote management software, memory recall, etc. providing a simple and flexible setup.

Connect to an existing Analog/Digital Console

With an existing console, connect the M-48 along with the S-1608 (16 channel) or the S-4000S (40 channel) Digital Snake to utilize the complete system. For digital consoles, use the S-MADI REAC MADI Bridge to maintain the digital connection between the console and the M-48s. The next generation of digital monitoring can be incorporated along with your existing mixing system.

Setup and Manage the M-48 on your PC

M-48's can be set up and controlled on your PC when using with an existing console. Simply connect to the serial port on the S-1608/S-4000S series Digital Snakes or S-MADI.

Included Mounting Plate

The M-48 can be attached to the top of a microphone stand by using the bundled mounting bracket. The mounting bracket is also designed with a removable headphone hanger and accessory tray for your pencil or portable recorder. The optional APC-33 mounting bracket can be used when you need to mount the M-48 to the middle of a music or mic stand.

S-4000D - The REAC Splitter Equipped with Embedded Power

"REAC Embedded Power" is unique Roland technology that enables the transfer of not only the digital audio signal but also the power required by the connected device - all via one CAT5e cable. The S-4000D Splitter and Power Distributor is equipped with 10 REAC ports including 8 ports of REAC Embedded Power. The S-4000D can automatically detect and distinguish a product not supporting REAC Embedded Power. In this case, power is not provided allowing the S-4000D to also function as a standard splitter when required. The S-4000D is required to use the M-48s.
