PDMOVIE LIVE AIR 3 Wireless Focus Lens Control Kit

PDMOVIE LIVE AIR 3 Wireless Focus Lens Control Kit

Small Size Big Function

The new LIVE AIR series brings a new experience of wireless focus control.PDMOVIE has been deeply involved in the field of focus for many years. Strictly control the quality and details, develop unique integrated chip technology, connect multiple modules, and achieve finer focus and more extreme operating experience.

Disappearing Signal antenna. But signal never goes away!

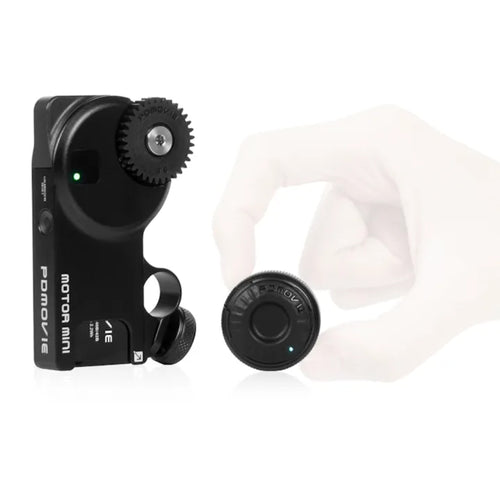

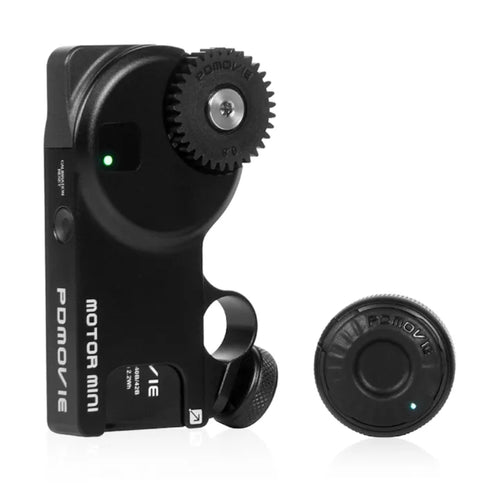

The controller and motor are paired at the factory. Automatically connect at startup

The latest Bluetooth 5.3 technology Unique signal module design. The signal distance is increased by 10 times, and the signal range can reach 100 meters.

The motor has strong power! It is worth using

Powerful motor, 0.5Nm torque, low delay, fast response, precise positioning

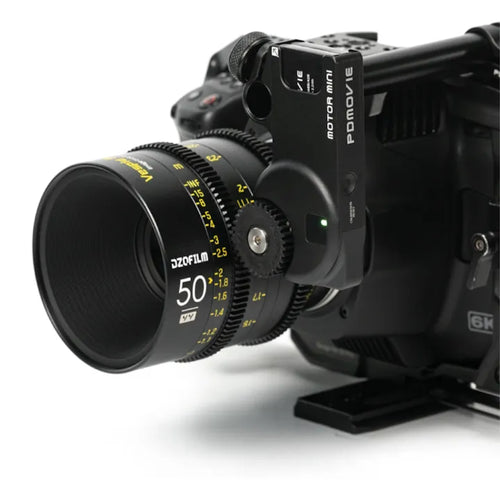

Standard 0.8Mod gear, optional 0.4/0.5/0.6mod to easily control various lenses

The resolution of each revolution of the motor is 16384dpi,and the stroke resolution of the controller is 16384dpi. The Operation instructions can be executed with ultra-low-latency response speed.

One button,one light. All functions can be realized.

Easy to Operate

Both the controller and the motor are only equipped with a signal light and a button, and all setting operations can be completed by pressing the button.The current state of the motor can be obtained through the signal lamp

Abundant expansion accessories. Deal with different scenarios.

Handwheel Extension Accessories

75mm large hand wheel telescopic device, individual combat can be converted to team combat at any time.

The handle is detachable, and there are 7 1/4 screw holes on the hand wheel, which is very convenient for combined installation

Thumb Wheel Controller

PDL-TC-AFP controller is a handwheel controller specially used for focus control, Rotation range 300°, Battery life 6-8 hours.

Push-Pull Controller

PDL-TC-AZP controller is a push-pull rod controller specially for focal length control.There are 3 adjustable speeds,The farthest control distance can reach 100 meters.

Universal Extension Cage

RIG AIR's unique handle sliding design, only need to adjust the height of the handle, it can be compatible with most of the SLR/SLR cameras on the market. Multiple expansion screw holes are reserved for easy installation of various kits.

Integrating four modules of motor, receiving, driving and power supply

The volume of the module is 21cm², 20% of the total volume of the motor.

High Precision Integrated Microchip

Combining signal processing and data transmission.

The volume is only 31x31x30mm.

Controller comes with 1/4 screw, As long as there are 1/4 screw holes, it can be installed.

Such as Installed on accessories.

Such as Installed on the handle.

Such as Installed on the monitor.

Easy to Replace

Lift and pull, quick battery change.

LI42B Battery

The focus motor uses two LI-42B batteries as a replaceable power supply, and the battery life is 8 hours.

Special Charger for Motor Battery

Charge two sets of motor batteries at the same time, and it can be fully charged in two hours.

LIR2477 Battery

The controller uses LIR2477 battery as a replaceable power supply, and the battery life is 10 hours.

Two Charging Methods

LIR2477 battery, can be charged directly through the controller,or use a dedicated charger to charge.

Indicator light

The flashing speed of the indicator light represents the current speed.

Power

The colour of the indicator light represents the current power.

Easy Calibration

Through the motor button, can easily start automatic lens calibration with one button, such as using an infinity lens,Lens travel can also be set by manual calibration.

Smart & Comprehensive Remote Air APP

The motor supports direct connection and control through the ios app, which can be realized through the app:

Connect multiple motors at the same time

Mark save lens data

A-B point lens limit

Motor runs automatically

APP can set the limit stroke of AB point.

After setting the AB point, it can be set to run automatically within 2-9999 seconds.

APP can save the set lens data, upload it to the background of the system, and then download it for use.

Key Features:

Focus Wheel Controller

Motor Mini Lens Motor

Batteries and Chargers

15mm Rod Clamp with Shoe Mount

Charging Cables, 15mm Rod

Lens Gear Ring, Mounting Clamp

What's in the Box:

PDMOVIE Bluetooth Focus Controller for PD-BTMP, PD-BTMP-N, PD-BTMP-S & PD-BTMP-SP

PDMOVIE LIR2477 Battery for PDL-TC-AFX Focus Controller

1/4"-20 Screw

PDMOVIE MOTOR MINI Bluetooth Motor for LIVE AIR 2, 2S, and 3

PDMOVIE LI-42Bx2 Battery for PD-BTMP, PD-BTMP-N & PD-BTMP-S

PDMOVIE 2/4-Channel Battery Charger for LI-42B & LI42Bx2 Batteries

0.8 MOD Gear

PDMOVIE LI-42B Battery for PD4-HT, PDL-TC-AFP, PDL-TC-AZP Controllers

PDMOVIE LIR2477 Battery for PDL-TC-AFX Focus Controller

PDMOVIE USB Charging Cable for REMOTE AIR PRO 3 Controller (3')

PDMOVIE 2/4-Channel Battery Charger for LI-42B & LI42Bx2 Batteries

USB Cable

PDMOVIE 15mm Rod Clamp with Rod & Shoe Adapter for Motor

PDMOVIE 15mm Rod (5.9")

1/4"-20 Screw

Allen Wrench

PDMOVIE 15mm Rod (5.9")

Lens Gear Ring

Clamp Mount
