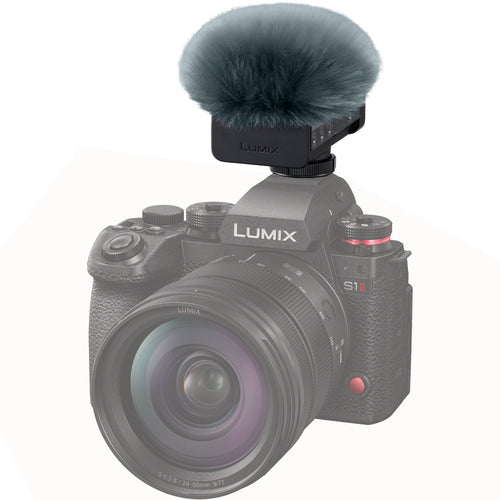

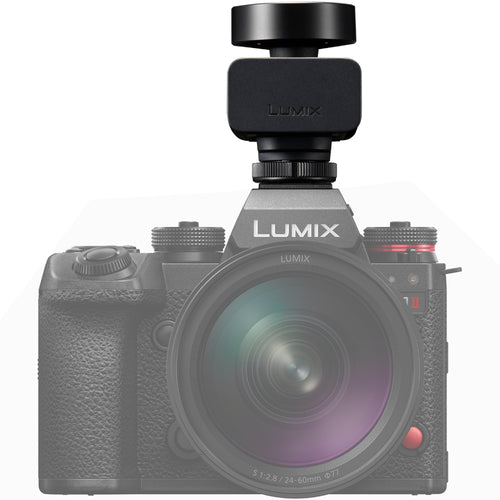

Panasonic Advanced Digital Microphone

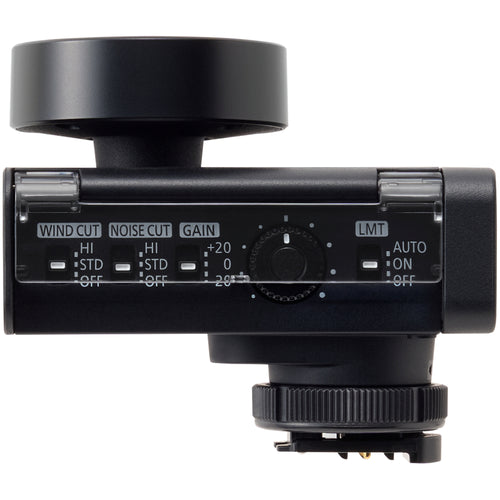

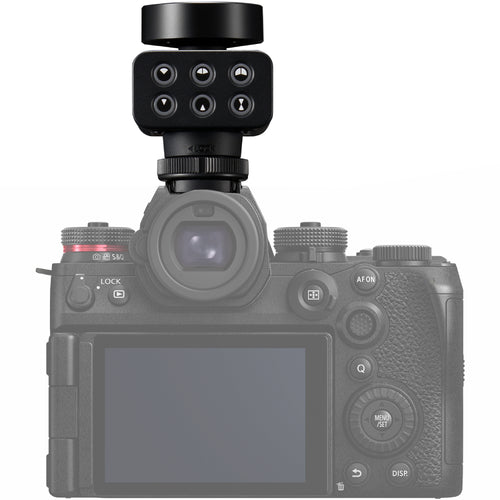

This 4-channel electret condenser microphone array offers multiple directional modes to suit different recording needs, including forward cardioid, forward supercardioid, rearward supercardioid, bidirectional supercardioid, stereo (90°), and wide stereo (120°). Wind Cut and Noise Cut settings (OFF / STD / HI) help refine audio capture in varying conditions. Gain can be set to -20 dB, 0 dB or +20 dB, while audio level adjustment ranges from -18 dB to +12 dB. When Float is selected, gain and audio level are fixed at 0 dB and the limiter (LMT OFF / ON / AUTO) is disabled. With a sensitivity of -12 dBFS (0 dB = 1 V/Pa, 1 kHz), a 40 Hz to 20 kHz frequency response, maximum input sound pressure level of 122 dBSPL or more, S/N ratio of 77 dB or greater, and dynamic range of 105 dB or more, it delivers detailed and balanced sound reproduction.

Flexible Recording Options in a Compact Design

The microphone supports Linear recording at 48 kHz/24-bit/2ch, 96 kHz/24-bit/2ch, and 48 kHz/24-bit/4ch, as well as Floating recording at 48 kHz/32-bit/2ch, 96 kHz/32-bit/2ch, and 48 kHz/32-bit/4ch (when backup audio recording of CH3/CH4 is performed). Backup Audio Recording includes Mode 1 (CH3: Omnidirectional, CH4: Omnidirectional at -20 dB) and Mode 2 (CH3: CH1 at -20 dB, CH4: CH2 at -20 dB).

Key Features:

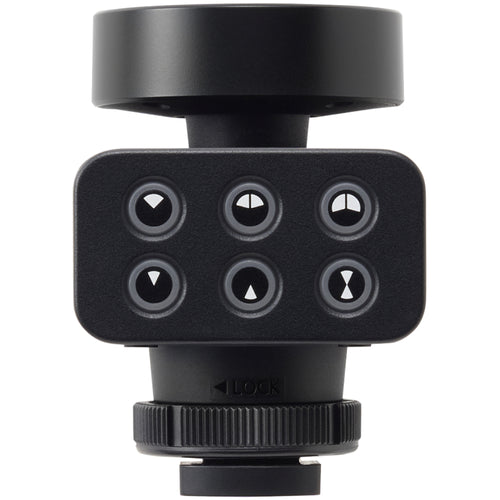

4-Channel Electret Condenser Array

Multiple Selectable Directional Modes

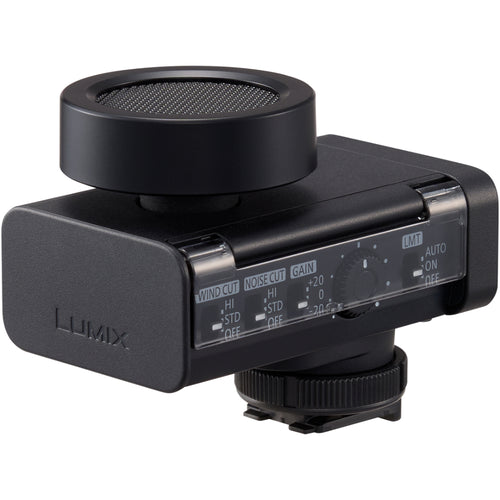

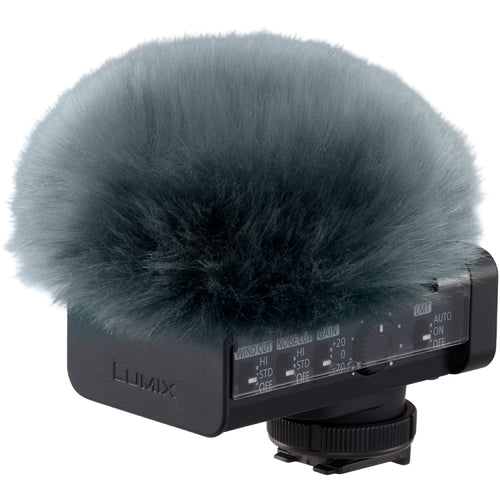

Wind Cut and Noise Cut Settings

Adjustable Gain from -20 dB to +20 dB

Linear and 32-Bit Float Recording

Backup Audio Recording Modes

40 Hz to 20 kHz Frequency Response

High 122 dBSPL Maximum Input

105 dB Wide Dynamic Range

Compact and Versatile Design
