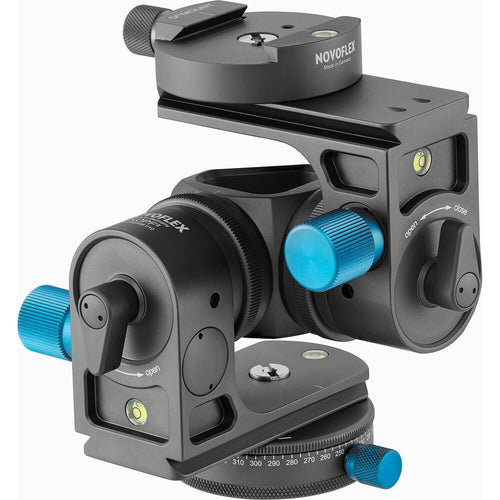

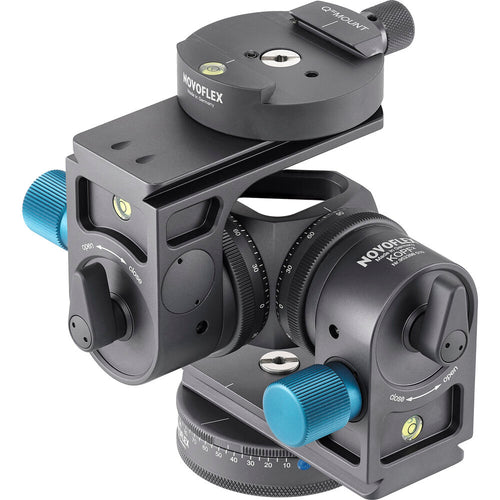

Novoflex Kopf² Geared Head with Arca-Type QR Panorama Base

The Kopf² Geared Head with Arca-Type QR Panorama Base from Novoflex is a modular geared head that combines precise movements with independent adjustments in both axes. Coarse movements can be controlled using the clamping levers, while fine movements can be made using the adjustment knobs. The self-locking fine drive prevents unintended movement or drops of heavy equipment when the coarse movement lever is closed. The joints of the horizontal and vertical axes feature adjustable and zeroable angle scales for reproducible angular positions.

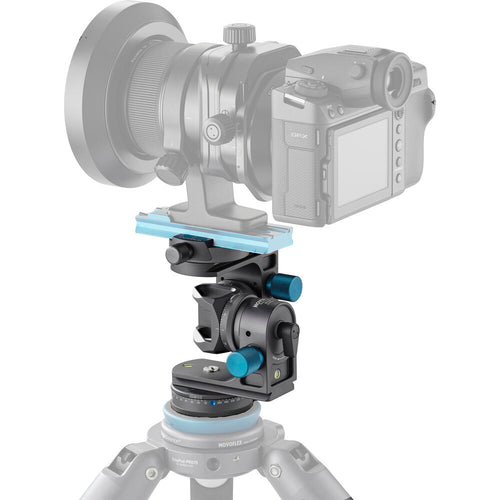

The upper and lower device mounting brackets are equipped with Arca-type dovetails for a wide range of accessory mounting options. The upper platform has a 1/4"-20 mounting screw and video pin holes for movement-free camera mounting.

The Arca-type compatible panoramic quick release set features an engraved 360° scale with 5° increments for precisely rotating a camera. The base has smooth movements and a locking knob to secure it in any position. Its integrated quick release clamp and mounting base are compatible with Arca-type UniQ/C plates and accessories.

Key Features:

Arca-Type Dovetail Mounts

Precise Angular Movements

Coarse and Fine Geared Movements

+/-90° Zeroable Angle Scales

120-230° Adjustment Range

Converts for Left-Hand or Right-Hand Use

4 Bubble Levels

What's in the Box:

Novoflex Kopf² Geared Head with Arca-Type QR Panorama Base

Novoflex Panorama Base with Arca-Type QR Clamp
