Overview

As aiming at professional film industry that calls for more portable and versatile equipment, Nanlux Evoke 1200B LED Spot Light 5600K won wild applause when released as signature product under NANLUX. Ever since, NANLUX have been exploring the possibility for Evoke evolution. Now legend the Nanlux Evoke 1200B LED Spot Light 5600K, a whole new Bi-colour Spot Light, is officially launched! Nanlux Evoke 1200B LED Spot Light 5600K expects to change the game for large productions that demand precision lighting on subtlety, offering cinematographer & gaffer a new weapon to get the job done on professional TV & film sets.

Hight Output, Refresh Imagination

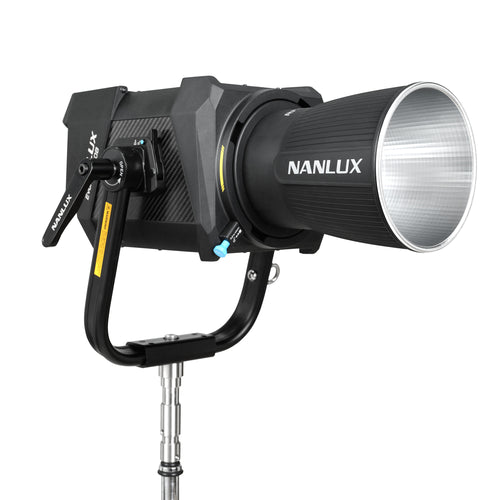

The Nanlux Evoke 1200B LED Spot Light 5600K adopts 2X1200W LED chips in dot matrix form as light source, provides an impeccable beam in the same category. Keeping the NL mount, Evoke 1200B achieves a remarkable light efficiency, outputting up to 18,570 lux@3m 5600K with 45 Degree reflector, beating 1.8K HMI Par or 2.5K fresnel with the ability of changing CCT in a twist. The Evoke 1200's impressive flicker-free function has been loaded into the Evoke 1200B as well.

Combined LED's iconic advantages with the high luminous efficacy and non-preheated requirement, the Evoke 1200B is a revolutionary weapon for DPs and gaffers.

2700K-6500K Wide CCT Range From Sunrise to Daylight to Sunset

The Nanlux Evoke 1200B LED Spot Light 5600K features advanced Bi-Color light mixing technologies ensuring continuity and accuracy in CCT change from 2700K all the way up to 6500K. The CCT adjustment will be easily made at the turn of a knob, making CTO/CTB gels a thing of the past, it also offers way more flexibility in filmmaking by simulating natural light from sunrise to daylight to sunset. Furthermore, the incorporated constant output functionality supports through range CCT tuning without any intensity shift at all.

Developed for professionals who care about the quality of colour rendition, the Nanlux Evoke 1200B LED Spot Light 5600K brings excellent colour rendering capability in real shootings proof by all the ratings.

• Average 96 CRI
• Average 97 TLCI
• Average 79 SSI
• Average 95 TM-30 Rf
• Average 102 TM-30 Rg

IP54 RATING

Anywhere? Everywhere!
The Nanlux Evoke 1200B LED Spot Light 5600K's whole-fixture IP54 rated in hermetically sealed structure to withstand inclement weather or extreme conditions, no matter it's rain, snow or dust. The protection for power supply is enhanced to the same rating for more practicality, meaning the whole unit can stand side by side as long as the camera could work, rainforest, snowberg or even in sandstorm, you name it.

0.1% Increments Fine-tuning for Precise Adjustment

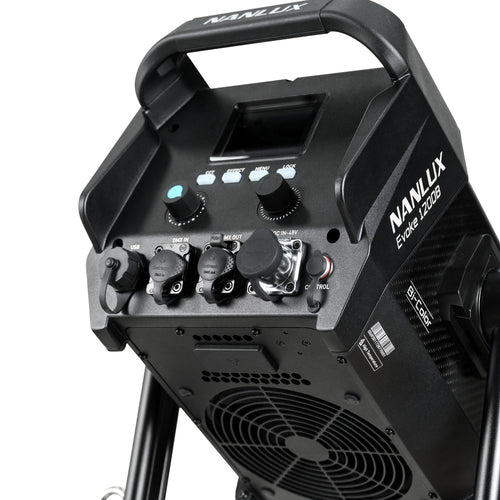

With a simplified and intuitive menu interface visualized on a 2.8-inch display, the Evoke 1200B is easy to control in all aspects, and familiar to existing NANLUX and NANLITE fixtures.

Dimming is fine-tuned from 0-100% in 0.1% increment with great smoothness, and the sudden jump in low output section between 0-1% is eliminated. Five dimming curves available via DMX control to perfectly match exacting control request of industry standard: LINEAR, EXPONENT, LOGARITHM, S CURVE, GAMMA 2.2.

Limitless Connecting Options
Permits comprehensive wired/wireless controlling solutions to seamlessly integrate into various on-set workflows. Wired and wireless DMX control in particular makes precise and digital lighting control on set a sure thing - can be connected to DMX console via 5-pin cable or controlled wirelessly through the built-in LumenRadio Timo Two module. Both reliability and flexibility are on the table for you to bring creative ideas to life.

LumenRadio CRMX
LumenRadio Timo Two's both transmitting and receiving functions makes connection with other fixtures easy and stable.

NANLINK App
Connects NANLINK lighting control system via built-in 2.4G or Bluetooth to offer accurate and professional control at your fingertips.

DMX/RDM
Wire connects to DMX console via the on-board 5-pin XLR port to achieve stable and reliable control.

Designed for Frequent Use and A Long Lifetime
Thermal management of high power LEDs was crucial in the development of the Evoke 1200B. NANLUX created an even more efficient heat management system for Evoke 1200B to optimise heat dissipation while maintaining a compact fixture housing. This modification effectively achieves a higher efficiency and longer LED lifetime in high running temperature, compared to common LED lighting.

An enhanced fan control system with 4 operation modes for various shooting scenarios and environments

Smart Mode
Smart sensors that adapt to the ambient temperature, allowing for real-time monitoring of LEDs temperature and automatically adjust the fan speed to offer better dissipation and a minimal noise level.

Full Speed Mode
Heat dissipation boosted in high speed mode to meet the shooting requirements under high temperature environment.

Low Speed Mode
Limit the noise level within acceptable range for recording on set while discharging heat effectively. Maximum output is 50% in low speed mode.

Off Mode
Fan shut down to minimise the noise level for an optimal sound environment. Maximum output is 10% in off mode.

Classic Structure Design Compact and Efficient
Inherits the design essence from Evoke 1200 - Aluminium die casting alloys used for its construction, the weight of light fixture is kept at 7.75kg, only 70% of a 1.8K HMI, giving it an edge in terms of transportability while retaining the necessary intensity. All basic controls are integrated on the lamp head and easily accessible.

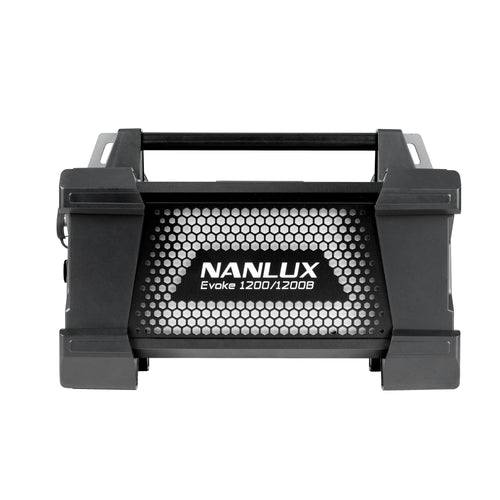

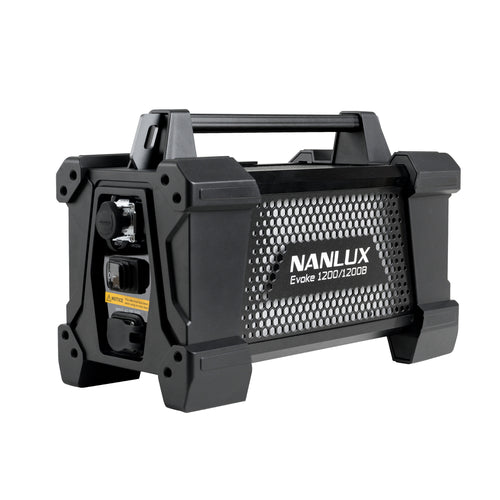

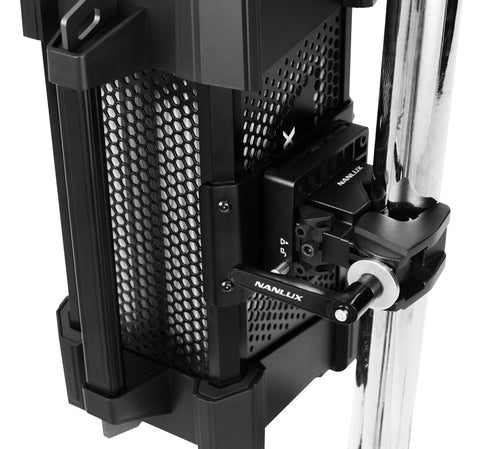

Quick Release Clamp
Secures the power supply tight on light stand & truss.

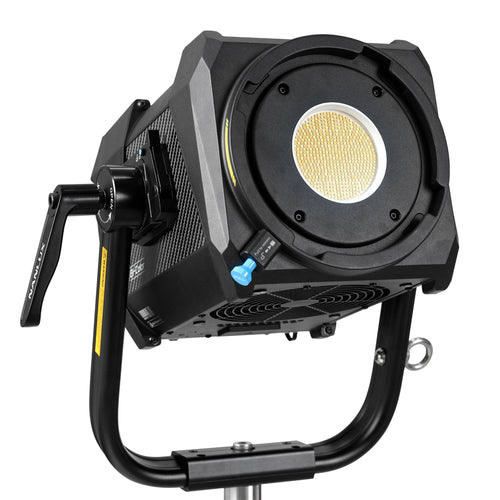

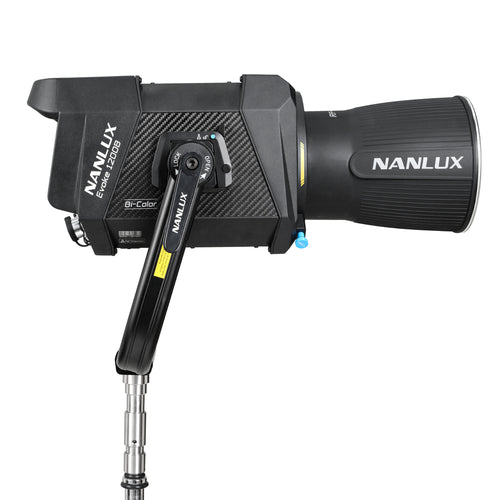

Offset Yoke
New offset yoke design with 15 Degree for greater range of tilting while using softboxes and other light shaping accessories.

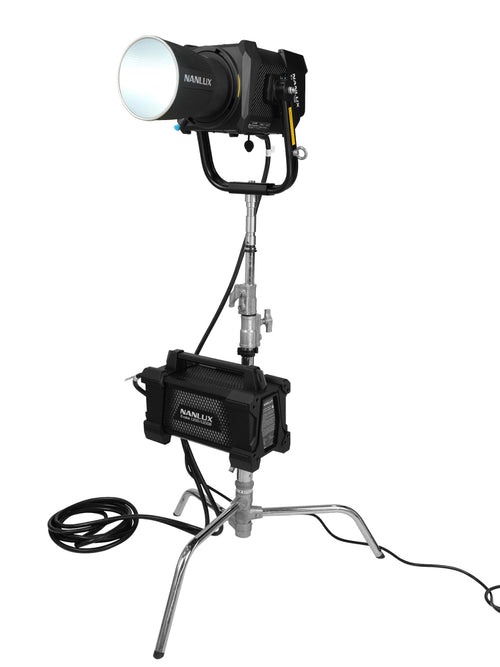

DC Connection Cable
Offers 7.5M DC cables as standard and 10M & 12M connection cable as optional, extending the power supply distance. The self-locking connector allows for quick and tight connection.
