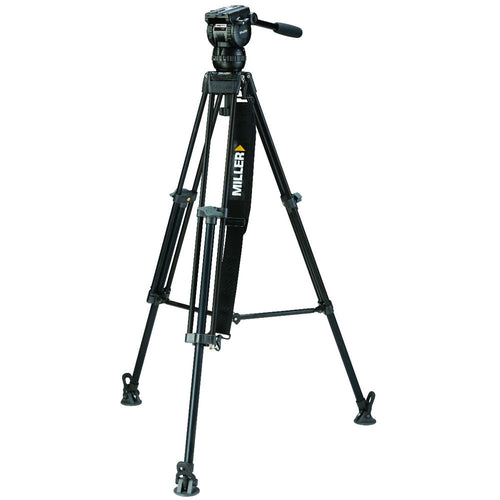

Miller CX2 Fluid Head with Toggle 75 1-Stage Alloy Tripod System

Designed for light loads such as DSLRs, mirrorless cameras, and camcorders, this Miller CX2 Fluid Head with Toggle 75 1-Stage Alloy Tripod System is stable, adjustable, and overall production-ready. The CX2 head supports loads up to 8 kg, offers 16 steps of counterbalance, and has single-stage toggle legs for easy setup and stable torsional support. For more information on the fluid head and legs that make up this system, check out the descriptions and features below.

SKU: GC140-3702

Miller CX2 Fluid Head with Toggle 75 1-Stage Alloy Tripod System

Miller CX2 Fluid Head with Toggle 75 1-Stage Alloy Tripod System

Designed for light loads such as DSLRs, mirrorless cameras, and camcorders, this Miller CX2 Fluid Head with Toggle 75 1-Stage Alloy Tripod System is stable, adjustable, and overall production-ready. The CX2 head supports loads up to 8 kg, offers 16 steps of counterbalance, and has single-stage toggle legs for easy setup and stable torsional support. For more information on the fluid head and legs that make up this system, check out the descriptions and features below.

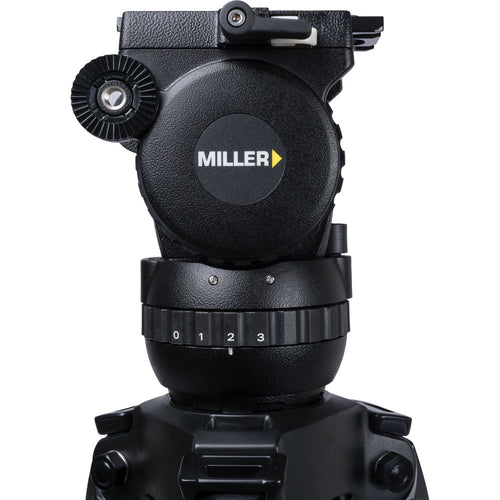

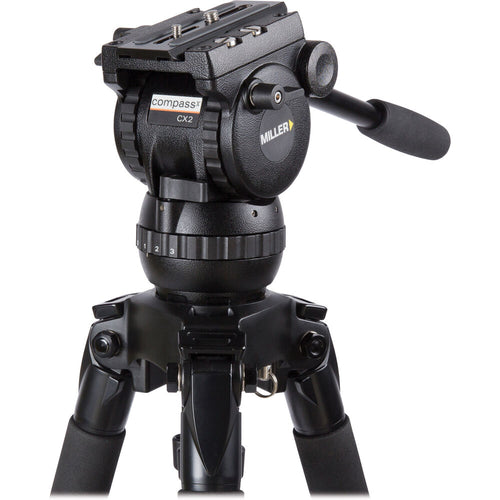

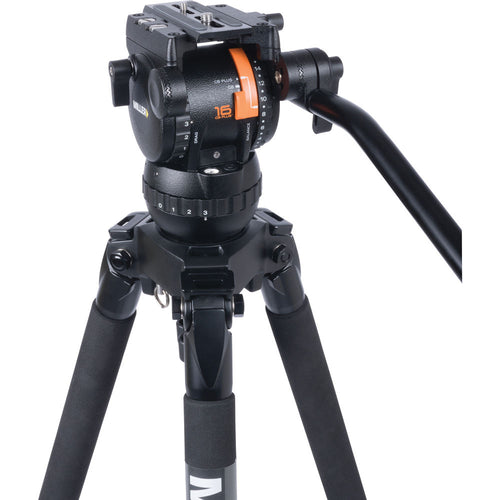

Miller CX2 Fluid Head

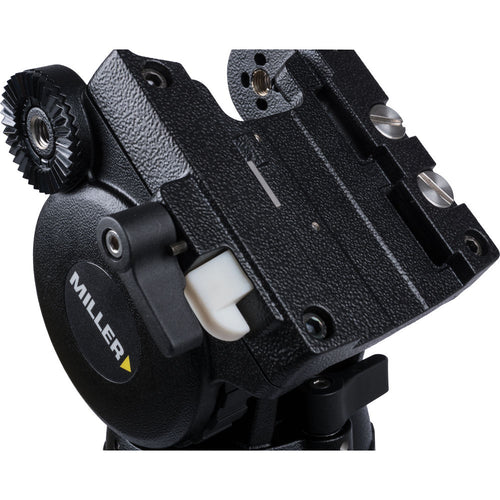

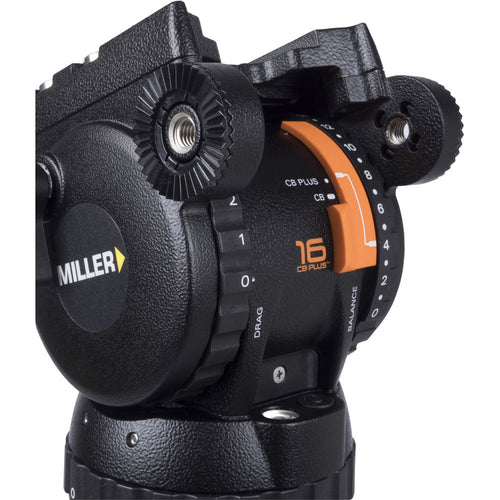

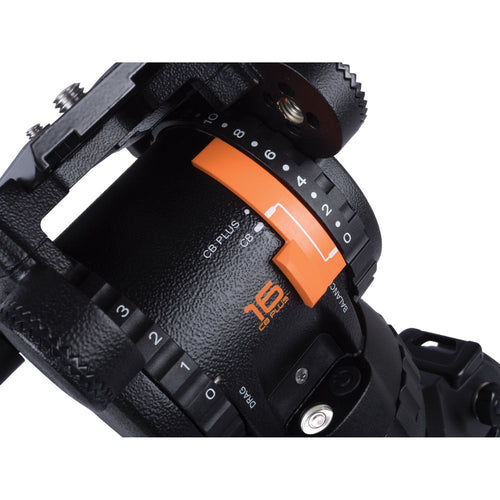

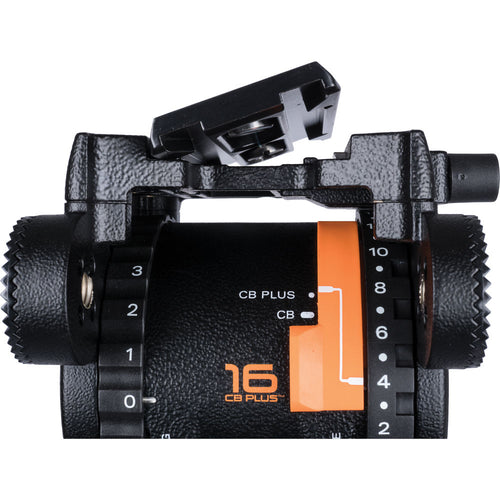

The Miller CX2 Fluid Head is designed to accommodate a wide payload range with 16 steps of counterbalance. Pan, tilt, and counterbalance can all be set to zero, enabling even the lightest of cameras to be supported. Maxed out, this head is rated to support camera setups up to 8 kg, suitable for a DSLR or mirrorless camera rig, a smaller cinema camera, or a small ENG camcorder. Securing your camera or rig is easy. The sideload plate design enables you to simply drop in your camera without the alignment issues posed by rear-loading variations. The plate offers 2.4" of sliding range to balance your rig.

To survive fast-paced shooting environments, the CX2 is die-cast from a lightweight, yet durable metal alloy with composite polymers and precision ball-bearings for smooth mechanical operation. Even in harsh conditions, the CX2 will perform reliably. The base of the CX2 is a 75 ball for mounting to compatible tripods and grip equipment. An illuminated bubble level makes it easy to level the CX2 in dark environments. A pan handle with a 15.4" fixed length is included and a second rosette is incorporated for attaching an optional second pan handle.

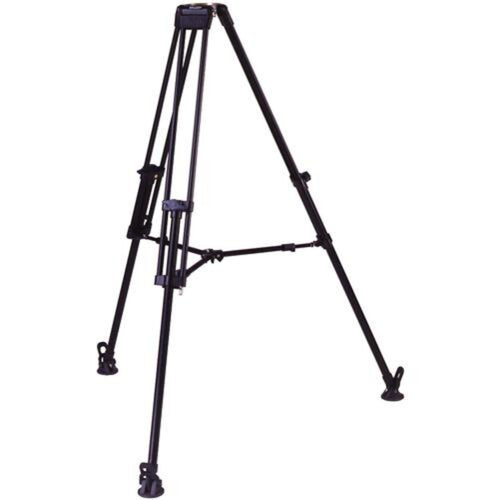

Miller Toggle 75 1-Stage Alloy Tripod (Mid-Level Spreader Ready)

The Miller Toggle 1-Stage Alloy Tripod is designed to be a compact yet sturdy platform for your 75mm ball-base fluid head. The single-stage design allows for a 24.4 to 52.4" height range while maintaining a folded length of 32.7". Each stage features its own rotary clamp for secure locking, enabling support for payloads up to 25 kg. Compatible spreaders, rubber feet, and dollies are available separately.

Miller Pan Handle for Compass15 and Compass20 Fluid Heads

The Miller Pan Handle for Compass15 and Compass20 Fluid Heads is a 16mm fixed-length pan arm. The main tube is black-anodized aluminium alloy and features a comfortable rubber grip.

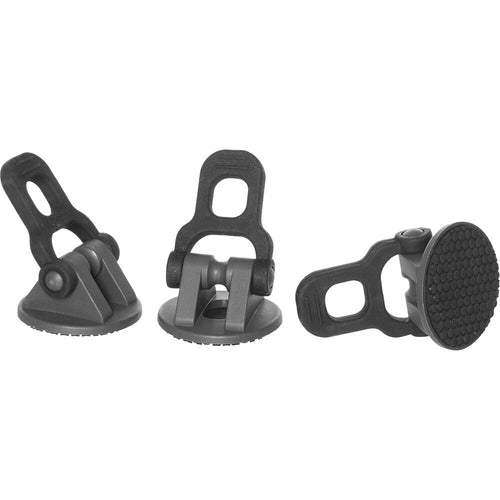

Miller 550 Rubber Feet Pads for Select Tripods (Set of 3)

The 550 Tripod Feet from Miller are a set of three rubber snap-on feet designed to be used in any situation where the integrated dual spiked feet are not optimal. They are ideal for use on both slippery and glossy floors. These rubber feet are compatible with all tripods featuring 835 and 508 above ground spreaders.

Miller 835 Non-Adjustable Above-Ground Tripod Spreader - for 440 Tripod

A Mid-Level Spreader is chosen when shooting is often performed on uneven surfaces, such as steps, rocky ground, slopes. It allows for rapid set-up and pull down by keeping tripod legs at an equal or preset distance relative to each other. Attaches to the center bracket of a tripod and folds down within tripod without having to take it off.

Speedy set-up for all lightweight tripods

Quick release attachment pins

Integrated in DS5 and DS10 systems with lightweight tripods

Miller 554 HD Shoulder Strap - for all Tripods

The Miller 554 HD Shoulder Strap is a tripod carry strap designed for the Miller Sprinter series tripods. It is a 2 inch wide strap that works with folded tripods from 25" to 36" and has a 3" long shoulder pad.

2 inch wide tripod carry strap

3" long shoulder pad

Compatible with:

Miller Sprinter tripods

Sachtler Hot Pods and other models with a key ring to attach a strap

Any tripod 25" to 36" long with a key ring to attach a strap

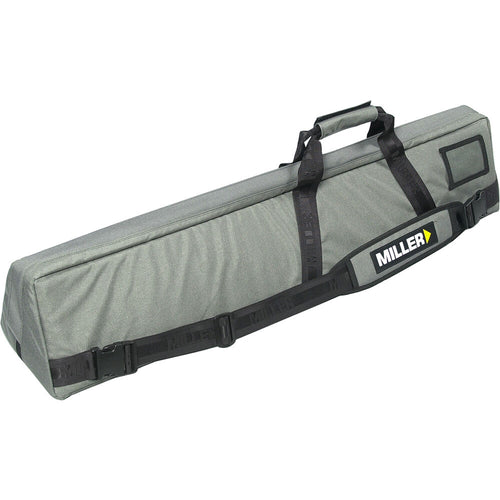

Miller 874 Soft Tripod Case - for DS 1-Stage Systems (Except with HD Tripod)

The Miller 874 Soft Tripod Case is a padded tripod carry case designed for the Miller DS single stage tripod systems. It has rigid sidewalls sandwiched between high density foam padding and a head-end cradle to protect the tripod and fluid head from heavy bumps during flight and vehicle transport. It has a weatherproof Cordura construction with heavy duty zippers on the bag and the interior pocket. The case is carried by either the padded interlocking carry straps or the padded shoulder strap.

1000 denier water-resistant Cordura fabric

Rigid sidewalls sandwiched between high density EVA foam padding

Head-end cradle protects fluid head from heavy bumps during flight and vehicle transport

Padded interlocking carry straps and padded shoulder strap

1 Interior accessory pocket

Heavy duty zippers on bag and pocket

ID window

Compatible with:

Miller DS single stage system tripod

Key Features:

CX2 Fluid Head with Sideload Plate

0-8 kg Load Capacity

For Camcorders, DSLRs & Mirrorless

16-Step Counterbalance

Toggle 75 Tripod Legs

24-52" Height Range

What's in the Box:

Miller CX2 Fluid Head

Miller Standard Camera Plate for AIR, DS10, DS20, Compass, CompassX Heads (2.4")

Miller Pan Handle for Compass15 and Compass20 Fluid Heads

Miller Toggle 75 1-Stage Alloy Tripod (Mid-Level Spreader Ready)

Miller Pan Handle for Compass15 and Compass20 Fluid Heads

Miller 550 Rubber Feet Pads for Select Tripods (Set of 3)

Miller 835 Non-Adjustable Above-Ground Tripod Spreader - for 440 Tripod

Miller 554 HD Shoulder Strap - for all Tripods

Miller 874 Soft Tripod Case - for DS 1-Stage Systems (Except with HD Tripod)

Padded shoulder strap
