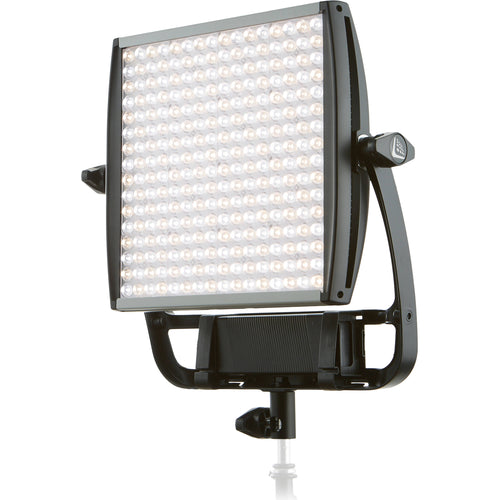

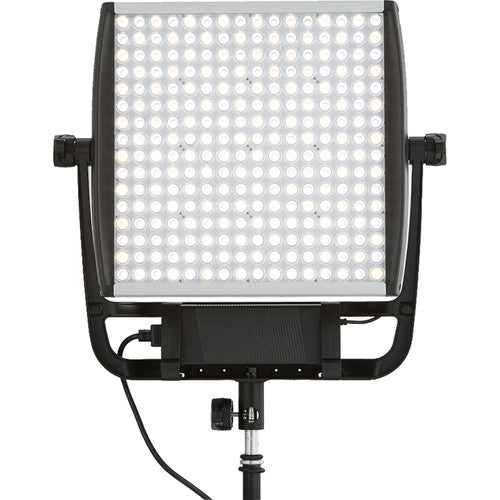

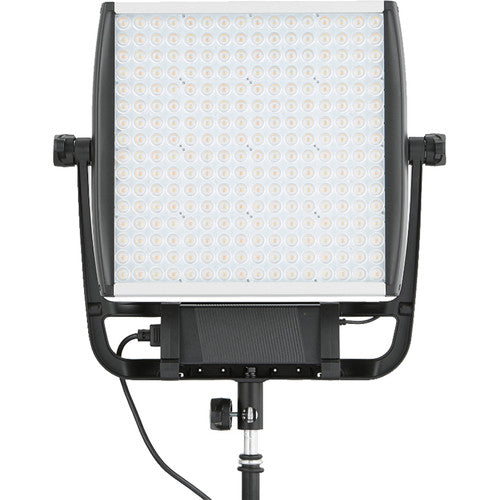

The Astra 3X Bi-Color LED Light Panel from LitePanels offers significantly brightness due to the use of tightly-binned LEDs and fine-tuned TIR (Total Internal Reflection) optics, resulting in a longer throw over a wider field. It offers flicker-free 0-100% dimming with no visible color shift, and has a high CRI of 95 for accurate color rendering

The Astra's functions may be adjusted locally using the intuitive built-in controls, or operated remotely with one of the optional DMX512 Modules, available in XLR 5-Pin, RJ-45, or Wireless formats. Each module provides Master/Replica configuration for the control of single lights, or multiple light fixtures in a network or daisy chain. In addition, the Astra Bluetooth module provides the same kind of control of single or multiple lights from a portable device, using the free LitePanels SmartLite app download. The accessory modules slide into place on the rear of the Astra panel simply and quickly, with no wiring or complex installation required.

The Astra 3X Bi-Color comes with both US and EU power cables, plus a universal (100-240 VAC) adapter. It also operates on 13-24 VDC batteries by using V-Mount or Gold Mount battery plates, available separately. The unique curved yoke design features a TVMP connector for hanging or stand mounting the panel almost anywhere, and two additional 1/4"-20 female taps offer alternate mounting points.

High Output

High performance LEDs with custom paired optics

Higher intensity equals longer throw with wider effective beam spread

Superior Color Reproduction

High CRI and TLCI color rendition

Efficient Thermal Management

Completely silent passive cooling

Smooth Dimming from 0-100%

No noticeable color shift throughout the entire dimming range

Flicker-free at any frame rate or shutter angle

DMX512 and Bluetooth Control with Optional Modules

Control both individual units and groups using the one of the three available, optional DMX512 control modules. DMX512 5-pin XLR, RJ45, and DMX Wireless modules are available, each remotely controls panel brightness, color temperature, and cooling settings

Optional Bluetooth control module allows individual and group light control from a portable device with the LitePanels SmartLite app, available as a free download

Modern, Modular Fixture Design

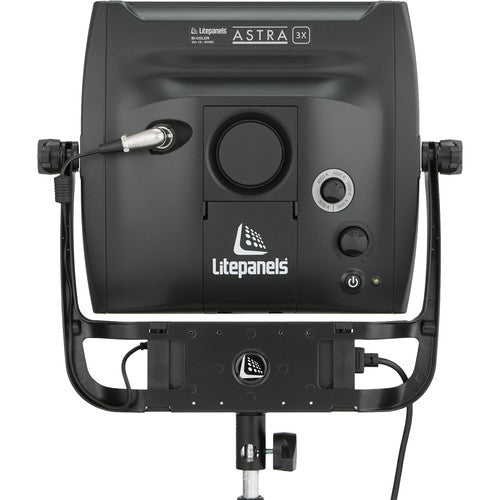

Easily identifiable and ergonomic manual controls for dimming, color, and power status

Aluminum I-beam core construction to provide maximum durability and superior thermal management

Aluminum accessory mounting points and lens/filter rails

End cap exhaust vents angle downward to direct air flow away from the fixture and help prevent foreign material from entering

Durable, industry standard 3-pin XLR locking power connector

Optional yoke mounted Gold Mount or V-Mount battery plates

External power supply

Custom Curved Yoke Design

Wide, unobstructed tilt range

Yoke mounted power supply and optional battery plates with dual integrated cable guides

Removable TVMP connector for flexible mounting options

Two alternate 1/4"-20 mounting points

Compatibility

Litepanels Astra 3X Bi-Colour Panel Standard Yoke Litepanels

Key Features

• For Studio & Film/TV Production
• Output: 3714 Lux at 3.3' (46°)
• 3200 to 5600K; Bi-Color Control
• 17.7 x 16.3"; AC/DC Operation
• CRI 95 | TLCI 95
• On-Board Controls
• Optional DMX, Wireless DMX, Bluetooth
• Passive Cooling for Silent Operation
• Multi-Voltage AC, Optional Battery Power
• Includes Yoke, Power Supply, AC Cable
