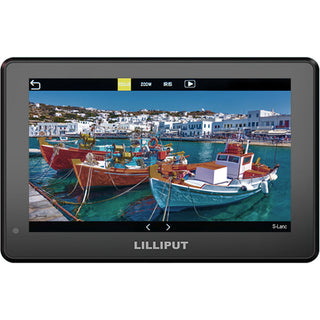

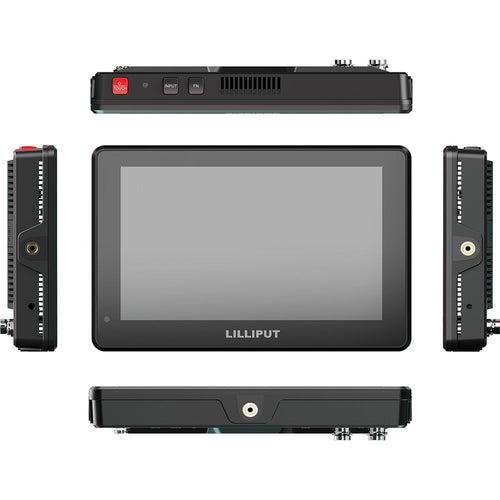

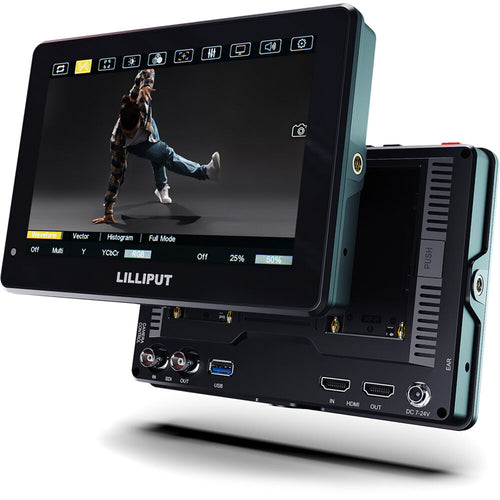

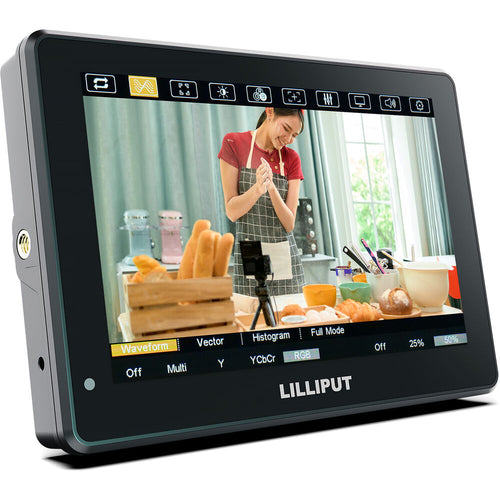

Lilliput HT7S 7" On-Camera Control Monitor with LANC Camera Control

Monitor your 4K camera images with the HT7S 7" On-Camera Control Monitor with LANC Camera Control from Lilliput. The HT7S features 3G-SDI and HDMI 2.0 inputs, making it suitable for DCI 4K24 and UHD filmmaking and photography. Using the included LANC cable, you can control a variety of camera functions from the display's touchscreen. With a 16:10 aspect ratio, an ultrabright 2000 cd/m&sup2: display, and a 1200:1 contrast ratio, the LCD panel displays Full HD images natively in 1920 x 1200, scaling higher resolutions. The HDMI loop-through output function allows you to output via 3G-SDI or HDMI to any other compatible device.

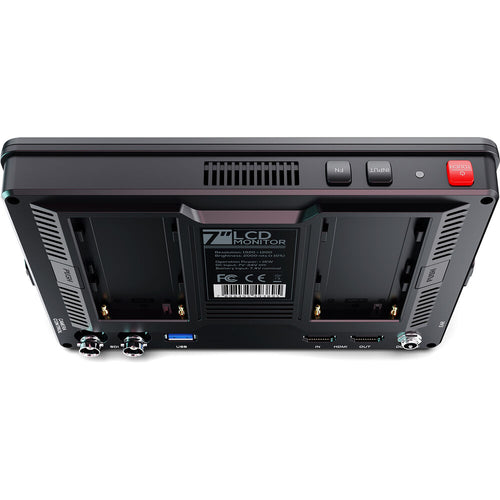

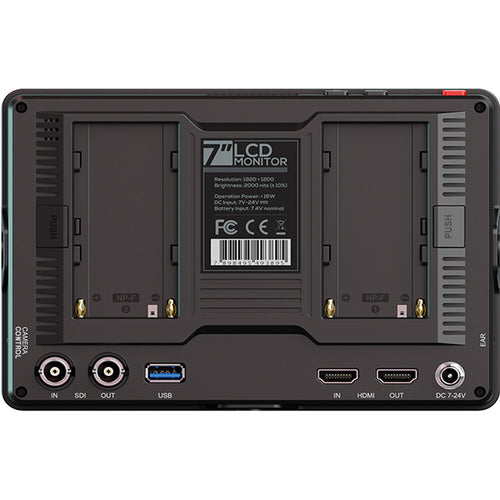

The HT7S supports loading 3D LUTs via the USB port on the bottom, and it supports HDR image input with the ability to display a wide dynamic range such as ST2084-300, ST2084-1000, ST2084-10000, and HLG (Hybrid Log Gamma). On the back of the monitor is a dual L-series battery plate, so you can power the monitor for a long shoot. The batteries are also hot-swappable, so you can charge one battery and then swap out the other while the monitor is in use, without having to power it down.

The monitor features a speaker, a headphone jack, a tally input, and numerous control and function buttons around the display. You can create shortcuts to your favorite and most used monitor functions using the two customisable function keys. You can mount the monitor onto your camera by attaching the included shoe mount adapter to the 1/4"-20 with threads on the bottom or sides. An HDMI type-A to type-C cable, a tally cable, a power adapter, and a carry bag are also included in the box.

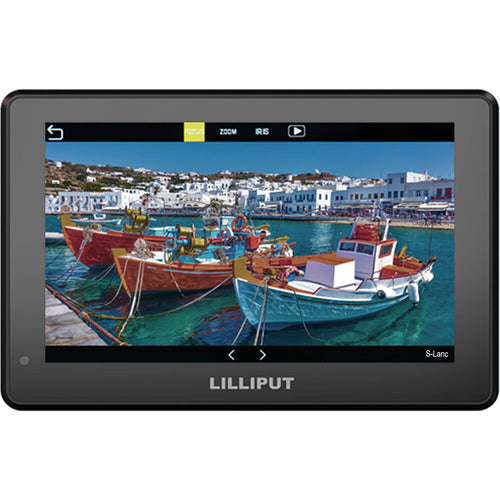

The included LANC cable allows you to control select camera functions such as focus, zoom, iris, and record/stop, with LANC compatible cameras from the monitor's touchscreen display.

Support for 3D LUTs with 17 default logs and 6 user logs that can be loaded via the USB port on the bottom of the monitor.

Advanced functions: pixel zoom, level meter, peaking, false colour, histogram, H/V delay, exposure, check field, image flip, pixel-to-pixel, markers, aspect ratio, timecode, and freeze.

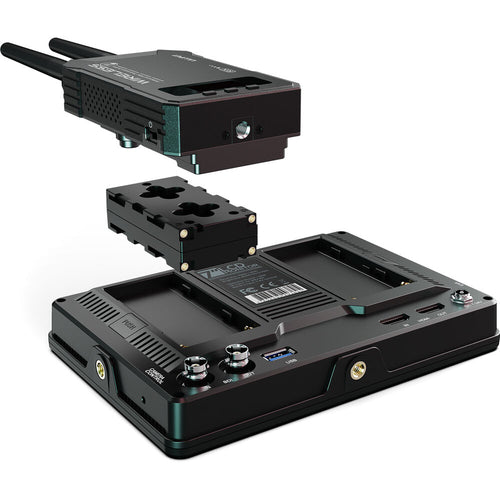

An optional NP-F adapter allows you to mount an external device to one of the L-series plates and use it to power the monitor.

Key Features:

1920 x 1200 Native Touchscreen

Supports up to DCI 4K Input

2000 cd/m² Brightness, HDR Support

1200:1 Contrast Ratio, 16:10 Aspect

HDMI 2.0/3G-SDI Inputs/Outputs

Hot-swap Dual L-series Battery Plate

HDR Support, Load 3D LUTs via USB

Speaker, Headphone Jack

1/4"-20 Mounting Threads

180° Tilting Shoe Mount

What's in the Box:

Lilliput HT7S 7" On-Camera Control Monitor with LANC Camera Control

Tilting Shoe Mount Adapter

LANC Cable

HDMI Cable

USB Flash Drive
