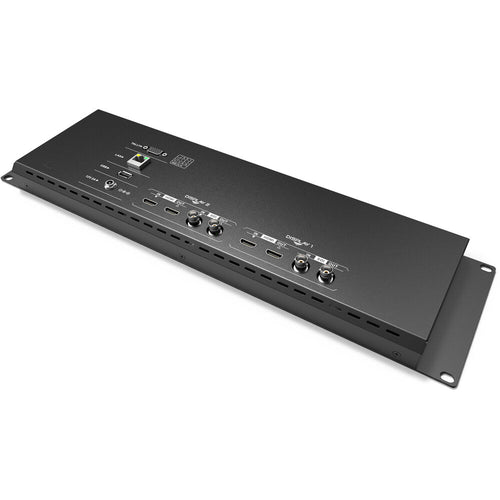

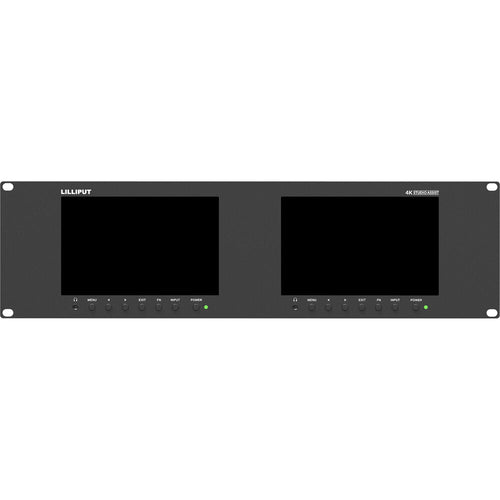

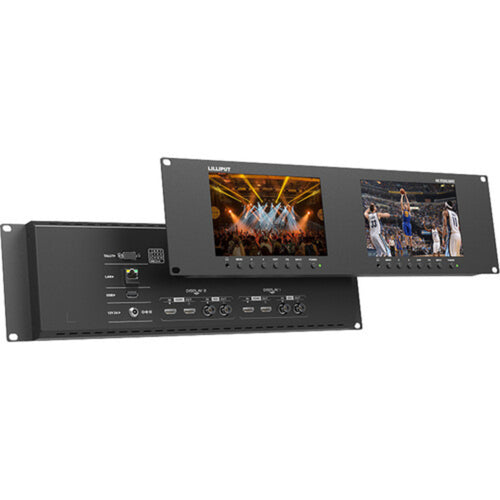

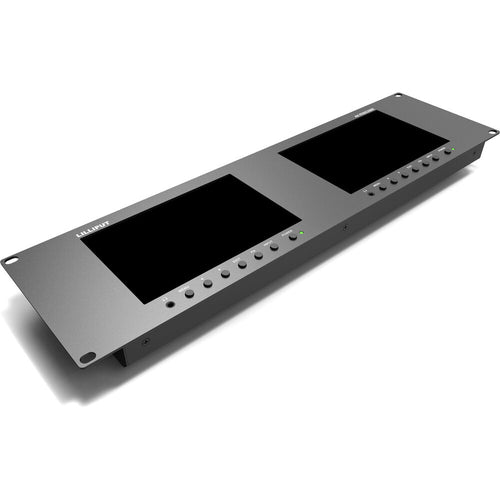

Lilliput Dual 7" Rackmount Monitors with 3G-SDI & HDMI (3 RU)

Monitor two different cameras simultaneously for your next live broadcast using the 1920 x 1200 resolution Lilliput Dual 7" Rackmount Monitors with 3G-SDI & HDMI, which can be installed in a video wall or broadcast truck thanks to its 3 RU form factor. Various video assist functions such as false colour, histogram, and timecode are independently available for each monitor, allowing production managers to easily and precisely analyse image quality. Custom 3D-LUTs can be uploaded using the USB-A input for accurate colour comparison.

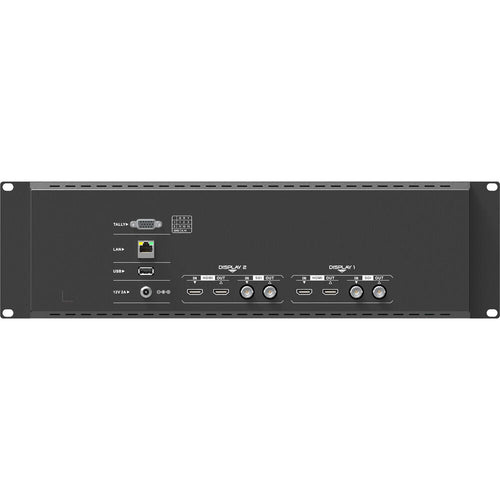

Two 3G-SDI and two HDMI inputs support video up to 1080p60 and 2160p60 respectively. There are also two 3G-SDI and two HDMI loop outputs, which expand your display options. Control for both monitors is possible with the onboard buttons or using the LAN input and a connected computer to adjust settings like picture, marker, function, source, audio, and tally light. Audio can be monitored via the two 3.5mm headphone jacks.

3D-LUTs

Supports cube files uploaded via the USB-A input.

Built-in 17 default logs and six user logs.

Makes colour calibration of previous shooting more intuitive.

HDR

When activated, the display reproduces greater dynamic of luminosity.

Allows lighter and darker details to be more visible.

Supports ST-2084 300, 1000, 10,000, and HLG.

Video Assist Functions

Check field

Colour bar

Exposure

False colour

Freeze

Histogram

Level meter

Markers

Peaking

Pixel to pixel

Pixel zoom

Timecode

Key Features:

1920 x 1200 LCD 7" Screens

For Video Wall or Broadcast Truck

3G-SDI and HDMI Inputs/Outputs

Supports up to 1080p SDI and 2160p HDMI

Load Custom 3D LUTs via USB

Support for HDR

Ethernet Input for Control

Headphone Jack per Display

What's in the Box:

Lilliput Dual 7" Rackmount Monitors with 3G-SDI & HDMI (3 RU)

Power Adapter (12 VDC, 2A)

Tally Connector
