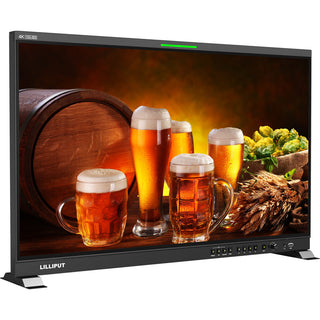

Lilliput 31.5" 12G-SDI/HDMI Broadcast Studio Monitor (Gold Mount)

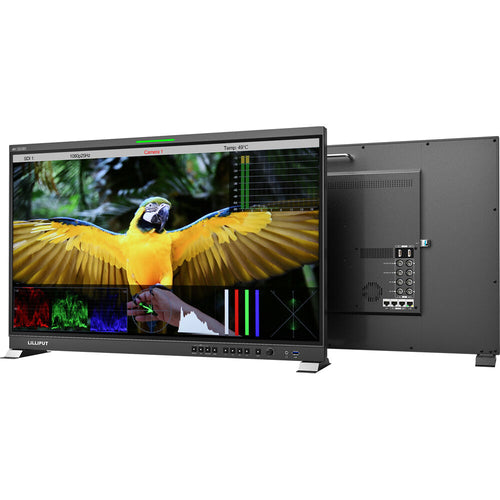

The Lilliput 31.5" 12G-SDI/HDMI Broadcast Studio Monitor is a 31.5" native UHD 4K monitor with a Gold mount battery plate¸ useful for both studio and field situations. Supporting up to DCI 4K (4096 x 2160) and UHD 4K (3840 x 2160)¸ the monitor features one HDMI 2.0 input and four SDI inputs (two 12G¸ two 3G)¸ allowing for single-¸ dual-¸ and quad-link SDI input. The monitor also features loop-through HDMI and SDI outputs to pass the signal downstream. For critical colour work¸ the monitor supports the PRO/LTE version of LightSpace CMS (not included).

Input video signals are automatically scaled to fit the entire 3840 x 2160 screen. Audio embedded in the HDMI and SDI signals play through the monitor's speakers¸ and a 3.5mm headphone jack allows you to monitor without outside noise. The monitor also supports adjustable HDR colour spaces¸ including HLG¸ and you can select from 17 built-in 3D-LUTs or import six of your own. In the studio¸ the included power supply allows you to power the monitor from a mains outlet via the 4-pin XLR port¸ or you can power it from a Gold mount battery using the included battery plate. The monitor comes with a mounting bracket for desktop use and a VESA mounting plate for mounting in the field.

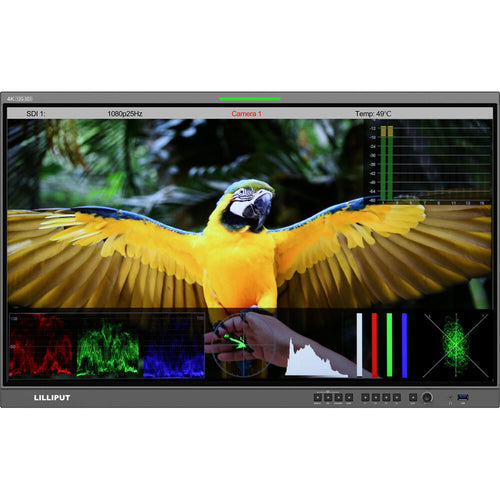

Monitoring Tools

Peaking

Check field

Image rotation/flip

Overscan

Underscan

Image freeze

Pixel-to-pixel

False colour

Exposure

Histogram

Timecode (SDI-only)

Aspect ratio selection

Screen markers

Colour space

HDR

Colour temperature adjustment

HDR and 3D LUTs

When HDR is activated¸ the display reproduces a greater dynamic range of luminosity¸ allowing for colours and lighter and darker details to be displayed more clearly. You can use preset Logs or load your own custom LUTs in .cube format via the front panel USB port.

Supported Log Formats

SLog2. SLog3¸ CLog¸ NLog¸ ARRILiog¸ JLog¸ and User.

Supported HDR

ST2084 300/1000/10000/HLG.

Audio

The monitor can display the Lissajous shape¸ most useful when used in audio post-production work for detecting phase variance.

Assignable Buttons

Using the four assignable buttons on the front panel¸ you can quickly turn any four essential monitoring tools on and off without venturing into the monitor's menu system.

Remote Control

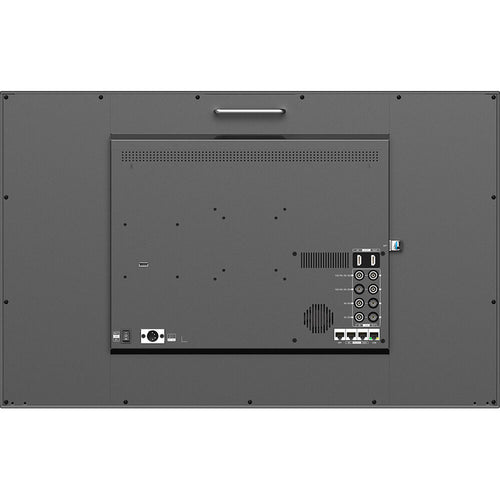

The monitor supports RS-422 via discrete in and out RJ45 connectors. This allows you to control the monitor from computer applications¸ as well as link multiple monitors together.

Calibration

The monitor supports colour calibration using an optional PRO/LTE version of LightSpace CMS¸ to ensure your monitor is displaying your image accurately.

Fiber

An integrated slot accepts an optional SFP+ module¸ should you require an SFP+ fiber connection.

Key Features:

31.5" 3840 x 2160 Resolution Monitor

Supports up to DCI 4K Input

Supports Accurate Colour Calibration

HDR Support¸ Load Custom 3D LUTs

178° H/V Viewing Angle

350 cd/m² Brightness

1300:1 Contrast Ratio

On-screen Markers¸ Focus Peaking

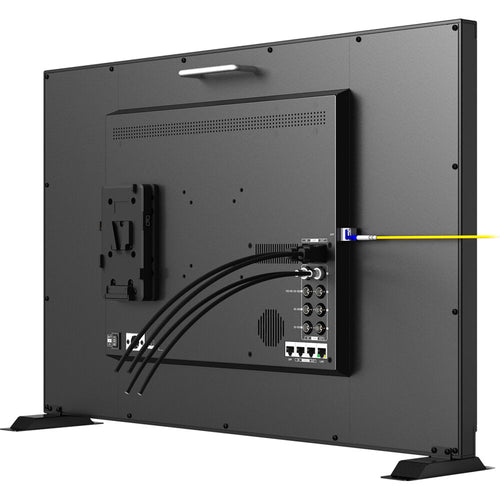

Gold Mount Battery Plate

XLR 4-pin 12-24 VDC Power Input

What's in the Box:

Lilliput 31.5" 12G-SDI/HDMI Broadcast Studio Monitor (Gold Mount)

Gold Mount Battery Plate

Power Adapter

VESA Mount Plate

Base Bracket

USB Flash Disk
