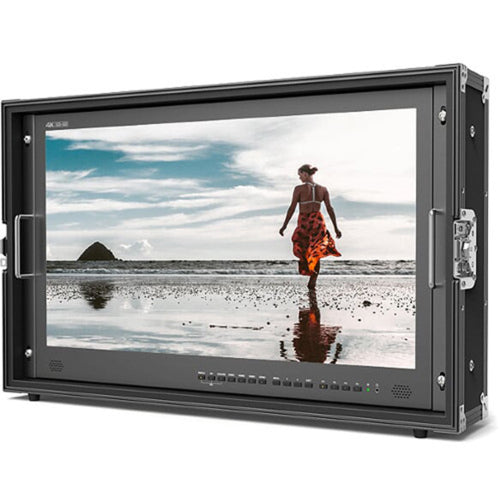

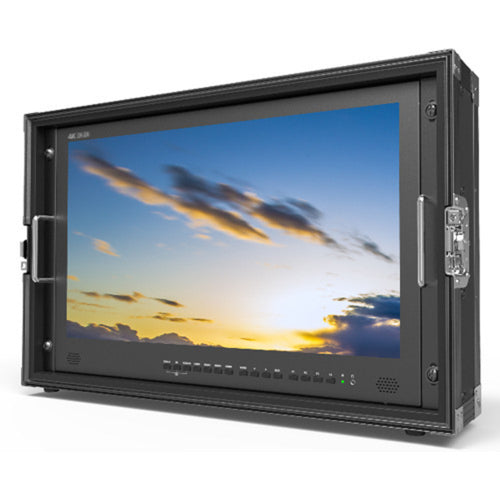

Lilliput 28" 12G-SDI 4K IPS Monitor (Gold Mount)

The 28" 12G-SDI 4K IPS Monitor from Lilliput provides you with UHD 4K 3840 x 2160 resolution and a 300 cd/m² brightness, along with a 1000:1 contrast ratio and wide 170 x 160° viewing angle. The integrated Gold mount battery plate allows for longer-lasting runtimes. The monitor fits inside an included carry case for easy transportation and location work.

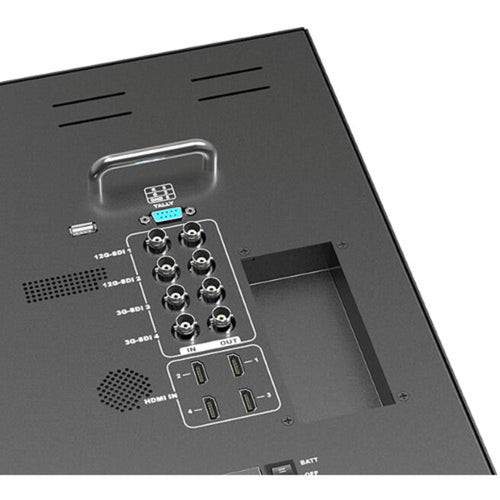

The monitor features two each 12G-SDI and 3G-SDI inputs with loop-through outputs, an HDMI 2.0 and three HDMI 1.4 inputs, and a tally input. It also features 12G-SDI single-link, dual-link, and 3G-SDI quad-link. The monitor supports quad-view, false colour, peaking, check field, image flip, overscan, underscan, image freeze, a 16:9 aspect ratio, center marker, screen marker, and colour temperature functions.

12G-SDI Dual/Quad Link

Complies with ST425-3 and ST425-5 standards. Allows for Square Division and Sample Interleave at 4K mode.

12G-SDI Single Link

Complies with ST2081-10 and ST2082-10 standards.

4K HDMI Signal Inputs

Compatible with HDMI 2.0 and HDMI 1.4 signals.

Auxiliary Functions

Provides auxiliary functions including:

Quad-view

False colour

Peaking

Check field

Image flip

Overscan

Underscan

Image freeze

Center marker

Screen marker

Colour temperature

Key Features:

28" 4K Display

300 cd/m² Brightness

170 x 160° Viewing Angle

12G-SDI, 3G-SDI, HDMI & Tally Inputs

What's in the Box:

Lilliput 28" 12G-SDI 4K IPS Monitor (Gold Mount)

Folding Sunshade

Battery Plate Bracket

Gold Mount Plate

Power Adapter

Fixing Belt

Tally Connector

Carry Case
