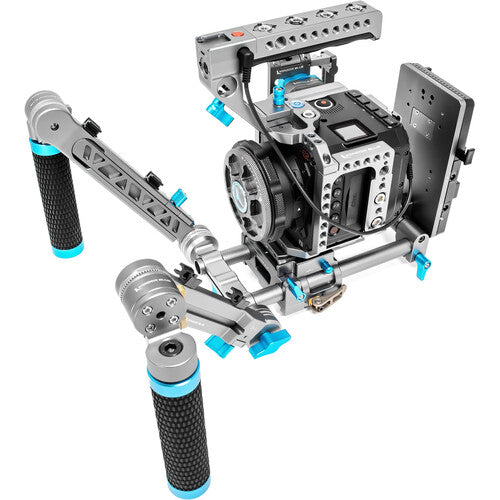

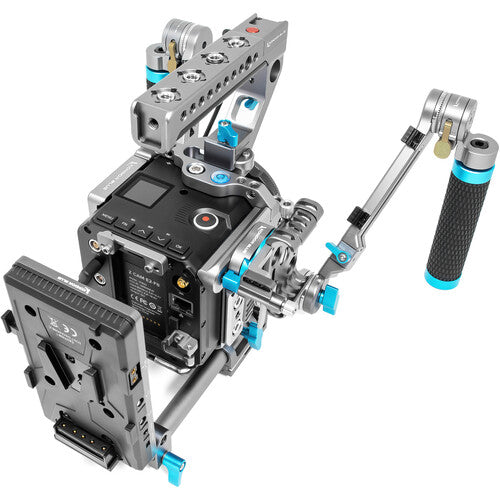

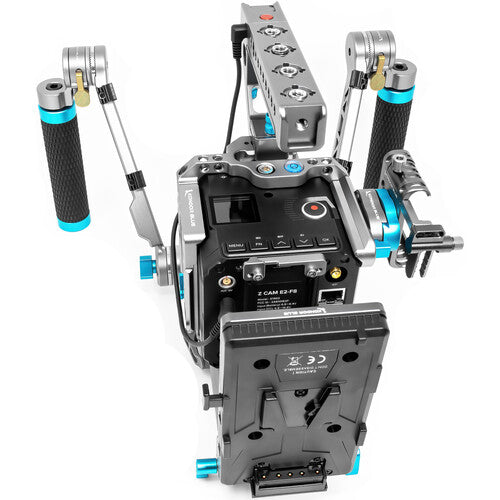

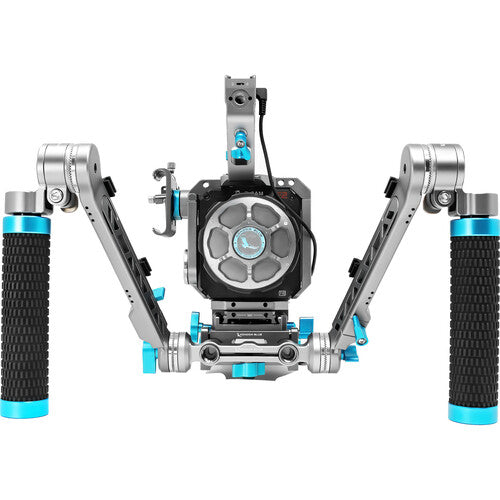

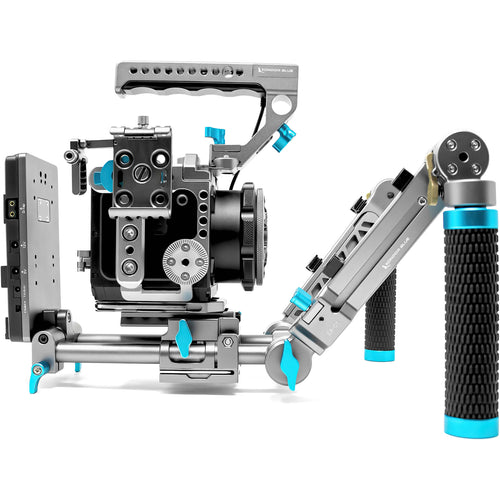

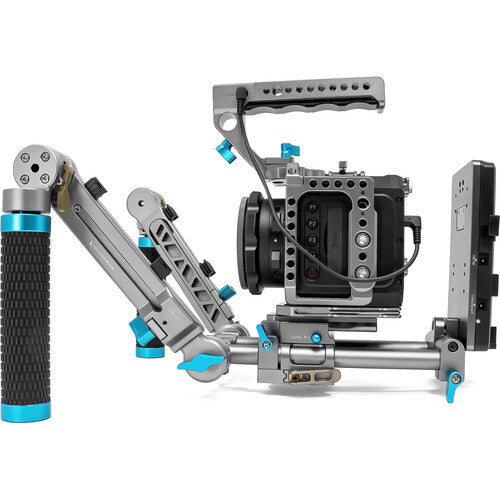

Kondor Blue Z Cam E2 Flagship Ultimate Rig M4/S6/F6/F8

The space gray Z Cam E2 Flagship Ultimate Rig M4/S6/F6/F8 from Kondor Blue is a near-complete kit featuring a baseplate, cage, top handle, and extension arms with handgrips. It also includes a V-mount battery plate and a D-Tap to LEMO 2-pin cable for your Z CAM E2 camera. The baseplate offers 15mm LWS rod support and comes with a Manfrotto 501-compatible quick release plate. This rig also comes with two 12" 15mm rods.

Kondor Blue Cage for Z Cam E2-S6, E2-F6, and E2-F8 (Space Gray)

Kondor Blue's Cage for Z Cam E2-S6, E2-F6, and E2-F8, in space gray, features an independent baseplate that secures to the bottom of the camera, and the rest of the cage attaches to the camera at other locations. Screws are supplied for this. The baseplate also has dedicated slots on the sides for keeping an included Allen key hidden away, so it can always be kept handy.

The cage offers a rosette mount on the side, a cable clamp, an integrated NATO rail on the top, left, and right, and a bubble level. It provides 1/4"-20 accessory threads, 1/4"-20 and 3/8"-16 tripod mount threads, and anti-twist ARRI Accessory Mounts, which can also be used as standard 3/8"-16 threads. The rosette mount comes attached on one side of the cage, while an optional second one can be installed on the other side to support grip handles. Additionally, the cage has front-facing M4 threads for mounting the optional Kondor Blue Speedbooster Bracket.

Key Features

• Independent baseplate with a rubber-padded camera platform and dedicated slots on the side for Allen keys (one Allen key is included)
• Baseplate and rest of cage attach to the camera separately with included screws
• Rosette mount on the side; optional second one supported
• Cable clamp
• NATO rail on the top, left, and right side of the cage
• Bubble level
• 1/4"-20 accessory threads
• 1/4"-20 and 3/8"-16 tripod mount threads
• Anti-twist ARRI Accessory Mounts
• Front-facing M4 threads for attaching the optional Kondor Blue Speedbooster Bracket

Kondor Blue Cage Top Handle with Start/Stop Camera Control for Select Cameras (Space Gray)

This space gray Cage Top Handle with Start/Stop Camera Control from Kondor Blue mounts on top of your cage or top plate using its NATO clamp. This universal, cheese-style handle features multiple 1/4"-20, 3/8"-16, and ARRI-style anti-twist threads, two shoe mounts, and a single 15mm rod port. The ARRI-style threads on the top feature pre-inserted 3/8"-16 to 1/4"-20 bushings so you have additional options for mounting your accessories.

The handle also features a start/stop button and a LANC port that can connect to a wide variety of camera models such as those from Z CAM, Blackmagic, Sony, Canon, Panasonic, JVC, and more. An 11" long 2.5mm LANC cable and a 12" long micro-USB cable for Sony Alpha series cameras are both included. The grip of the aluminum handle features a smooth, ergonomic design for added comfort and grip.

Quick Features

• Multiple 1/4"-20, 3/8"-16, and ARRI-style accessory threads
• Handle mounts with NATO clamp
• LANC trigger port with start/stop button
• Two shoe mounts and a single 15mm rod port for additional accessories
• A standard 11" long 2.5mm LANC cable with right-angle connectors is included
• A 12" long micro-USB to LANC trigger cable for Sony Alpha series cameras is included
• Made from durable aluminum with an ergonomic grip
• Comes in space gray color

Compatibility

• Start/stop control via Sony LANC/Panasonic protocol for Z CAM, Blackmagic, Sony, Canon,
• Panasonic, JVC, and more
• Cage or plate with NATO rail
• Magic arms, handles, and 15mm rod system
• Kondor Blue Mini Quick Release Plate

Kondor Blue Cine Battery Plate with 15mm Rod Clamp (V-Mount, Space Gray)

Add professional battery power to your rig with this space gray V-mount Cine Battery Plate from Kondor Blue. The plate attaches to your rig with its built-in 15mm rod clamp and provides multiple DC power output ports for your camera and accessories.

The plate includes a switchable 7.4/8.4V 1.35mm DC barrel output, a 5V 2.5mm barrel output, a 12V 2.5mm barrel output, and one D-Tap output. It also has a 15V 2.5mm barrel input/output that allows you to input AC power to power accessories connected to the other outputs, as well as a separate 2.5mm barrel input to charge the battery. The 15mm rod clamps are secured on separately available LWS rods via two blue locking levers.

Key Features

• For Z CAM E2 M4/S6/F6/F8 Cameras
• Baseplate, Cage & Rosette Arm Bundle
• NATO-Mount Start/Stop Top Handle
• V-Mount Plate, D-Tap to LEMO 2-Pin Cable
