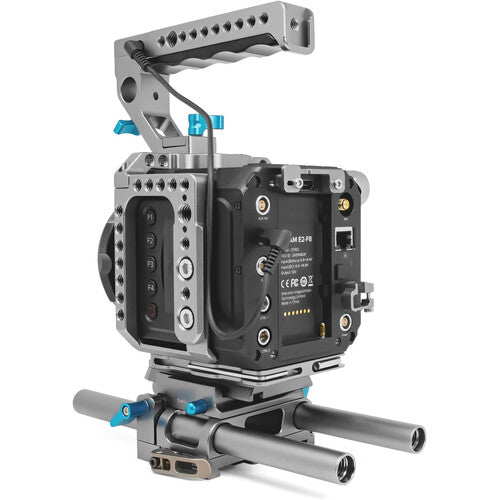

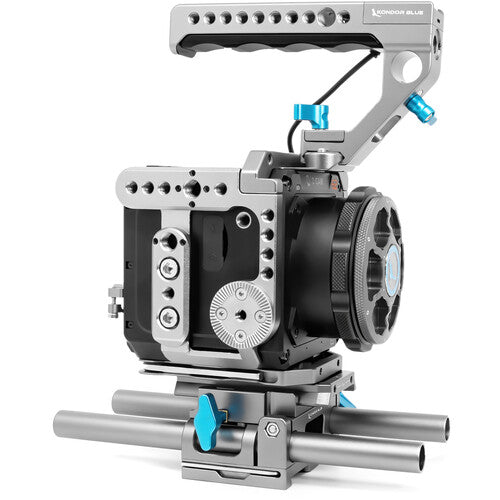

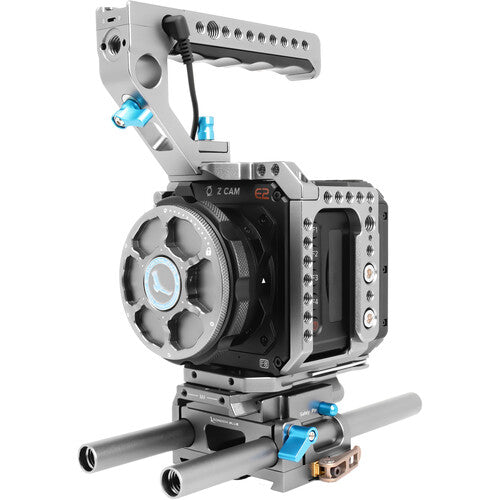

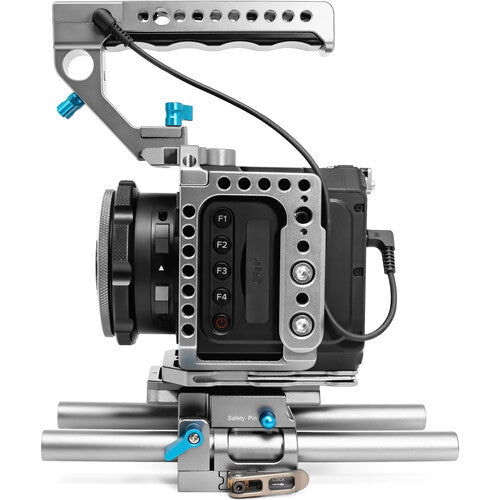

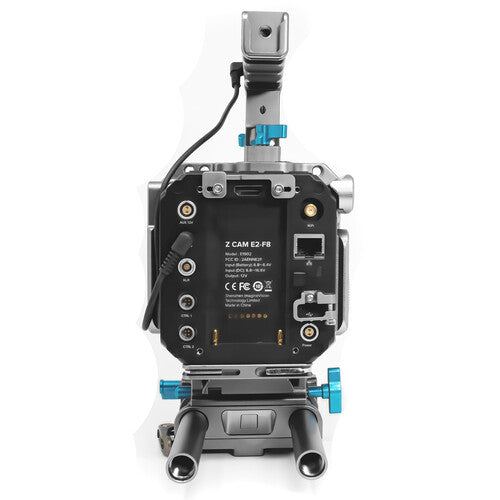

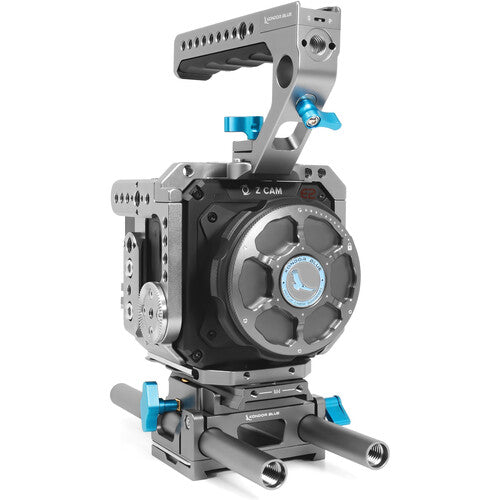

Kondor Blue Z Cam E2 Flagship Base Rig (M4/S6/F6/F8)

Add protection and a variety of accessories to your Z Cam E2 flagship cinema cameras, the M4/S6/F6/F8, with this space gray Z Cam E2 Flagship Base Rig from Kondor Blue. The kit includes a modular camera cage designed for your camera, a top handle, a universal baseplate, a quick release camera plate, and two 8" long 15mm rods with female threaded ends, so you can more easily extend them if desired. The cage offers numerous mounting options such as ARRI-style rosettes, 1/4"-20 threads, 3/8"-16 ARRI-style anti-twist threads, NATO rails, 1/4"-20 and 3/8"-16 tripod mounting threads, and front lens support threads. It mounts onto the baseplate featuring an ARRI-type/501 quick release plate and 15mm rods.

Kondor Blue Cage for Z Cam E2-M4/S6/F6/F8 (Space Gray)

In space gray, the Kondor Blue Cage for Z Cam E2-M4/S6/F6/F8 features a baseplate that separately attaches to the bottom of the camera, and the rest of the cage secures to the top and sides of the camera. The baseplate also offers dedicated slots on the sides for keeping an included Allen key hidden away but handy.

A rosette mount is provided on one side of the cage, and an optional second one can be attached to the other side to allow upgrading the cage with two handgrips or handgrip extensions. Three NATO rails are provided, integrated on the top, left, and right of the cage. A blue bubble level is also built-in near the top rail. HDMI and USB cable clamps are included for securing your cable connections.

The cage has numerous standard 1/4"-20 accessory threads, ARRI 3/8"-16 anti-twist threads, and 1/4"-20 and 3/8"-16 tripod mount threads. Additionally, it has four front-facing M4 threads for mounting the optional Kondor Blue Speedbooster Bracket.

Kondor Blue Cage Top Handle with Start/Stop Camera Control for Select Cameras (Space Gray)

This space gray Cage Top Handle with Start/Stop Camera Control from Kondor Blue mounts on top of your cage or top plate using its NATO clamp. This universal, cheese-style handle features multiple 1/4"-20, 3/8"-16, and ARRI-style anti-twist threads, two shoe mounts, and a single 15mm rod port. The ARRI-style threads on the top feature pre-inserted 3/8"-16 to 1/4"-20 bushings so you have additional options for mounting your accessories.

The handle also features a start/stop button and a LANC port that can connect to a wide variety of camera models such as those from Z CAM, Blackmagic, Sony, Canon, Panasonic, JVC, and more. An 11" long 2.5mm LANC cable and a 12" long micro-USB cable for Sony Alpha series cameras are both included. The grip of the aluminum handle features a smooth, ergonomic design for added comfort and grip.

Quick Features

• Multiple 1/4"-20, 3/8"-16, and ARRI-style accessory threads
• Handle mounts with NATO clamp
• LANC trigger port with start/stop button
• Two shoe mounts and a single 15mm rod port for additional accessories
• A standard 11" long 2.5mm LANC cable with right-angle connectors is included
• A 12" long micro-USB to LANC trigger cable for Sony Alpha series cameras is included
• Made from durable aluminum with an ergonomic grip
• Comes in space gray color

Compatibility

• Start/stop control via Sony LANC/Panasonic protocol for Z CAM, Blackmagic, Sony, Canon,
• Panasonic, JVC, and more
• Cage or plate with NATO rail
• Magic arms, handles, and 15mm rod system
• Kondor Blue Mini Quick Release Plate

Kondor Blue 15mm ARRI-Standard Baseplate for BMPCC 4K/6K Cage (Space Gray)

Although featuring a fairly universal design, the space gray Kondor Blue 15mm ARRI-Standard Baseplate is designed for Kondor's Blackmagic Pocket Cinema Camera 4K/6K cages. It features an ARRI-standard dovetail and supports 15mm LWS rods. This baseplate has a side-load camera plate system, which lets you easily mount your camera from the top instead of having to slide it in from the front.

A Manfrotto 501-standard camera plate is included. It comes with 1/4"-20 and 3/8"-16 mounting screws and offers 1/4"-20 and 3/8"-16 tripod mount threads on the bottom. It's also rubber-padded to minimize twisting and prevent scratching.

Key Features

• ARRI-standard dovetail
• 15mm LWS rod support
• Side-load camera plate system
• Manfrotto 501 standard camera plate
• 1/4"-20 and 3/8"-16 mounting screws
• 1/4"-20 and 3/8"-16 tripod mount threads
• Formfitting Cage with Side Rosettes
• Top Handle with Start/Stop Control
• Universal Quick Release 501 Baseplate
• 2 x 12" Long 15mm Rods
• Modular Cage Design
• Top NATO & Left/Right NATO Safety Rails
• 1/4"-20 & 3/8"-16 ARRI Accessory Threads
• Components Come in Space Gray Color
