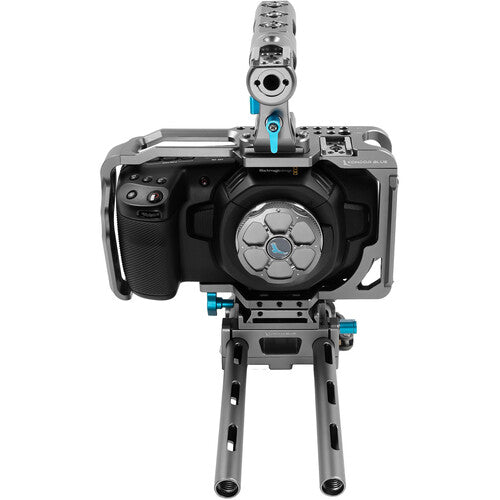

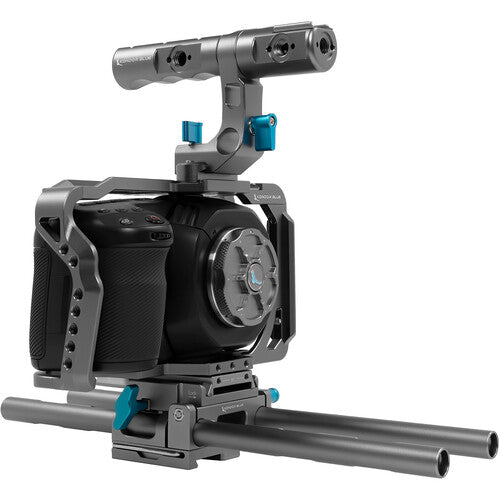

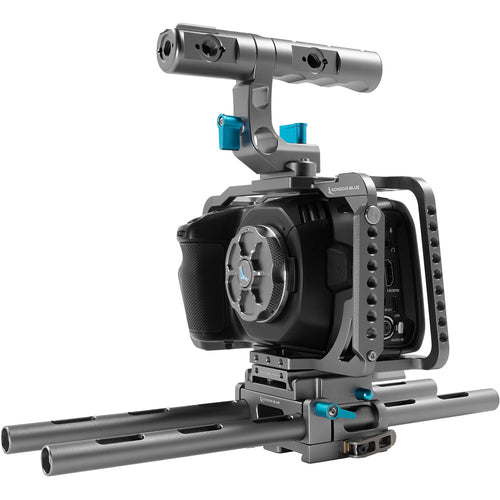

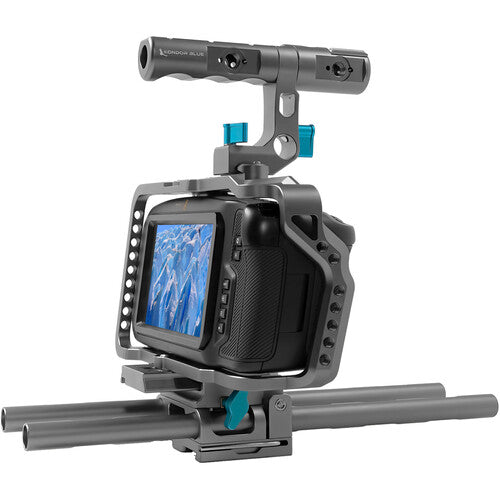

The Space Gray Base Rig for Blackmagic Pocket Cinema Camera 4K/6K from Kondor Blue combines a dedicated full camera cage, a NATO rail-mount top handle, a 15mm LWS universal baseplate, a mini quick release system, a USB Type-C cable, and an 8" pair of 15mm aluminum rods. Use this rig to support, protect, and mount accessories on your BMPCC 4K or BMPCC 6K camera rig.

Kondor Blue Full Cage with Top Handle for BMPCC 4K/6K (Space Gray)

The Kondor Blue Full Cage with Top Handle for BMPCC 4K/6K is a four-sided cage featuring an integrated bubble level and built-in shoe mount. The top handle attaches by quick release to a NATO rail that's screwed in on top of the cage.

The top handle provides a second shoe mount, multiple ARRI Accessory Mounts, and a single 15mm rod port for attaching a rod for an EVF, lens motor, or other accessory. Three of the Accessory Mounts come with 3/8"-16 to 1/4"-20 bushings screwed into them so that you can mount 1/4"-20 accessories on top. These bushings are removable. The levers on the top handle are spring-loaded for more efficient use.

The cage provides access to all the ports, slots, and controls of the camera. It offers 1/4"-20 and 3/8"-16 threaded holes all around for attaching accessories as well as mounting onto a tripod. It has several threads on the bottom for extra flexibility in mounting on gimbals and similar camera supports. Your camera is secured to the cage using a supplied 1/4"-20 screw that screws in from the bottom.

Key Features

• Four-sided cage with integrated bubble level and shoe mount
• NATO rail top handle with anti-twist ARRI Accessory Mounts, 1/4"-20 bushings, shoe mount, and 15mm rod port
• 1/4"-20 and 3/8"-16 threaded holes all around
• 1/4"-20 and 3/8"-16 tripod mount threads
• Access to all ports, slots, and controls of the camera

Kondor Blue 15mm ARRI-Standard Baseplate for BMPCC 4K/6K Cage (Space Gray)

Although featuring a fairly universal design, the space gray Kondor Blue 15mm ARRI-Standard Baseplate is designed for Kondor's Blackmagic Pocket Cinema Camera 4K/6K cages. It features an ARRI-standard dovetail and supports 15mm LWS rods. This baseplate has a side-load camera plate system, which lets you easily mount your camera from the top instead of having to slide it in from the front.

A Manfrotto 501-standard camera plate is included. It comes with 1/4"-20 and 3/8"-16 mounting screws and offers 1/4"-20 and 3/8"-16 tripod mount threads on the bottom. It's also rubber-padded to minimize twisting and prevent scratching.

Key Features

• ARRI-standard dovetail
• 15mm LWS rod support
• Side-load camera plate system
• Manfrotto 501 standard camera plate
• 1/4"-20 and 3/8"-16 mounting screws
• 1/4"-20 and 3/8"-16 tripod mount threads

Kondor Blue T5 SSD Holder with Shoe Adapter

Add a solid-state drive to your camera rig with this T5 SSD Holder with Shoe Adapter from Kondor Blue. The aluminum holder is designed to snugly fit the Samsung T5 SSD, which is secured with a thumbscrew.

The SSD holder attaches to the camera, cage, or plate with its integrated shoe adapter, or you can use the 1/4"-20 thread on the shoe adapter to attach to a cage or to the separately available Kondor Blue Mini Quick Release Plate. The included cable clamp allows you to protect your drive cable from pulling and can be removed by using a mini Allen wrench.

Compatibility

Samsung T5 SSD

Kondor Blue Mini Quick Release Plate

Add quick release functionality to your accessories with this Mini Quick Release Plate from Kondor Blue. The aluminum plate consists of male and female interlocking dovetail plates that connect securely and unlock using a quick release lever. The male plate features ARRI-style anti-twist pins.

Each plate attaches to your rig and your accessory using the included 1/4"-20 and 3/8"-16 screws, allowing you to remove and add an accessory quickly without screws. Two Allen wrenches and a rubber washer are also included. A separately available anti-twist spacer plate can be added to prevent your accessories from twisting while mounted.

Kondor Blue 15mm Rod for Baseplate or Rod Support (8")

Use this single 8" long 15mm Support Rod from Kondor Blue to mount a variety of accessories onto your baseplate, shoulder rig, cage, or various camera support gear. Each end has a 12mm female thread to allow separately available extensions. The aluminum rod has a hollow interior that provides maximum durability.

Kondor Blue USB 3.1 Gen 2 Type-C to USB Type-C Cable (8.5")

Charge your devices and quickly transfer data using the USB 3.1 Gen 2 Type-C to USB Type-C Cable from Kondor Blue. With USB Type-C connectors on both ends and sporting a striking blue color, this 8.5" USB 3.1 Gen 2 cable transfers data at up to 10 Gb/s with compatible devices such as storage drives, Blackmagic 4K/6K pocket cameras, the Z Cam E2, and the Sigma fp camera. This Thunderbolt 3 compatible cable carries up to 100W to power compatible notebooks and tablets in addition to Fast Charging smartphones and other devices that support the feature. You can also use it to connect USB Type-C monitors to your devices.

USB 3.1 Gen 2

Doubling the speed of its predecessor, USB 3.1 Gen 2 features a maximum throughput of 10 Gb/s when used with compatible devices.

Thunderbolt 3

Thunderbolt 3 is a hardware interface that utilizes the reversible USB Type-C connector. Doubling the speed of its predecessor, Thunderbolt 3 features a maximum throughput of 40 Gb/s when used with compatible devices. The connector also transmits data via USB 3.1 at up to 10 Gb/s, and dual-bandwidth DisplayPort 1.2 allows you to connect up to two 4K displays simultaneously. Additionally, you can daisy chain up to six devices from a single Thunderbolt 3 port.

Key Features

• Dedicated Full Camera Cage
• Universal ARRI/501 Baseplate System
• NATO-Mount Top Handle, T5 SSD Holder
• Mini Quick Release, 2 x 8" 15mm Rods
• USB Type-C Cable
