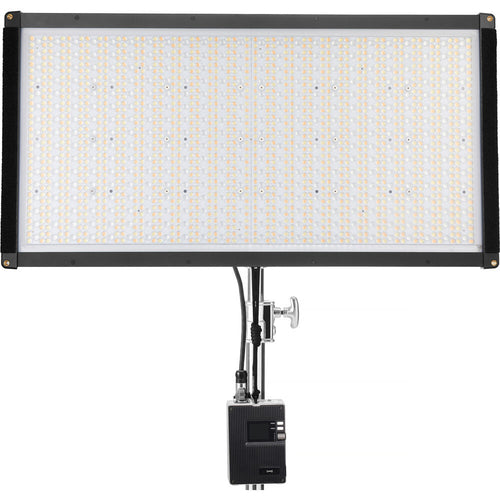

Godox LiteWafer UP150R RGB LED Light Panel

The ultra-slim LiteWafer UP150R RGB LED Light Panel from Godox was made for imaginative creators and sets in need of quality lighting backed by full RGB capability and flexible control, power, and quick mounting with expansion options. The UP150R has a generous CCT range, superior colour rendering, and advanced features without giving up brightness and performance. This version centers around a native 13.9 x 26.7" LED panel that can be easily expanded using optional connectors, but also packs a controller, a softbox, and a storage bag among other essential accessories. The UP150R LED panel fits in various locations, from tight studios to mobile productions, ideal for both solo creators and professional teams.

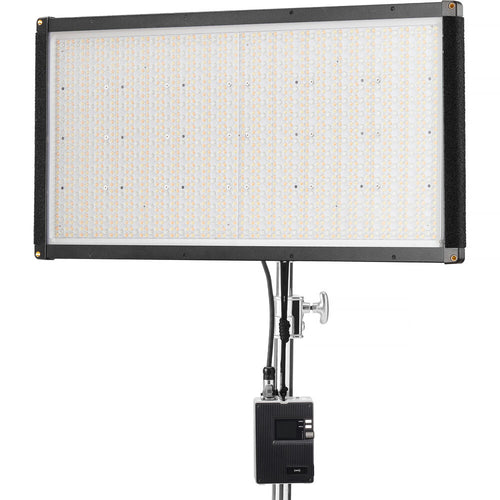

Optical Design, Slim-Profile Body

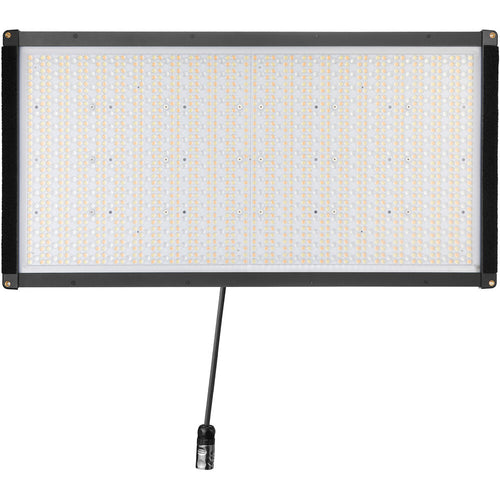

The LiteWafer UP150R is a 0.95" ultra-slim 180W LED panel with full colour capability and an extended colour temperature range from 1800 to 10,000K and 0-100% dimming. The LEDs used in the UP150R provide an impressive 20,400 lux at 3.3' (5600K) thanks to the fixture's optical lens boost design, while still maintaining soft, even illumination.

Fully Adjustable

The panel design is not its only relevant attribute. Let your creativity work in any colour and adapt your lighting to any scenario. Talking about adjustability, it's worth mentioning GM shift by -/+100% and four dimming curves for precision: linear, S-curve, exponential, and logarithmic. Find efficient performance and various lighting and control modes, whether you're illuminating live streaming, podcast, or short film setups.

Maximum Colour Control

Access the RGB mode for red, green, and blue colour variations, the HSI mode for hue, saturation, and intensity settings, the GEL mode to select from various preset filters, and finally, the creative FX mode for choosing from 14 different lighting effects for easy scene simulations. Additionally, very high CRI and TLCI ratings of 97 and 98 ensure true colour rendering for reliable detail and texture results.

Intuitive Settings, NFC App & DMX

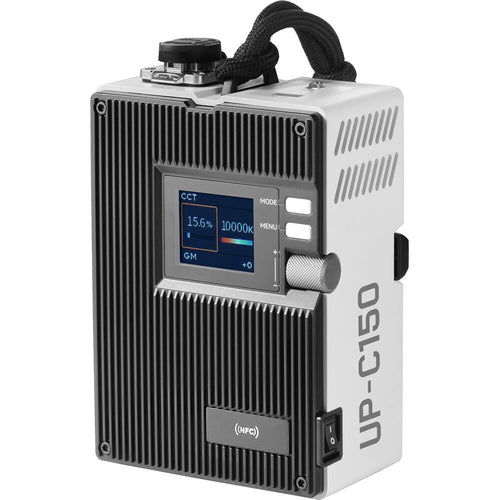

Godox also considered how to make the UP150R both intuitive and advanced. Adjust the lighting parameters using the included controller or go with quick app control with NFC capability.

The light can be remotely controlled via a Bluetooth connection from up to 98' away using the Godox Light app. Simply tap near the NFC area and pair it with the app.

The UP150R also allows wired DMX/RDM control for more advanced users and studio-grade workflows, which requires a separately available DMX-C1 adapter cable.

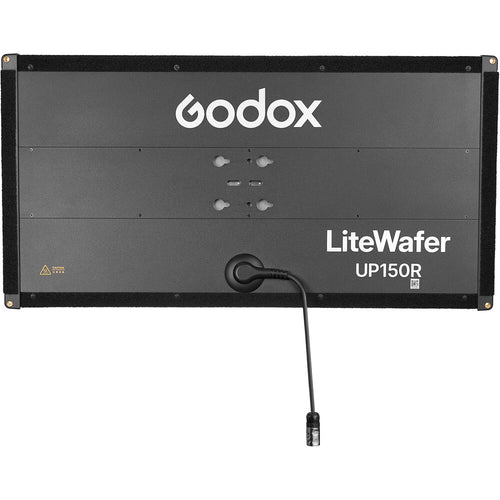

Power & Cooling

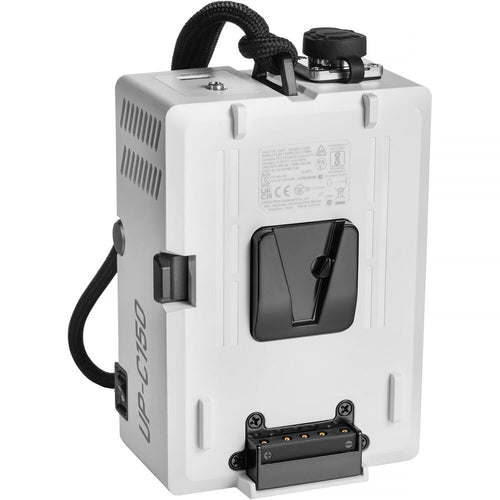

The unit's convenient metal body enables efficient cooling. A heat skin cools down the fixture to prolong durability and ensure consistent output even during extended shoots. The UP150R comes with an AC power cable, but it can also be used with separately available V-mount batteries. Place a single optional V-mount battery in the battery plate of the included controller. Besides that, a USB-A port is available for firmware updates. Use the controller box and shoulder strap for effortless shooting on the go.

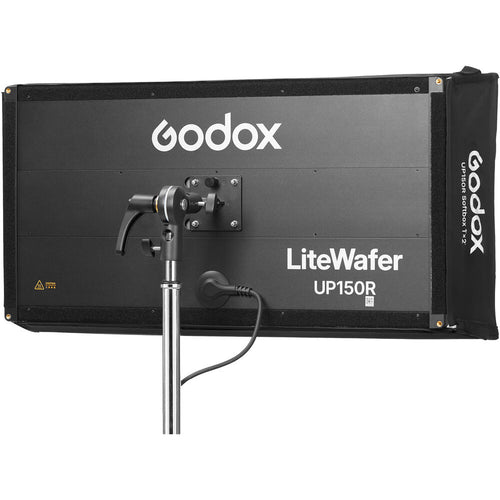

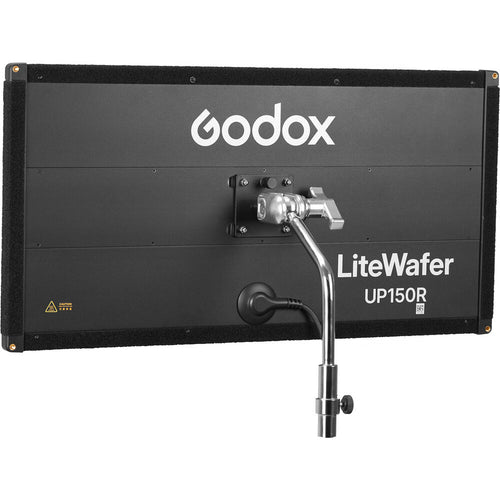

Quick-Release System

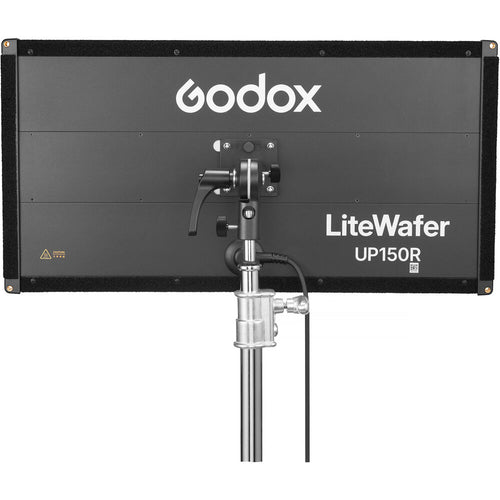

One of the great highlights of this light is the flexibility of its quick-release mounting system with a dedicated holder. Users will benefit from rapid setup and teardown, with a fixture that is quick to pack and portable-a great asset for fast-paced environments. This version includes a 5/8" baby pin, but Godox offers a separately available universal swivel holder for flexible positioning.

Lighting Expansion

The classic 1x2 panel design of the UP150R may be sufficient for many creators, but here Godox delivers flexibility for more demanding users and studios. Thanks to its seamless dual-light expansion system, the UP150R allows easy expansion by mounting two lights together for maximised output and larger lighting setups. This requires separately available straight connectors for achieving 2x2 and 1x4 structures when using two fixtures in horizontal or vertical positions.

Key Features:

For Video Production & Content Creation

Output: 20,400 Lux at 3.3' (5600K)

1800-10,000K; RGBW Colour Control

13.9 x 26.7" Panel; AC/DC Operation

CRI 97 | TLCI 98

Onboard, DMX & App Control; NFC Function

Optical Lens Boost & Slim Metal Design

Quick-Release Mounting System & 14 FX

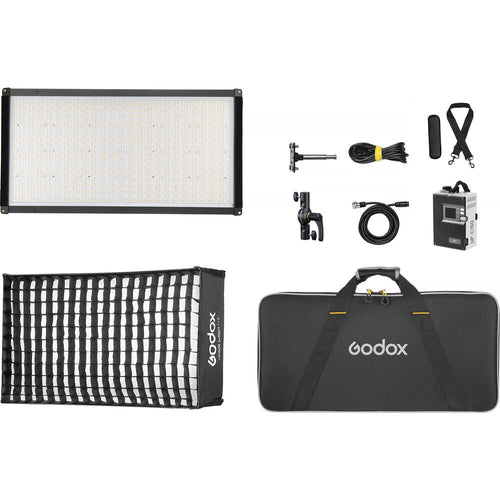

What's in the Box:

Godox LiteWafer UP150R RGB LED Light Panel

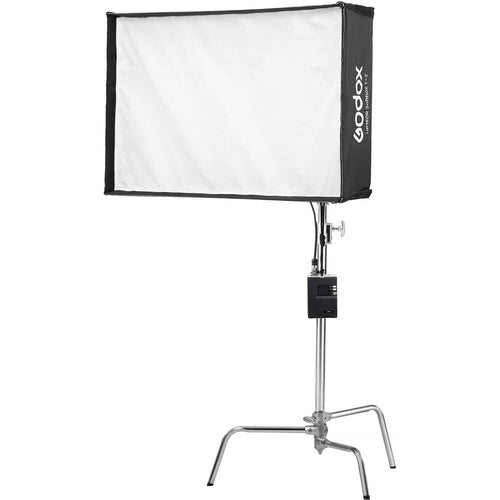

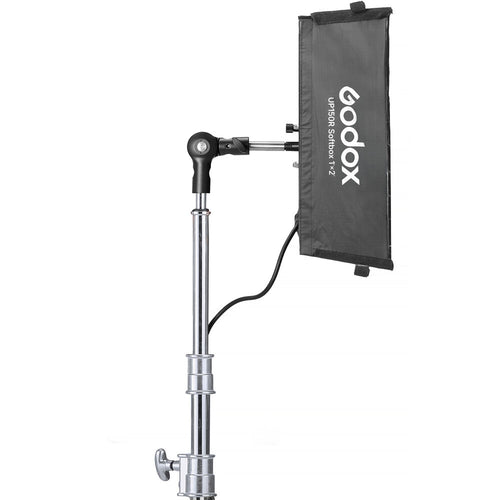

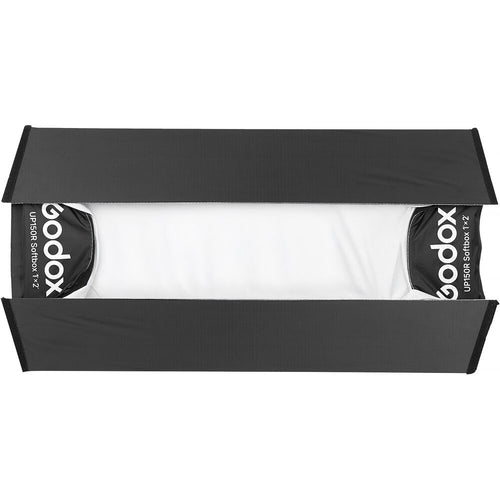

Godox Softbox for LiteWafer UP150R Light (1 x 2')

Light Body

Adapter Holder

5/8" Baby Pin

AC Power Cord

Controller

Controller Cable

Shoulder Strap

Storage Bag
