SKU: GC49-52.HLX-360MXB

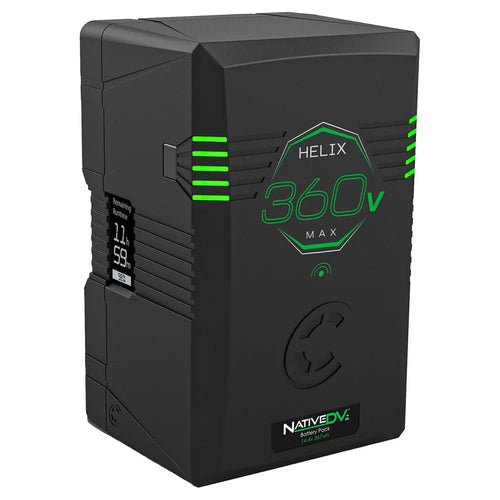

Core SWX Helix Max 360w Dual Volt Battery

$1,919.00

$1,919.00Save $1

Pay with

Mount Type

Product variants

Availability

Availability: Awaiting stock

This item is currently on backorder. To secure your allocation from the next shipment, please place a pre-order. Contact us for estimated arrival.

Request a Price Match

Recommended accessories

View all

Tilta Pocket V-Mount Battery Plate V2 - Black

$31.95~~$33.00~~

Pelican 1535 Air Case - Black

$421.07~~$554.95~~

Leofoto LVM-324C Manba Video Series 4 Section Tripod with BV-15 Video Head

$719.20~~$899.00~~

DJI Mic 3 (2 TX + 1 RX + Charging Case)

$484.99

View all

Overview Key Features FAQs Image gallery Reviews Accessories

$1,919.00

Product Overview

Available as 3 Mount Types

Core SWX Helix Max 360w B Mount Dual Volt Battery
Core SWX Helix Max 360w V Mount Dual Volt Battery
Core SWX Helix Max 360w Gold Mount Dual Volt Battery

Core SWX Helix Max 360w B Mount Dual Volt Battery
Core SWX Helix Max 360w V Mount Dual Volt Battery
Core SWX Helix Max 360w Gold Mount Dual Volt Battery

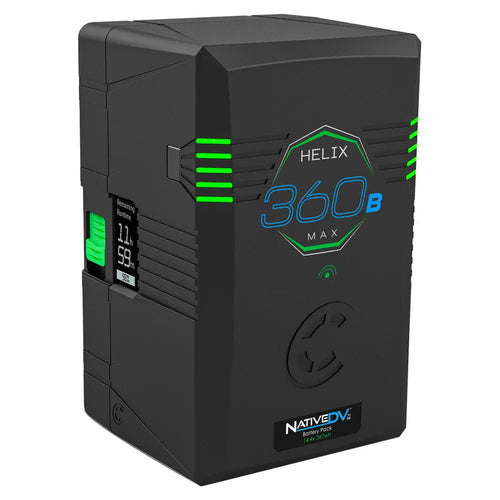

Core SWX Helix Max 360w B Mount Dual Volt Battery

This B-mount, 367Wh Helix Max 360 Lithium-Ion Dual-Voltage Battery from Core SWX features simultaneous 14 and 28V dual-volage capabilities for a complete onboard system with high-voltage performance. A maximum load of 20A at 16.8V or 10A at 33.6V makes this battery ideal for powering more demanding equipment builds in cine and broadcast applications. Helix Max series batteries draw minimal current at their maximum voltage, creating less heat and extending the runtime and longevity of each battery. D-Tap and USB-A outputs power other accessories from monitors to mobile devices. An integrated LCD screen monitors runtime and total battery percentage, while built-in camera communication delivers this data directly to your viewfinder. Wrap-around 3-stage LED indicators provide a secondary way to monitor battery life and charge status. An improved polycarbonate housing is shock-absorbing for maximum durability.

Features

Dual-Voltage 14V and 28V
367Wh Lithium-Ion B-Mount Battery

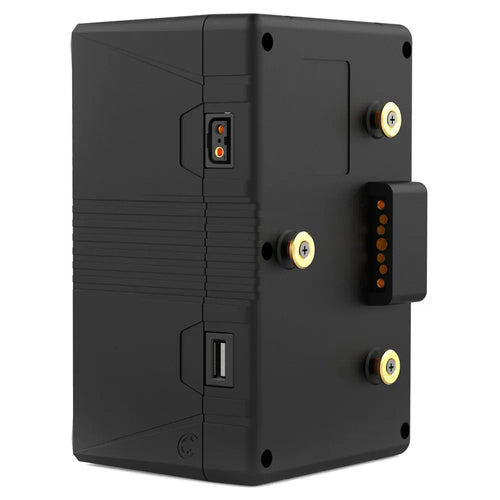

D-Tap and USB-A Output Ports

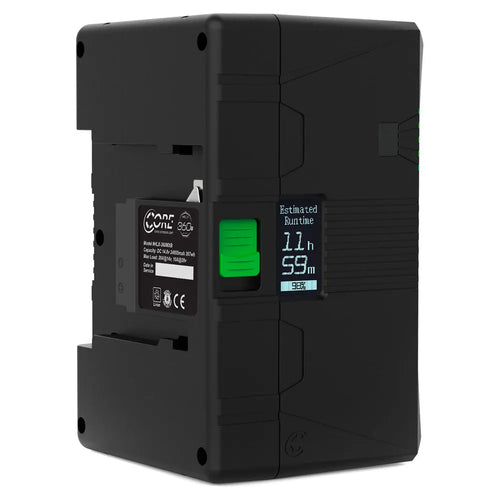

Runtime LCD Display, LED Gauge
20A Draw at 16.8V, 10A Draw at 33.6V
Integrated Camera Communication

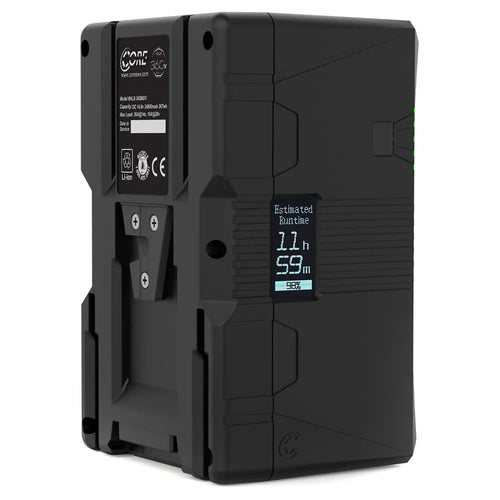

Core SWX Helix Max 360w V Mount Dual Volt Battery

This V-mount, 367Wh Helix Max 360 Lithium-Ion Dual-Voltage Battery from Core SWX features simultaneous 14 and 28V dual-volage capabilities for a complete onboard system with high-voltage performance. A maximum load of 20A at 16.8V or 10A at 33.6V makes this battery ideal for powering more demanding equipment builds in cine and broadcast applications. Helix Max series batteries draw minimal current at their maximum voltage, creating less heat and extending the runtime and longevity of each battery. D-Tap and USB-A outputs power other accessories from monitors to mobile devices. An integrated LCD screen monitors runtime and total battery percentage, while built-in camera communication delivers this data directly to your viewfinder. Wrap-around 3-stage LED indicators provide a secondary way to monitor battery life and charge status. An improved polycarbonate housing is shock-absorbing for maximum durability.

Features

Dual-Voltage 14V and 28V
367Wh Lithium-Ion V-Mount Battery
D-Tap and USB-A Output Ports
Runtime LCD Display, LED Gauge
20A Draw at 16.8V, 10A Draw at 33.6V
Integrated Camera Communication

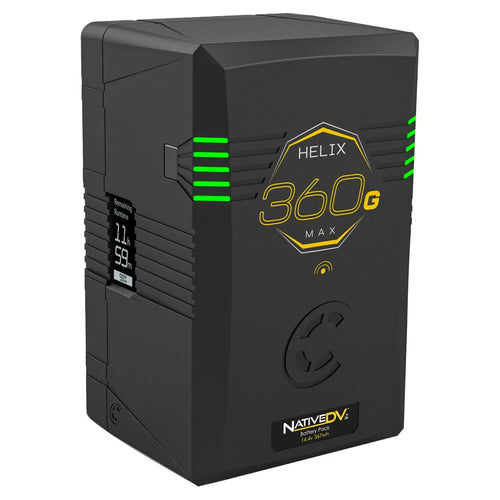

Core SWX Helix Max 360w Gold Mount Dual Volt Battery

This Gold mount, 367Wh Helix Max 360 Lithium-Ion Dual-Voltage Battery from Core SWX features simultaneous 14 and 28V dual-volage capabilities for a complete onboard system with high-voltage performance. A maximum load of 20A at 16.8V or 10A at 33.6V makes this battery ideal for powering more demanding equipment builds in cine and broadcast applications. Helix Max series batteries draw minimal current at their maximum voltage, creating less heat and extending the runtime and longevity of each battery. D-Tap and USB-A outputs power other accessories from monitors to mobile devices. An integrated LCD screen monitors runtime and total battery percentage, while built-in camera communication delivers this data directly to your viewfinder. Wrap-around 3-stage LED indicators provide a secondary way to monitor battery life and charge status. An improved polycarbonate housing is shock-absorbing for maximum durability.

Features

Dual-Voltage 14V and 28V
367Wh Lithium-Ion Gold Mount Battery
D-Tap and USB-A Output Ports
Runtime LCD Display, LED Gauge
20A Draw at 16.8V, 10A Draw at 33.6V
Integrated Camera Communication
