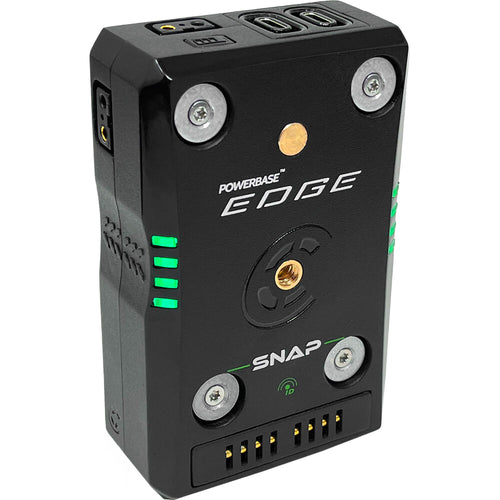

Core Swx Powerbase Edge Snap 49wh Stacking Battery

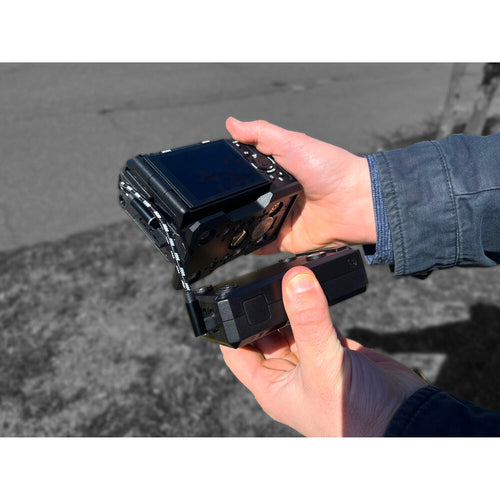

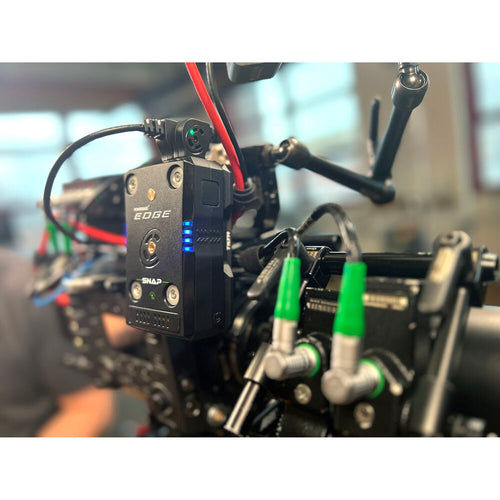

Power your camera and its accessories for a long shooting day with this V-mount Powerbase EDGE SNAP 49Wh Smart-Stacking Battery Pack from Core SWX. This battery has a maximum continuous draw of 6.54A, a 49Wh capacity, and output voltage of 14.54V, and it can be linked with other packs using strong magnets to charge multiple Snap batteries simultaneously using a single PD Pro charge input. It can be mounted onto a camera, cage, or rig using 1/4"-20 thread or an optional quick release plate.

Two unregulated D-Tap ports on the device can power your on-camera monitor or wireless transmitter, while two 90W PD Pro USB-C PD inputs/outputs can charge everything from mobile devices to laptops as well as charge the battery. Monitoring your battery's status is easy with the wraparound RGB LEDs that can be viewed from any angle. The Powerbase Edge Snap can be recharged with a separately available USB PD or V-mount charger.

Linking

The hot-swappable and stackable design of the Edge Snap enables quick and effortless addition or removal of packs, ensuring continuous power supply to accessories while allowing for convenient charging. Additionally, the PD Pro ports facilitate charging via USB-C PD while the magnetic feature enables parallel charging of multiple packs through a single USB-C PD charge connection, further enhancing efficiency and convenience.

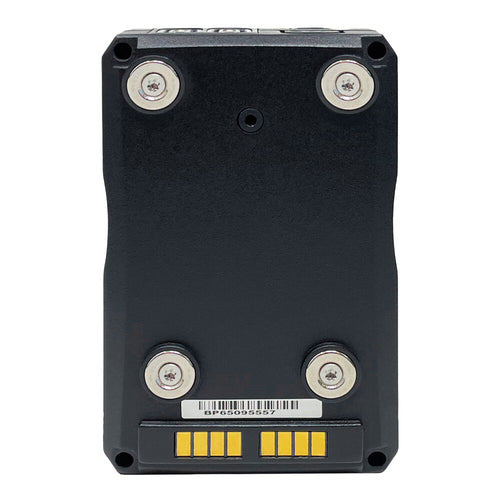

Linkage Strength

Despite their lightweight design at just 0.39kg, the Powerbase Edge Snap packs boast an impressive 4.08kg of magnetic strength, making them ideal for the demands of the cinema video industry. This exceptional magnetic strength ensures that even when multiple packs are used in parallel, they stay securely in place, providing reliable power throughout your shoot.

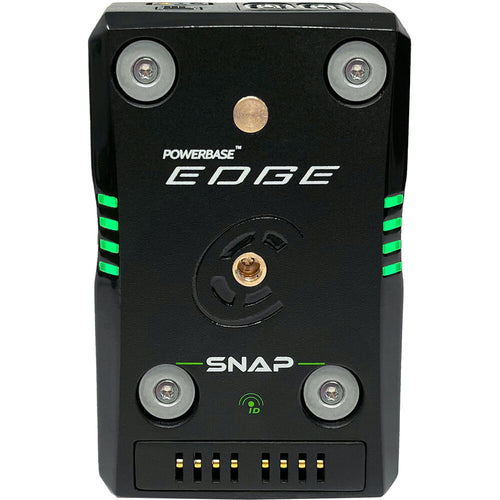

Wraparound RGB LEDs

The LED gauge offers a clear visual indication of remaining battery life, remaining illuminated throughout both charge and discharge cycles. For added convenience, a status button located on the top of the pack can illuminate the LEDs to display charge status even when the pack is not in use. The LEDs are RGB-enabled, providing users the flexibility to select from four distinct colours, and they can be viewed from any angle.

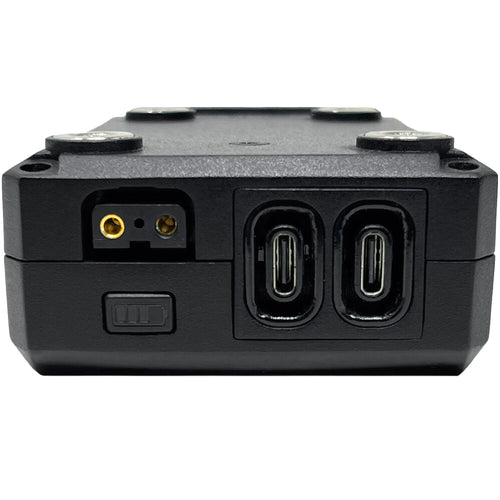

PD Pro and D-tap Ports

The two PD Pro ports offer wide-range auxiliary voltage output, from 5 to 28V, along with up to 145W output, catering to the diverse power requirements of accessories in the professional video market. Coupled with two standard 12V D-Tap outputs, the Edge Snap offers flexibility, empowering users to power up to four accessories concurrently. Be it cameras, lights, monitors, or other indispensable equipment, the Edge Snap ensures dependable and consistent power delivery, ensuring seamless operation to keep your production running seamlessly.

Voltbridge iD

Each Powerbase Edge Snap pack comes equipped with an RFID chip to store accumulated battery data. Simply wave your phone near the pack to access vital stats. The Core SWX Voltbridge iD app streamlines battery fleet management effortlessly.

Optional Quick Release Plate

While Snap packs feature one 1/4"-20 connection, the separately available Edge Snap quick release plate allows the packs to be mounted through a multitude of 1/4"-20 and 3/8"-16 anti-twist connections and 1/4"-20 threads for a wide array of mounting options.

Key Features:

49Wh, 14.54V V-mount Battery Pack

Magnetic Connection to Other Snap Units

One 1/4"-20 Thread

Charge Multiple Units with Single Cable

What's in the Box:

Core Swx Powerbase Edge Snap 49wh Stacking Battery
