Bright Tangerine Sliding Top Plate for Sony Rialto 1 & 2

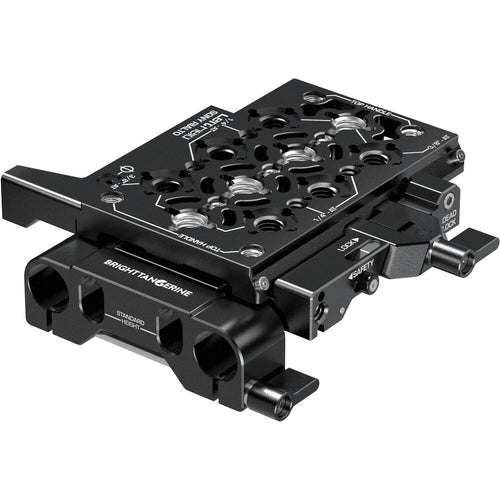

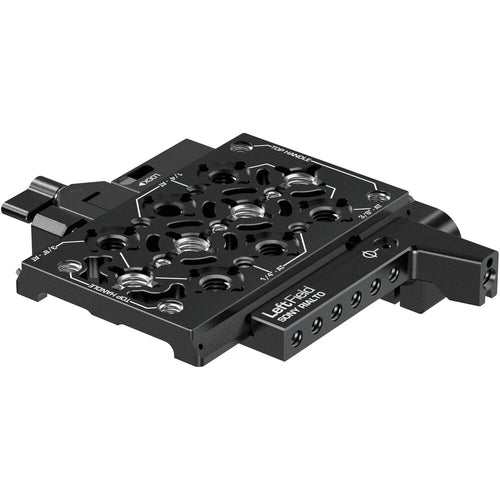

The Sliding Top Plate set from Bright Tangerine provides accessory mounting via a top-mounted 15mm rod support and a sliding, quick release top cheese plate for mounting atop your Sony Rialto or Rialto 2 camera extension unit for the VENICE. This top plate kit is comprised of a sliding top plate core receiver, an ARRI-standard dovetail top plate, and a 15mm LWS rod bracket.

Fast Setup Changes

Switch effortlessly between gimbal and handheld modes or switch out handles and support accessories in a matter of seconds with our quick-release dovetail plates. This low-profile dovetail is equipped with multiple helicoiled 3/8"-16 and 1/4"-20 threads, specifically designed to fit FREEFLY Movi and DJI Ronin 2 gimbal systems.

It also offers compatibility with various top handles, giving you the flexibility to customize according to your requirements. With a hole depth of 10mm, each thread provides excellent support and engagement for all your accessories.

Enhanced Safety Measures

Experience maximum reliability and safety on set with the addition of multiple safety mechanisms. One safety feature prevents the clamp from opening fully, giving you peace of mind even in fast-paced situations. To completely lock off the dovetail, the deadlock screw can be engaged, anchoring the dovetail plate into the central position.

Interchangeable Locking Mechanism

Choose between the preinstalled lever lock or swap it out for a sleek space-saver lock option. With a 4mm hex key, you can securely lock and unlock the clamp, eliminating the risk of accidental release.

Integrated 15mm Rod Support

The front of the top plate features integrated 15mm rod support, perfect for adding EVFs, lens motors, and other accessories. With our adjustable bracket, you have the flexibility to set it at the standard 15mm LWS height or lower it, enabling the dovetail to slide over for improved balance. The bracket can be inverted or completely removed to suit your specific needs.

Underslung Mode

For moments where you want to undersling the camera, the clamp is compatible with ARRI standard dovetails.

Film Hook Plane and Side Plate Mounting Points

On each side of the top plate is a mounting point with locating holes for optional side plates. The right side also features a relocating point for the film hook plane.

Easy Installation

To install, you'll need a 4mm hex wrench. Use the two captive 3/8" screws to secure the plate, then attach the rod support bracket with the two M4 screws.

Key Features:

For Sony Rialto/Rialto 2

Sliding Top Plate Core & Dovetail Plate

15mm LWS Rod Bracket

1/4"-20, 3/8"-16 & ARRI Accessory Mounts

Slides to Adjust Counterbalance

Lightweight, Low-Profile Design

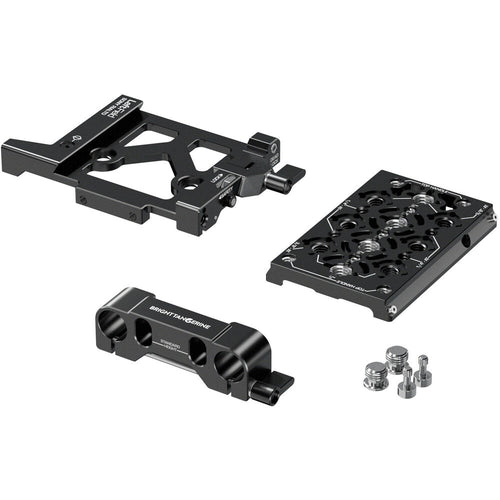

What's in the Box:

Bright Tangerine Sliding Top Plate for Sony Rialto 1 & 2

Sliding Dovetail Core

Bright Tangerine Top Plate Dovetail

15mm LWS Rod Support Bracket
