SKU: GC63-B4004.0049

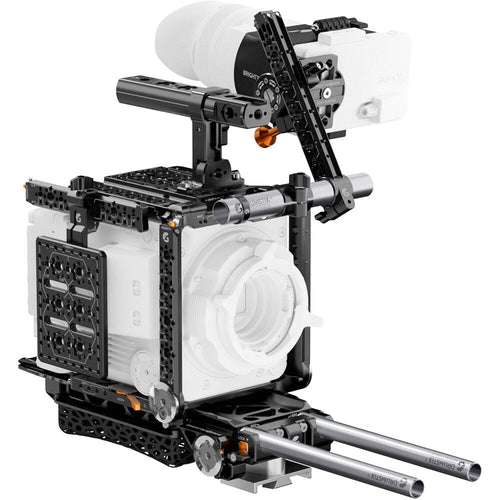

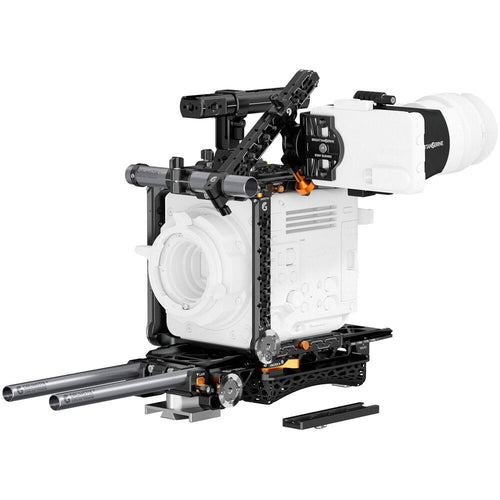

Bright Tangerine LeftField Sony BURANO System - Expert Documentary Kit (BUD Two-Axis VCT-14)

Bright Tangerine LeftField Sony BURANO System - Expert Documentary Kit (BUD Two-Axis VCT-14)

The LeftField Expert Documentary Kit from Bright Tangerine is a versatile BUD-compatible VCT-14 rig system designed specifically for use with the Sony BURANO. Its modular design comprises of all the parts you need to get your camera into the thick of the action, and this comprehensive bundle offers a wide range of mounting options.

Bright Tangerine KASBAH Atman Shoulder Rig Frame

Create a shoulder rig suited to your cine camera configuration with the Bright Tangerine KASBAH Atman Shoulder Rig Frame and its BUD-compatible dovetail. The frame provides a total of 6.5" sliding distance to balance your ARRI camera and properly position your KASBAH shoulder rig pad of choice. VCT-14 and BCT standards are also compatible with the frame to accommodate future gear upgrades. Secure 15mm LWS rods to the front of the frame thanks to the dual-rod clamp and incorporate lens accessories. Two ARRI-standard rosettes with M6 threads allow you to add side handles to the frame. You can even integrate a separately available rear rod clamp using the back M4 mounting threads.

Bright Tangerine KASBAH Shoulder Rig VCT Mounting Set

Mount the KASBAH Atman Shoulder Rig onto VCT-14 tripod plate configurations using this Bright Tangerine KASBAH Shoulder Rig VCT Mounting Set. The set consists of both a front and a rear mounting component with five mounting screws. If you require more space to move your KASBAH shoulder pad along the frame, simply remove the rear component. The set is constructed of stainless steel for a durable design.

Bright Tangerine BUD Compatible Bottom Dovetail Plate for Sony BURANO

Integrate a quick release system of your choice into your Sony BURANO rig configuration with the Bright Tangerine BUD Compatible Bottom Dovetail Plate. The plate features a wide BUD dovetail standard plate compatible with the ARRI BUD-1 and BUD-3 plates. Combine the plate with the LeftField 3 15mm LWS Baseplate with the dovetail for ARRI-compatible rigs or with the KASBAH Atman Shoulder Rig Kit for VCT-14 compatible rigs.

Gimbals, stabilisers, and other camera supports can be integrated with the plate using the BUD Universal Stabiliser Adapter Mount in either 6 or 12" lengths. The plate secures to the bottom of your camera via two 3/8"-16 captive mounting screws. Use the integrated release lever to quickly transition from handheld to stabilised shooting.

Bright Tangerine Sliding Top Plate for Sony BURANO

This Bright Tangerine Sliding Top Plate is designed to secure to your Sony BURANO cine camera and provide additional mounting points to the top of your rig. The mount consists of the main sliding plate with an ARRI dovetail mounting spot and an ARRI dovetail plate. Both components feature multiple 1/4"-20 and 3/8"-16 mounting threads, ARRI MAP M4 points, and Quick Detach sockets for wide accessory compatibility. Secure accessories like the BUD-compatible dovetail plate, 15mm top rod console, or floating NATO rail to the sliding plate to customize the loadout of your rig.

Bright Tangerine Drumstix 15mm Sterling Titanium Support Rod (9")

The Bright Tangerine Drumstix 15mm Sterling Titanium Support Rod is suitable for mounting an EVF bracket or other single rod accessories to your rig without adding significant weight, something every owner, operator, assistant, and rental house will appreciate. This single 9" long support rod is extremely lightweight yet exhibits less flex than carbon fiber rods of the same length, and it is lighter than either steel or aluminium rods while being at least as rigid and strong. Made from titanium, the rod is corrosion resistant, and it is machined and ground flat to prevent binding as you mount accessories.

Each titanium rod is machined and ground flat to within a tolerance of 2 microns, which prevents accessories from binding when sliding on the rod. The strength, hardness, and machining tolerances of the rod eliminate the need for the time-honored tradition of spinning the support rod in the rod clamp when trying to build the camera package.

Each rod is extremely lightweight, making it well suited for use with drones or in handheld configurations.

The stiffness of each rod means you can confidently use it to support heavy lenses and matte boxes loaded with filters without worrying about the rod flexing.

Bright Tangerine Cold Shoe Extension Bar (4")

Expand the mounting capabilities of your camera cage's cold shoe with the Bright Tangerine Cold Shoe Extension Bar. The extension measures 4" long and features an adjustable 3/8"-16 mounting screw that can be placed in any of the four 3/8"-16 threads along the bar. The cold shoe mounting slot can accommodate multiple wireless transmitters or other compatible accessories.

Bright Tangerine Touch Loupe Adapter for Sony BURANO

Transform the Sony BURANO 90° loupe with this Bright Tangerine Touch Loupe Adapter for a more intuitive viewing experience. The adapter secures to the loupe via a slide-locking mechanism and features both rubber and silicone to ensure a tight seal. You can still access the touchscreen and shortcuts of the BURANO without needing to remove the adapter. Even with the adapter secured, the loupe remains compatible with 52mm diopters for visual enhancement.

Bright Tangerine Floating NATO Side Rail for Sony BURANO

The Floating NATO Side Rail is designed to be integrated into your Sony BURANO rig configuration using other compatible Bright Tangerine accessories such as the NATO cheese plates or sliding top plate. The rail features two 1/4"-20 captive mounting screws and an offset NATO rail design for ample accessory clearance when attaching to the camera body. Multiple 1/4"-20 and 3/8"-16 threads, as well as the NATO rail, allow you to incorporate the Bright Tangerine NATO cheese plates or other compatible accessories. A safety release button makes sliding your accessories on and off a breeze.

Bright Tangerine Wide NATO Cheese Plate

Incorporate this Wide NATO Cheese Plate from Bright Tangerine into your camera rig configuration to expand its mounting options. The plate's mounting area measures 3.1 x 3.9" and can be adjusted to any orientation depending on the needs of your gear. A NATO clamp secures the plate to your rig, while a close/wide connector can provide an additional 0.4" of clearance between the cheese plate and the rig. Multiple 1/4"-20, 3/8"-16, and ARRI MAP M4 threads provide compatibility with a wide range of accessories.

Bright Tangerine Top Handle for Select RED Cameras

This aluminium Top Handle from Bright Tangerine mounts onto the Dovetail Plate for select RED cameras using the included 1/4"-20 screws. It provides multiple 1/4"-20 and 3/8"-16 accessory threads and a shoe mount for adding a variety of accessories.

The handle also features two QD (quick-detach) holes to attach anchors, cables, or camera straps. The handle can slide back and forth for balancing when you unlock the lever, and there are safety stops, so it doesn't completely slide out.

Compatibility

RED V-RAPTOR, V-RAPTOR XL

RED KOMODO, KOMODO-X

Also compatible with but not limited to:

Bright Tangerine Top Plate for RED V-RAPTOR B4002.1053

Bright Tangerine Sliding Dovetail Plate B4002.1070 Bright Tangerine Top Bar Bracket B4002.1066

Bright Tangerine Axl Monitor Holder Set for Sony BURANO Monitor

The Bright Tangerine Axl Monitor Holder Set is designed to keep your Sony BURANO monitor secure while using the touchscreen or loupe. The set consists of two components, a NATO clamp and an L-bracket, to provide a secure mounting configuration. The L-bracket, with its captive 1/4"-20 screws, can be attached in two different orientations relative to the NATO clamp to accommodate the 90° loupe. An adjustable drag knob allows you to tilt the screen with ease. Even when you rotate the monitor, the clamp's drag knob stays in place for easy accessibility.

Bright Tangerine Double NATO Rail with 19mm Rod Clamp (7")

The Double NATO Rail with 19mm Rod Clamp from Bright Tangerine allows you to attach heavier monitors and accessories to your Sony BURANO cine configuration. The double-sided rail measures 7" and features safety stops and quick release buttons to ensure your mounted accessories do not slide off. A 19mm rod clamp secures the rail to your BURANO and locks via a winged lever. Multiple 1/4"-20 and 3/8"-16 threads expand mounting compatibilities to articulating arms and other accessories.

Bright Tangerine Single 19mm Rod Clamp for Sony BURANO

Integrate 19mm rod-mounted lens accessories or viewfinders to your Sony BURANO with the Bright Tangerine Single 19mm Rod Clamp. The clamp secures to your BURANO via two captive ARRI MAP M4 screws. Secure your 19mm rod to the clamp using the integrated winged lever. The clamp's offset design provides extra space to avoid obstructing other mounted accessories.

Bright Tangerine 19mm Rod Safety Clamp

Add security to your rod-mounted accessories with this Bright Tangerine 19mm Rod Safety Clamp. The clamp is compatible with 19mm rods and creates a physical barrier that prevents accessories from sliding off. The clamp secures by tightening the integrated screw with a 2.5mm Allen key.

Key Features:

Designed for Sony BURANO

BUD-Compatible VCT-14 Rig System

Sliding Top Plate Included

BUD-Compatible Dovetail Plate

Drumstix 15mm Sterling Titanium Rods

Touch Loupe Adapter & Axl Monitor Holder

Floating NATO Rail & Double NATO Rail

Atman Shoulder Rig Wide Two-Axis Pad

Various Options for Mounting Accessories

What's in the Box:

Bright Tangerine KASBAH Atman Shoulder Rig Frame

Bright Tangerine KASBAH Shoulder Rig VCT Mounting Set

Front Component

Rear Component

Bright Tangerine BUD Compatible Bottom Dovetail Plate for Sony BURANO

3/8"-16 Captive Mounting Screw

Bright Tangerine Sliding Top Plate for Sony BURANO

Dovetail Plate

Bright Tangerine Drumstix 15mm Sterling Titanium Support Rod (9")

Bright Tangerine Cold Shoe Extension Bar (4")

Bright Tangerine Touch Loupe Adapter for Sony BURANO

Bright Tangerine Floating NATO Side Rail for Sony BURANO

1/4"-20 Mounting Screw

Bright Tangerine Wide NATO Cheese Plate

NATO Clamp

Close/Wide Connector

Bright Tangerine Top Handle for Select RED Cameras

Mounting Screw

Bright Tangerine Axl Monitor Holder Set for Sony BURANO Monitor

L-Bracket

Bright Tangerine Double NATO Rail with 19mm Rod Clamp (7")

Bright Tangerine Single 19mm Rod Clamp for Sony BURANO

Bright Tangerine 19mm Rod Safety Clamp

KASBAH Atman Shoulder Rig Wide 2-Axis Pad

Drumstix 19mm Titanium Support Rod (6")

Regular price $5,470.00
Sale price $5,470.00 Regular price $5,480.00
Pay with
Pay with

Request a Price Match

Fill out the price match form below, and we will be in touch shortly.

$5,470.00

Product Overview

Bright Tangerine LeftField Sony BURANO System - Expert Documentary Kit (BUD Two-Axis VCT-14)

The LeftField Expert Documentary Kit from Bright Tangerine is a versatile BUD-compatible VCT-14 rig system designed specifically for use with the Sony BURANO. Its modular design comprises of all the parts you need to get your camera into the thick of the action, and this comprehensive bundle offers a wide range of mounting options.
