Bright Tangerine LeftField Sony BURANO System - Advanced Cine Kit (BUD 15mm LWS Baseplate)

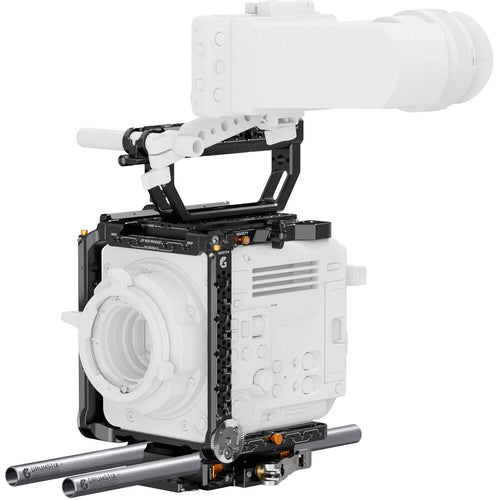

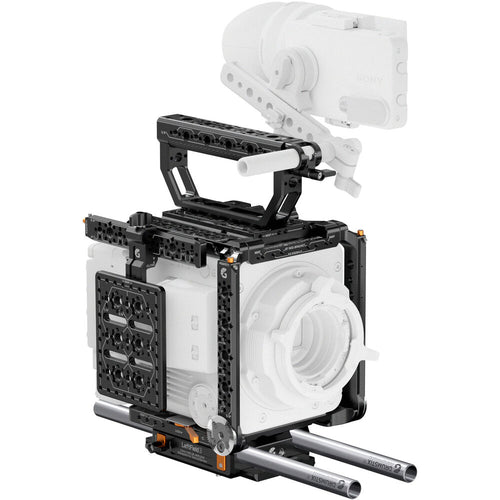

Create a rod-mounted rig with your Sony BURANO cine camera with this LeftField Advanced Cine Kit from Bright Tangerine. This advanced cine kit comprises a BUD-compatible LeftField 3 15mm LWS baseplate core, a BUD-compatible bottom dovetail plate, a sliding top plate, an ARRI BP8 adapter dovetail, two side plates, a floating NATO side rail, a wide NATO cheese plate, a top handle, and two 12" 15mm titanium support rods. Easily transition between handheld and stabilised configurations while attaching various accessories to your BURANO.

Bright Tangerine LeftField 3 ARRI BUD Compatible 15mm LWS Baseplate Core

The LeftField 3 ARRI BUD Compatible 15mm LWS Baseplate Core from Bright Tangerine incorporates ARRI BUD compatibility into the Open-Up quick release system for efficient transitions between shoulder rigs, tripods, and other camera supports. The baseplate is designed to be paired with the BUD Compatible Bottom Dovetail Plate for Sony BURANO via a standard dovetail connection.

It has a total travel distance of 3" to achieve optimal balance. Front and rear 15mm LWS rod mounts for attaching lens motors and other rod-compatible accessories. Mounting threads on the baseplate allow you to incorporate additional accessories like the KASBAH shoulder pad. You can even combine the baseplate with different interchangeable riser blocks for compatibility with specific cameras.

Bright Tangerine BUD Compatible Bottom Dovetail Plate for Sony BURANO

Integrate a quick release system of your choice into your Sony BURANO rig configuration with the Bright Tangerine BUD Compatible Bottom Dovetail Plate. The plate features a wide BUD dovetail standard plate compatible with the ARRI BUD-1 and BUD-3 plates. Combine the plate with the LeftField 3 15mm LWS Baseplate with the dovetail for ARRI-compatible rigs or with the KASBAH Atman Shoulder Rig Kit for VCT-14 compatible rigs.

Gimbals, stabilisers, and other camera supports can be integrated with the plate using the BUD Universal Stabiliser Adapter Mount in either 6 or 12" lengths. The plate secures to the bottom of your camera via two 3/8"-16 captive mounting screws. Use the integrated release lever to quickly transition from handheld to stabilised shooting.

Bright Tangerine Sliding Top Plate for Sony BURANO

This Bright Tangerine Sliding Top Plate is designed to secure to your Sony BURANO cine camera and provide additional mounting points to the top of your rig. The mount consists of the main sliding plate with an ARRI dovetail mounting spot and an ARRI dovetail plate. Both components feature multiple 1/4"-20 and 3/8"-16 mounting threads, ARRI MAP M4 points, and Quick Detach sockets for wide accessory compatibility. Secure accessories like the BUD-compatible dovetail plate, 15mm top rod console, or floating NATO rail to the sliding plate to customize the loadout of your rig.

Bright Tangerine ARRI BP8 Adapter Dovetail for Sony VENICE 1/2 & 15mm LWS Baseplate

Add a quick release to your Sony VENICE or VENICE 2 with the ARRI BP8 Adapter Dovetail from Bright Tangerine. Designed for use with the LeftField 15mm LWS baseplate and ARRI BP-8 or BP-9 bridge plates, this lightweight aluminium dovetail plate features multiple reinforced 1/4"-20 and 3/8"-16 mounting threads, and it is designed to set your VENICE at the correct 15mm or 19mm Studio optical height. The plate features safety stops on the ends, so it doesn't slide out of the mount.

Compatibility

This dovetail is designed to match the mounting screws on the ARRI BP-8 and BP-9 Studio bridge plates, setting the camera at the correct heights and offsets for 15mm Studio and 19mm Studio configurations. It is designed for use with the 15mm LWS Baseplate for Sony VENICE/VENICE 2 B4003.1030.

Quick Release

Using the LeftField baseplate, the camera can snap on/off the bridge plates for fast transitions between setups.

ARRI BP-8 and BP-9 Compatible

The dovetail mounting holes line up to the two screws and locating pins on the ARRI studio bridge plates. When using the BP-9 for 15mm Studio setups, the optical center is offset for correct placement.

Balancing

The extended length offers fore/aft adjustment for optimal balance on the bridge plates.

Mounting Points

The middle of the dovetail also features a row of 3/8"-16 and 1/4"-20 to mount the dovetail on other accessories like tripods and jibs.

Durable Construction

Machined and hand-finished from high-grade materials, it is hard-anodized for extended durability.

Bright Tangerine Drumstix 15mm Sterling Titanium Support Rods (12", Pair)

This pair of Bright Tangerine Drumstix 15mm Sterling Titanium Support Rods is extremely lightweight yet amazingly stiff, allowing you to add rod-mounted accessories to your rig with virtually no flex in the rods, something every owner, operator, assistant, and rental house will appreciate. Each 12" long support rod is extremely lightweight yet exhibits less flex than carbon fiber rods of the same length, and it is lighter than either steel or aluminium rods while being at least as stiff and strong. Made from titanium, the rods are corrosion resistant, and each is machined and ground flat to prevent binding as you mount accessories.

Each titanium rod is machined and ground flat to within a tolerance of 2 microns, which prevents accessories from binding when sliding on the rod. The strength, hardness, and machining tolerances of the rod eliminate the need for the time-honored tradition of spinning the support rod in the rod clamp when trying to build the camera package.

Each rod is extremely lightweight, making it well suited for use with drones or in handheld configurations.

The stiffness of each rod means you can confidently use it to support heavy lenses and matte boxes loaded with filters without worrying about the rod flexing.

Bright Tangerine Left-Side Plate for Sony BURANO

Designed to attach to the left side of your Sony BURANO cine camera, this Bright Tangerine Left-Side Plate expands your rig's mounting options. The plate secures to your camera using the two included mounting screws. Four 1/4"-20 and four 3/8"-16 threads offer multiple mounting points for wireless transmitters or articulating arms. An ARRI-standard rosette at the bottom of the plate allows you to attach a handgrip. Use the NATO rail with integrated eject button to slide accessories on and off as needed.

Bright Tangerine Right-Side Plate for Sony BURANO

Designed to attach to the right side of your Sony BURANO cine camera, this Bright Tangerine Right-Side Plate expands your rig's mounting options. The plate secures to your camera using the two included mounting screws. Four 1/4"-20 and four 3/8"-16 threads offer multiple mounting points for wireless transmitters or articulating arms. An ARRI-standard rosette at the bottom of the plate allows you to attach a handgrip. Use the NATO rail with integrated eject button to slide accessories on and off as needed.

Bright Tangerine Floating NATO Side Rail for Sony BURANO

The Floating NATO Side Rail is designed to be integrated into your Sony BURANO rig configuration using other compatible Bright Tangerine accessories such as the NATO cheese plates or sliding top plate. The rail features two 1/4"-20 captive mounting screws and an offset NATO rail design for ample accessory clearance when attaching to the camera body. Multiple 1/4"-20 and 3/8"-16 threads, as well as the NATO rail, allow you to incorporate the Bright Tangerine NATO cheese plates or other compatible accessories. A safety release button makes sliding your accessories on and off a breeze.

Bright Tangerine Wide NATO Cheese Plate

Incorporate this Wide NATO Cheese Plate from Bright Tangerine into your camera rig configuration to expand its mounting options. The plate's mounting area measures 3.1 x 3.9" and can be adjusted to any orientation depending on the needs of your gear. A NATO clamp secures the plate to your rig, while a close/wide connector can provide an additional 0.4" of clearance between the cheese plate and the rig. Multiple 1/4"-20, 3/8"-16, and ARRI MAP M4 threads provide compatibility with a wide range of accessories.

Bright Tangerine D-Style Master Handle

Integrate this D-Style Master Handle from Bright Tangerine into your large cine camera configuration for additional mounting and security. Two captive 3/8"-16 screws attach the handle to your camera's top plate, while multiple 1/4"-20 and 3/8"-16 anti-twist threads allow you to attach additional accessories like articulating arms and secondary monitors. Quick detach sockets and MAP M4 mounting points expand compatibility to ARRI accessories and camera straps/tethers. The handle's closed loop design ensures your hand does not slip off when holding your rig.

Bright Tangerine 15mm Single-Rod Clamp with 3/8"-16 ARRI-Style Anti-Twist Mount

Mount a 15mm rod to add accessories to your rig with this 15mm Single-Rod Clamp with 3/8"-16 ARRI-Style Anti-Twist Mount from Bright Tangerine. This useful accessory enables you to mount a 15mm rod onto a 3/8"-16 ARRI-style accessory mount with two anti-twist pins. It features a locking lever to secure the screw and a separately available 15mm rod in place.

Key Features:

LeftField 3 BUD-Compatible 15mm LWS Base

Dovetail Plate, Sliding Top Plate

ARRI BBP8 Adapter, 12" Drumstix Rod Pair

Right- and Left-Side Plates

Floating NATO Rail, NATO Cheese Plate

D-Style Master Handle, 15mm Rod Clamp

What's in the Box:

Bright Tangerine LeftField 3 ARRI BUD Compatible 15mm LWS Baseplate Core

Bright Tangerine BUD Compatible Bottom Dovetail Plate for Sony BURANO

3/8"-16 Captive Mounting Screw

Bright Tangerine Sliding Top Plate for Sony BURANO

Dovetail Plate

Mounting Screw

Bright Tangerine ARRI BP8 Adapter Dovetail for Sony VENICE 1/2 & 15mm LWS Baseplate

Bright Tangerine Drumstix 15mm Sterling Titanium Support Rods (12", Pair)

Bright Tangerine Left-Side Plate for Sony BURANO

Bright Tangerine Right-Side Plate for Sony BURANO

Bright Tangerine Floating NATO Side Rail for Sony BURANO

1/4"-20 Mounting Screw

Bright Tangerine Wide NATO Cheese Plate

NATO Clamp

Close/Wide Connector

Bright Tangerine D-Style Master Handle

Bright Tangerine 15mm Single-Rod Clamp with 3/8"-16 ARRI-Style Anti-Twist Mount
