Bright Tangerine LeftField 3 QR Baseplate for RED KOMODO/KOMODO-X (DJI RS 4 & RS 3)

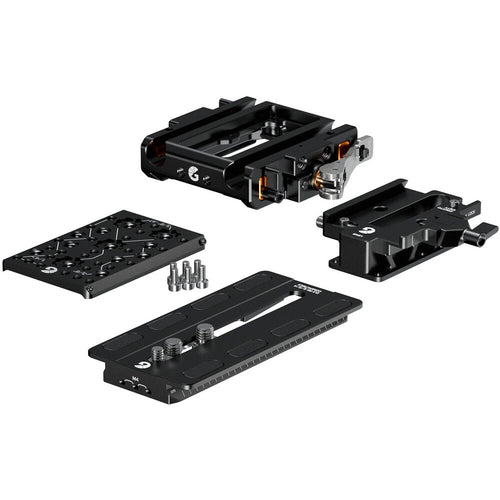

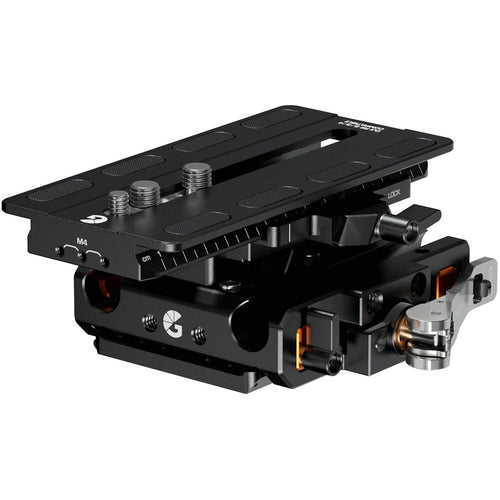

Support your RED KOMODO or KOMODO-X cinema camera on your DJI RS 4, RS 4 Pro, RS 3 Pro, or RS 3 gimbal stabiliser with this LeftField 3 Quick Release Baseplate from Bright Tangerine. The baseplate assembly is made up of the LeftField 3 baseplate core, an ARRI-style dovetail plate, a dovetail for the RED RED KOMODO/KOMODO-X, and a Manfrotto/DJI RS 4/RS 3 riser for LeftField baseplates. All the components are made from durable Aluminium.

The LeftField 3 baseplate features the Bright Tangerine Open-Up quick release system, and it offers 15mm LWS rod ports for an optional rod system. The low-profile dovetail plate features a standard ARRI-style dovetail form, and the KOMODO/KOMODO-X dovetail allows you to mount it onto the RS 4/Pro or RS 3/Pro gimbal. The included DJI/Manfrotto riser allows you to mount the camera onto the gimbal to ensure your camera is at the proper 15mm LWS height.

Bright Tangerine LeftField 3 15mm LWS Quick Release Baseplate Core

The LeftField 3 15mm LWS Quick Release Baseplate Core from Bright Tangerine combines with different interchangeable Bright Tangerine riser blocks and dovetail plates for compatibility with multiple different cameras, tripods, and gimbals. The optional riser blocks provide the correct optical height for each camera and can be swapped in as needed.

The LeftField 3 Baseplate Core attaches to any ARRI-standard dovetail or the Bright Tangerine Left Field ARRI-Style Dovetail Plate. Using Bright Tangerine's Open•Up quick release system, it allows you to quickly switch between shoulder rigs, tripods, gimbals, and other camera supports such as the KASBAH shoulder pad. It also features a sliding, locking base that helps achieve optimal balance wherever you mount it.

The Baseplate Core provides front and rear 15mm LWS rod mounts for attaching accessories. Other LeftField components, such as side plates, supports, and grips can be attached to dedicated mounting threads to build up a full cage.

Bright Tangerine Left Field ARRI-Style Dovetail Plate

The 4" Left Field ARRI-Style Dovetail Plate from Bright Tangerine is an ARRI-standard dovetail with multiple accessory mounts. When used with a separately available Left Field 15mm LWS Baseplate, the Dovetail Plate functions as a quick release plate.

This cheese plate can mount onto the top or bottom of your camera and incorporates multiple 1/4"-20, 3/8"-16, and ARRI anti-twist accessory mounts. The two removable safety screws can also be used to fix the plate onto your camera.

Bright Tangerine Manfrotto & RS 4 Riser for LeftField 15mm Baseplate (RED KOMODO/KOMODO-X)

Support your RED KOMODO or KOMODO-X cinema camera on a DJI RS 4, RS 3, or RS 2 gimbal system using the separately available LeftField Quick Release Baseplate with this Manfrotto & RS 4 Riser from Bright Tangerine. The riser is compatible with the separately available LeftField 15mm LWS baseplate, and it allows you to mount the KOMODO or KOMODO-X and ensures your camera is at the proper 15mm LWS height when mounted onto a gimbal system.

The durable Aluminium riser allows you to mount a Bright Tangerine Universal DJI RS 4, RS 3, RS 2 dovetail, Bright Tangerine DJI dovetail, or a Manfrotto 501PL dovetail. The separately available dovetail plate mounts into a quick release mechanism on the riser and secures with a safety lock.

Bright Tangerine Universal Dovetail for DJI RS 4 Pro, RS 4, RS 3 Pro & RS 3

Easily balance and switch your DJI RS 4 Pro, RS 4, RS 3 Pro & RS 3 gimbal between handheld and tripod setups using the Universal Dovetail from Bright Tangerine. Designed for use with the LeftField 15mm LWS baseplate, this lightweight Aluminium dovetail plate features a generous fore/aft balancing range and a front slot for mounting a lens adapter support. Pair it with a DJI riser and a LeftField Universal baseplate to raise your camera to 15mm LWS height.

The center slot features 1/4"-20 and 3/8"-16 screws in a sliding screw slot, so the camera can be balanced and adjusted without moving the plate. It also features a wide platform design and etched markings for presetting the balance.

Compatibility

This dovetail is compatible with the DJI RS 4 Pro, RS 4, RS 3 Pro, RS 3, and earlier RS gimbal models. It can be loaded directly onto the gimbal without needing to change camera plates. The extra length provides ample room for balancing and adjustment.

Measurement and Balance Markings

Laser-etched markers along the length of the dovetail let ACs mark down balanced positions on the gimbal. The sliding center screw panel allows you to easily adjust the camera for balance.

Accessory Mounting

Lens adapters can be secured using the front channel and supplied screws. Three M4 threads can be used to mount the DJI Focus Motor Rod Mount.

Durable Construction

Machined and hand-finished from high-grade Aluminium, it is hard-anodised for extended durability.

Key Features:

Mount RED KOMODO/X on 15mm QR Baseplate

LeftField 3 Baseplate Core & Dovetail

15mm Riser for Manfrotto & DJI RS 4/3

DJI RS 4 & RS 3 Dovetail

Standard 15mm LWS Camera Height

Durable Aluminium Construction

What's in the Box:

Bright Tangerine LeftField 3 QR Baseplate for RED KOMODO/KOMODO-X (DJI RS 4 & RS 3)

Bright Tangerine LeftField 3 15mm LWS Quick Release Baseplate Core

Bright Tangerine Left Field ARRI-Style Dovetail Plate

Safety Screw

Bright Tangerine Manfrotto & RS 4 Riser for LeftField 15mm Baseplate (RED KOMODO/KOMODO-X)

Screw

Bright Tangerine Universal Dovetail for DJI RS 4 Pro, RS 4, RS 3 Pro & RS 3

3/8"-16 Screw

1/4"-20 Screw
