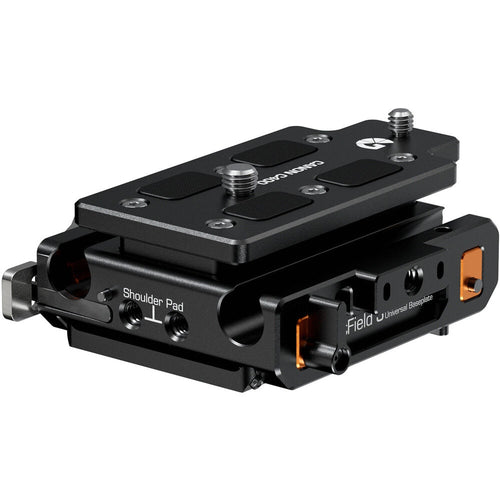

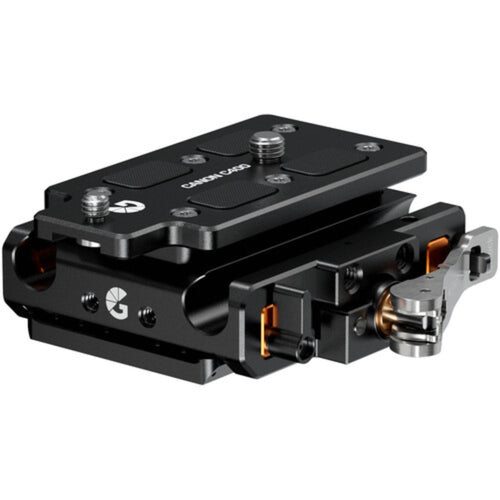

Bright Tangerine LeftField 3 Baseplate Kit for Canon C400

Build your Canon C400 rig using this LeftField 3 Baseplate Kit from Bright Tangerine. This kit utilises the open-up quick release system and includes the LeftField 3 15mm LWS baseplate core, a LeftField ARRI-style dovetail bottom plate, and a riser plate for the Canon C400 to ensure the camera is at the proper 15mm LWS height.

Bright Tangerine Canon C400 Riser for 15mm LWS Baseplates

Mount your Canon EOS C400 camera and ensure it is set to 15mm LWS standard height when mounted on a variety of camera platforms with this Canon C400 Riser for 15mm LWS Baseplates from Bright Tangerine. The durable aluminium riser is designed to be used with Bright Tangerine 15mm LeftField Baseplates such as the LeftField 3 15mm LWS Baseplate B4003.1034.

The plate features rubber pads to protect the camera and prevent twisting, and it includes six captive screws to mount it onto the separately available baseplate. The camera mounts using the captive 3/8"-16 and 1/4"-20 mounting screws.

Bright Tangerine LeftField 3 15mm LWS Quick Release Baseplate Core

The LeftField 3 15mm LWS Quick Release Baseplate Core from Bright Tangerine combines with different interchangeable Bright Tangerine riser blocks and dovetail plates for compatibility with multiple different cameras, tripods, and gimbals. The optional riser blocks provide the correct optical height for each camera and can be swapped in as needed.

The LeftField 3 Baseplate Core attaches to any ARRI-standard dovetail or the Bright Tangerine Left

Field ARRI-Style Dovetail Plate. Using Bright Tangerine's Open-Up quick release system, it allows you to quickly switch between shoulder rigs, tripods, gimbals, and other camera supports such as the kasbah shoulder pad. It also features a sliding, locking base that helps achieve optimal balance wherever you mount it.

The Baseplate Core provides front and rear 15mm LWS rod mounts for attaching accessories. Other LeftField components, such as side plates, supports, and grips can be attached to dedicated mounting threads to build up a full cage.

Key Features:

Open-up Quick Release System

LeftField 3 15mm LWS Quick Release Core

Canon C400 Riser Plate

LeftField ARRI-Style Dovetail Plate

Compatible with Riser Blocks

ARRI-Standard Dovetail Plate

Front and Rear Rod Mounts

Functions as Quick Release

Multiple Accessory Mounts

Supports LeftField Components

Cheese Plate with Thread Mounts

Mounts on Top or Bottom

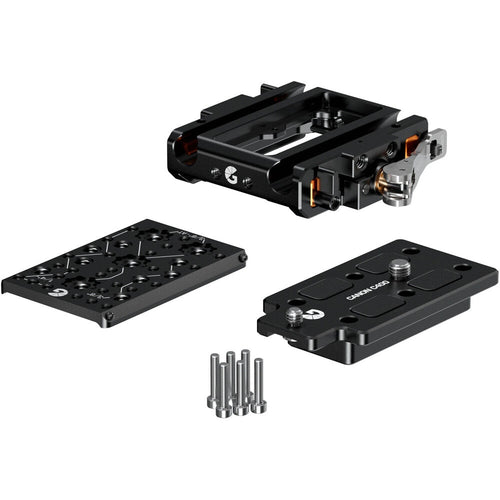

What's in the Box:

Bright Tangerine LeftField 3 Baseplate Kit for Canon C400

M4 Mounting Screw

1/4"-20 Captive Screw

3/8"-16 Captive Screw

Bright Tangerine Left Field 3 15mm LWS Quick Release Baseplate Core

Bright Tangerine Left Field ARRI-Style Dovetail Plate

Safety Screw
