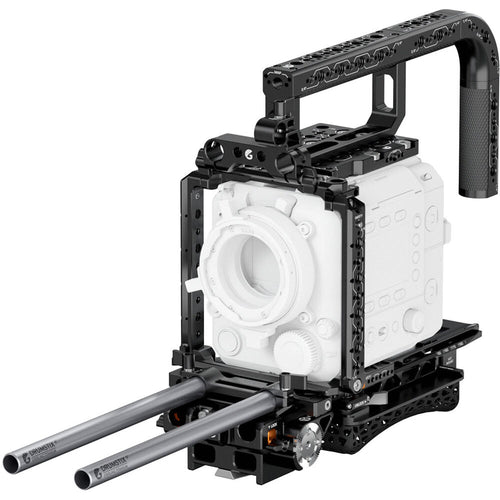

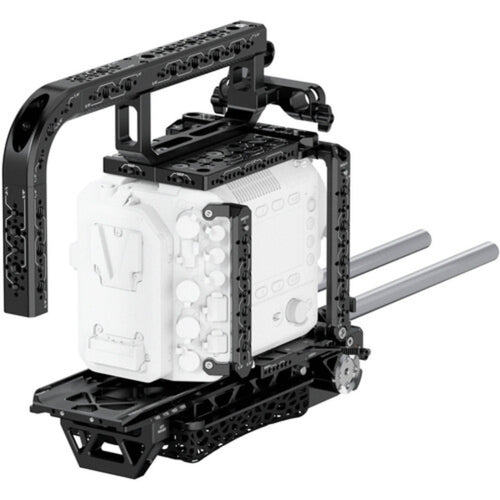

Bright Tangerine Fujifilm GFX ETERNA Expert Broadcast Kit

Go live with the Fujifilm GFX ETERNA Expert Broadcast Kit. Designed for speedy setups, the Broadcast Kit features an integrated KASBAH Atman shoulder rig, meaning you can always stay one step ahead in your setups. From steady handheld footage and tripod mounting, and any other BUD mount.

With plenty of real-estate for rigging, the Fujifilm GFX ETERNA Expert Broadcast Kit lets you put the soul of celluloid into your every shoot.

Go Live

Whether you're needing to keep a strict timecode sync across multiple cameras or are a single-shooter on location, the Expert Broadcast Kit is there to help. Transition quickly from tripods to handheld, or straight onto your shoulder, for effortless ENG shooting.

Built to Broadcast

The Expert Broadcast Kit has been designed from the ground-up to adapt Fujifilm's large-format camera for convenient ENG shooting. Form a complete cage around the ETERNA whilst still maintaining access to essential buttons and inputs, keeping your rig lightweight and convenient. For getting your ETERNA ready to roll, the Expert Broadcast Kit gives you almost limitless customisation options in the form of 1/4" and 3/8" anti-twist screw threads, 15mm support rods, MAP M4 points, QD sockets and NATO rails.

Run-and-Gun

Filmmaking is a world of acronyms: "ENG", "BUD", "VCT-14" - but how do they all fit together? The Expert Broadcast Kit is built around aUniversal BUD Plate, which lets you mount to ARRI's Balanced Utility Dovetails with ease. For putting your entire rig on a tripod, the KASBAH Atman shoulder rig features an integrated VCT-14 tripod mount. This means that you are always prepared for when something doesn't go according to plan, and can keep moving under pressure.

Set the Standard

With this setup, the ETERNA Expert Broadcast Kit is also placed at the 15mm LWS optical centre height: adding compatibility with matte boxes, follow-focus wheels and more. Given how tall the ETERNA is, the included Rod Bracket for the Universal BUD Plate gives you the extra rod reach and lets you take the full rig between BUD mounts.

Easily Handled

For transport between locations, steady panning on sticks or low-angle coverage; the ETERNA Expert Broadcast Kit has a D-Style Master Handle and a selection of Handle Extensions. This rigid and ergonomic handle setup features rubber inlays for a comfortable grip, as well as a curved design for enhanced versatility in the field.

Built to Last

Fujifilm designed the ETERNA to be eternal: with a design quality to last the test of time. Bright Tangerine's product philosophy is the same. Each component is made from high-quality materials and with sustainability in mind. The Expert Broadcast Kit can withstand the worst that you throw at it, and keep on rolling.

Instructions/Assembly

The Fujifilm GFX ETERNA Expert Broadcast Kit comes with all required components and screws. You will require your own 3mm and 4mm Hex Keys as well as a flathead screwdriver in order to install the components.

BUD Plate to Camera

Align the screws of the Universal BUD Plate with any of the 1/4" and 3/8" screw threads on the base of the ETERNA.

Use a flathead screwdriver to attach the BUD plate to the camera.

Top Plate (Front) to Camera

Align the Top Plate's captive screws with the two 3/8" screw threads on the ETERNA.

Use a 4mm Hex Key to secure the Top Plate to the camera.

Top Plate (Left) to Camera

Align the Top Plate's 3/8" screws with the bottom two 3/8" screw threads on the ETERNA's left row of accessory threads.

Use a 4mm Hex Key to secure the Top Plate to the camera.

Top Plate (Right) to Camera

Align the Top Plate's 3/8" screws with the bottom two 3/8" screw threads on the ETERNA's right side.

Use a 4mm Hex Key to secure the Top Plate to the camera.

Top Handle to Top Plate (Left)

Align the two captive 3/8" screws with the corresponding slots on the Top Plate (Left) - the screws can slide to adjust.

Use a 4mm Hex Key to attach the handle to the plate.

Bracket and Spacer to Handle

Align the Spacer's nub with the inlet on the Top Bar Bracket, aligning the screw threads.

Align the Top Handle on the other side, ensuring the Spacer is flush against both components.

Insert the two M4 x 25mm screws through all three components.

Use a 3mm Hex Key to tighten the screws, ensuring all three parts are secured.

Side Rib(s) to Top Plate

Align the Side Rib with the left or right lip on the Top Plate.

Use a 4mm Hex Key to tighten the screw into place.

Repeat on the other side with the other Side Rib.

Side Rib Brace to Universal BUD Plate

Use a flathead screwdriver to remove the screw from the Side Rib Brace.

Place the Side Rib Brace on top of the Universal BUD Plate and insert the screw through the bottom.

Use the flathead screwdriver to reattach the screw through the BUD Plate to the Side Rib Brace.

15mm Rod Bracket to Universal BUD Plate

Align the Rod Bracket's M4 screws with the front threads on either side of the Universal BUD Plate

Use a 3mm Hex Key to tightly secure the Rod Bracket in place.

Rear Side Plate to Camera

Align the two M4 screws with the corresponding threads on the rear of the ETERNA - one above the microphone input, and one below the DC cable input.

Use a 3mm Hex Key to tightly screw the Rear Side Plate to the ETERNA.

Compatibility

The Fujifilm GFX ETERNA Expert Broadcast Kit is compatible with the GFX ETERNA, with a dedicated wraparound cage designed for the camera's shape and size. Other accessories, such as the Universal BUD Plate and KASBAH Atman Shoulder Rig, are universal and can be reconfigured.

Part of the Fujifilm System

Bright Tangerine's range of accessories for the Fujifilm GFX ETERNA are precision-engineered to maximise freedom and minimise downtime. Wear and corrosion-resistant; each accessory is made by a combination of expert designers, engineers and - of course - filmmakers.

Zero Compromises

Based in the UK, Bright Tangerine's products are designed and manufactured to the highest standards of quality. Built as practical solutions to filmmaking problems, each accessory is tested rigorously to meet the standards of some of the largest productions in the world.

Key Features:

Integrated KASBAH Atman Shoulder Rig

Lightweight and Durable Cage Design

Multiple Mounting and Rigging Options

Quick Transitions for ENG Shooting

Comfortable D-Style Master Handle

Compatible with 15mm LWS Accessories

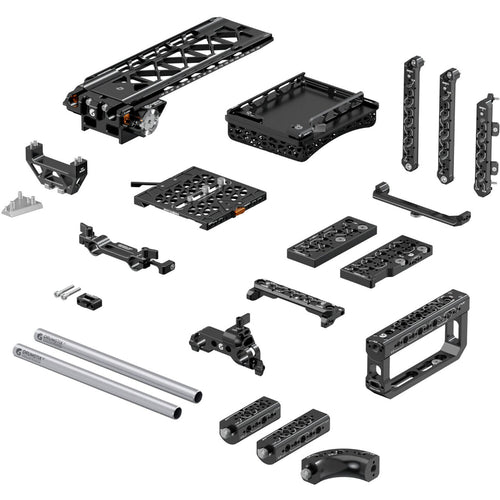

What's in the Box:

Bright Tangerine Fujifilm GFX ETERNA Expert Broadcast Kit

Fujifilm GFX ETERNA Top Plate (Right)

Fujifilm GFX ETERNA Top Plate (Left)

Fujifilm GFX ETERNA Side Rib

Fujifilm GFX ETERNA Side Rib Brace

Fujifilm GFX ETERNA Rear Side Plate

Universal BUD Plate

D-Style Master Handle Mk II

Master Handle 90mm Extension

Master Handle 90-degree Extension

Master Handle 70mm Extension

Bar Bracket Spacer

Top Bar Bracket and 15mm Rod Mount

15mm Rod Bracket for Universal BUD Plate

KASBAH Atman Shoulder Rig Frame

KASBAH Atman Shoulder Rig Wide Two-Axis Pad

KASBAH Atman Shoulder Rig VCT Mounting Kit

Drumstix 19mm Titanium Support Rods - 9" (22.8cm)
