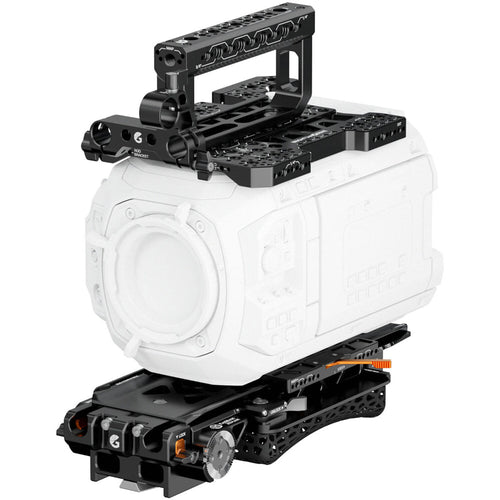

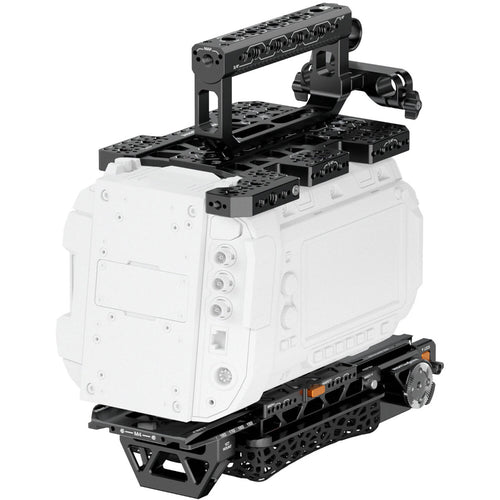

Bright Tangerine Expert Documentary Kit for Blackmagic URSA Cine

Create a versatile mounting system for your Blackmagic URSA Cine with the Bright Tangerine Expert Documentary Kit. The kit includes a wide variety of components that help you create a rig that easily transitions between handheld and shoulder-mounted shooting. Seamlessly move to VCT-14 tripods and BUD platforms thanks to the included baseplate and accessories.

Bright Tangerine D-Style Master Handle Mk II

Integrate this redesigned D-Style Master Handle Mk II from Bright Tangerine into your large cine camera configuration for additional mounting and security. Two captive 3/8"-16 screws attach the handle to your camera's top plate, while multiple 1/4"-20 and 3/8"-16 anti-twist threads allow you to attach additional accessories like articulating arms and secondary monitors.

Quick-detach (QD) sockets and MAP M4 mounting points expand compatibility to ARRI accessories and camera straps/tethers. The handle's closed-loop design ensures your hand does not slip off when holding your rig.

Bright Tangerine Bar Bracket Spacer

Make space between your Top Bar Bracket and Rod Mount with the Bar Bracket Spacer from Bright Tangerine. Part of the Bright Tangerine Create accessory system, this compact spacer adds 15mm of space between the Top Bar Bracket and Rod mount, facilitating the mounting of more top handles and accessories, such as the Short Create NATO Top Handle. It installs using two long M4 screws.

Bright Tangerine Top Bar Bracket with 19mm Rod Mount

The Top Bar Bracket with 19mm Rod Mount by Bright Tangerine adds two front-facing 15mm rod brackets and a sideways-facing 19mm rod bracket to your camera rig. It uses the 15mm LWS spacing for wide compatibility. Adjust each rod individually with independent clamps. Mount the bracket quickly with the included two M4 screws.

Bright Tangerine Top Plate for Blackmagic URSA Cine Camera

Expand mounting options on your camera with the Top Plate for Blackmagic URSA Cine Camera by Bright Tangerine. It is designed for use with the separately available Blackmagic URSA Cine and installs on three 1/4"-20 screws. Add multiple 1/4"-20 and 3/8"-16 threads to your camera when you attach the plate, as well as MAP M4 and QD sockets. The plate's shape maintains optimal airflow, controlling heat on your camera. Use the extension piece on either side of the plate, thanks to a modular design. Enjoy long-term use thanks to a durable aluminium construction.

Bright Tangerine Universal BUD Plate

The Universal BUD Plate from Bright Tangerine enables your camera to be moved effortlessly between shoulder rig, baseplate, gimbal, and handheld setups. This adaptability is possible thanks to its compatibility with the 88mm BUD standard and a variety of BUD accessories, including the KASBAH Atman shoulder rig, LeftField 3 BUD baseplate, stabiliser adapter mounts, gimbal dovetails, and ARRI's own BUD products. Designed for universal compatibility, the plate features a flat surface that adds only 0.8" to your setup, minimising bulk while accommodating any camera. This design maximises functionality without sacrificing form or convenience.

Central Channel with Captive Screws

The central channel of the plate includes two 3/8"-16 and 1/4"-20 captive screws, making it compatible with any mounting point configuration-whether it's two 3/8"-16, or a combination of one 3/8"-16 and one 1/4"-20. This feature ensures secure attachment to any camera, providing a robust foundation for various shooting needs.

Easily Accessible Lock

No more struggling with hard-to-reach locks as the easily accessible low-profile lever lock makes locking simple. This tactile and secure clamp ensures that adjustments can be made swiftly and reliably, enhancing the overall user experience by reducing downtime during shoots.

Safety Button for Secure Operation

To prevent accidental releases when balancing the camera, the plate is equipped with a safety button. This critical feature enhances operational safety, giving users peace of mind during dynamic shooting scenarios.

Accessory Mounting with MAP M4

The plate includes MAP M4 points on both sides, making it compatible with a wide variety of accessories. Additionally, it provides provisions for future side plates and other accessories, ensuring long-term adaptability and expansion.

Compact Alternative to ARRI BUD-3

For camera operators using the ARRI Alexa Mini LF, the Universal BUD Plate offers a compact alternative to the ARRI BUD-3, which doesn't require the full cage to be used. The rear of the BUD-3 is equipped with mounting points for the rear bracket and battery mounts, which add weight to the back of the camera.

Lightweight & Strong

Engineered to minimise flex, the Universal BUD Plate is CNC machined and meticulously hollowed out, preserving its structural integrity. Its lightweight design ensures durability and ease of handling, which makes it an ideal choice for long shooting sessions where every ounce matters.

15mm LWS Standard Heights

As a universal accessory, the optical height will vary depending on the camera used. When paired with the KASBAH Atman Shoulder Rigs, the front rod mount can be adjusted to ensure the rods are positioned at the correct height. The LeftField 3 BUD 15mm LWS Baseplate offsets the camera heights.

Bright Tangerine KASBAH Atman Shoulder Rig Frame

The KASBAH Atman Shoulder Rig Frame from Bright Tangerine provides all the accessories you need to configure your cine camera shoulder rig. The frame features a BUD-compatible dovetail, ARRI-standard rosettes on the sides, and a 15mm LWS dual-rod clamp.

The BUD dovetail design provides a 6.5" sliding range when mounted onto a compatible quick release base such as a BUD-1 or BUD-3 bottom plate. There are measurement markings on the side to ensure your setup can be easily replicated. It is compatible with the optional VCT-14 mounting set, KASBAH handgrips and extension arms, optional shoulder pads, or a rear 15mm mount to create a versatile shoulder rig.

Bright Tangerine Wide Two-Axis Pad for KASBAH Atman Shoulder Rig

Add a wider pad to your KASBAH Atman shoulder rig frame with this Wide Two-Axis Pad from Bright Tangerine. This extra-wide pad provides breathable comfort to your KASBAH Atman shoulder rig, and it allows you to quickly mount and unmount the frame from the pad with a secure safety knob. The two-axis pad allows you to smoothly adjust the rig forward/back and left/right to achieve fine positioning.

KASBAH Technology

Experience unparalleled comfort and support with our innovative KASBAH shoulder pads, designed for customisable comfort and peak performance, ensuring all-day wearability and accurate pressure relief. Its innovative design incorporates multiple density zones, offering targeted pressure relief to alleviate discomfort during long shoots.

Precise Positioning

This shoulder pad offers two-axis adjustment, connecting seamlessly to the KASBAH Atman Shoulder Rig Frame. It allows smooth sliding both forward and backward as well as left and right movements. The fore and aft adjustment enables you to optimise weight distribution, while the left and right adjustment allows you to position the camera closer or further away from your head.

Safety Release

When using the shoulder rig without a rear mounting foot, the safety mechanism activates before it can be disengaged from the frame, ensuring there are no accidental releases.

Bright Tangerine VCT Mounting Kit for KASBAH Atman Shoulder Rig

Mount your KASBAH Atman Shoulder Rig onto a standard VCT-14 plate with the VCT Mounting Kit from Bright Tangerine. As part of the KASBAH Atman system, the adapter mounts onto the front of the separately available KASBAH Atman frame using captive anti-twist screws. If you are utilising a shoulder pad with the frame and require more space for adjustment, the rear foot is removable.

Key Features:

D-Style Master Handle Mk II, Top Plate

Bar Bracket Spacer, Top Bar Bracket

Universal BUD Plate

KASBAH Atman Shoulder Rig Frame

Wide Two-Axis Pad for Shoulder Rig

VCT Mounting Kit

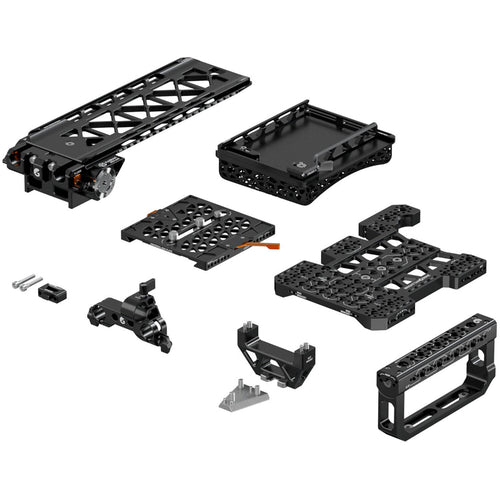

What's in the Box:

Bright Tangerine Expert Documentary Kit for Blackmagic URSA Cine

Bright Tangerine D-Style Master Handle Mk II

Bright Tangerine Bar Bracket Spacer

Bright Tangerine Top Bar Bracket with 19mm Rod Mount

Bright Tangerine Top Plate for Blackmagic URSA Cine Camera

Bright Tangerine Universal BUD Plate

Bright Tangerine KASBAH Atman Shoulder Rig Frame

Bright Tangerine Wide Two-Axis Pad for KASBAH Atman Shoulder Rig

Bright Tangerine VCT Mounting Kit for KASBAH Atman Shoulder Rig

3/8"-16 Screw

M4 Screw

Rear Foot
