Bright Tangerine DJI RS 2 & RS 3 Riser Kit for 15mm Baseplate (RED V-RAPTOR)

Support your RED V-RAPTOR cinema camera on a DJI RS 2 or RS 3 gimbal system using the separately available LeftField Quick Release Baseplate with this DJI RS 2 & RS 3 Riser Kit from Bright Tangerine. The kit includes a DJI RS 2/RS 3 riser and a DJI/Manfrotto dovetail plate. Both components are made from durable aluminium.

The riser is compatible with the separately available LeftField 3 15mm LWS baseplate, and it allows you to mount the V-RAPTOR and ensure your camera is at the proper 15mm LWS height when mounted onto a gimbal system. The included dovetail plate features rubber padding and an extra-wide platform to ensure the camera is secure and balanced. It mounts onto the quick release mechanism and secures with a safety lock.

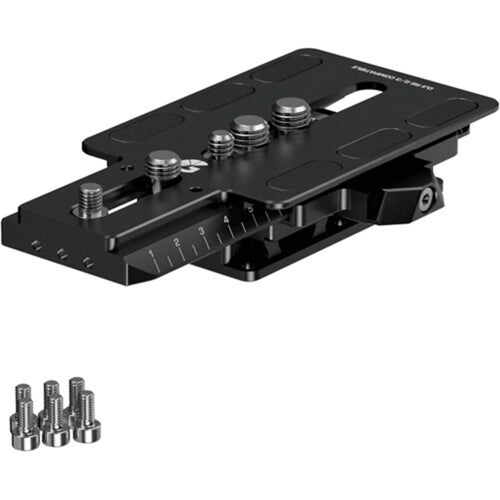

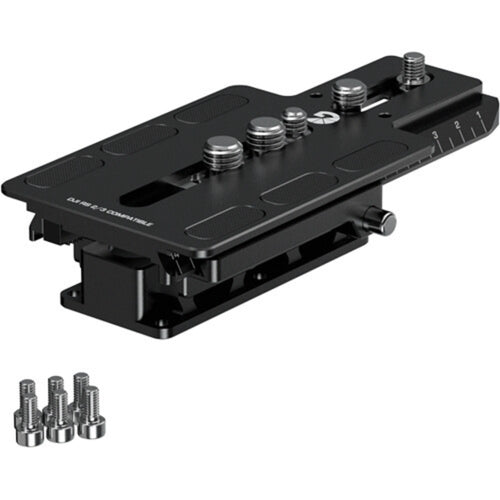

Bright Tangerine Universal Extended DJI RS 2 & RS 3 Dovetail

Easily balance and switch your camera when using the DJI RS 2 or RS 3 gimbal stabiliser between handheld and tripod setups using the Universal Extended DJI RS 2 & RS 3 Dovetail from Bright Tangerine. Designed for use with the LeftField 3 15mm LWS baseplate and a cinema camera of your choice, this lightweight aluminium dovetail plate features a generous fore/aft balancing range and a front slot for mounting a lens adapter support. Pair it with a DJI/Manfrotto riser and a LeftField 3 baseplate to raise your camera to 15mm LWS height.

The center slot features a sliding screw shuttle, so the camera can be balanced and adjusted without moving the plate. It also features a wide platform design and etched markings for presetting the balance. There are three threads on the front to mount the DJI Focus Motor Rod mount.

Compatibility

The dovetail uses the same DJI standard, complete with a racking gear. It works directly with the DJI RS 2 and RS 3 gimbals without the need to change camera plates. The extra length provides ample room for balancing and adjustment.

Measurement and Balance Markings

Laser-etched markers along the length of the dovetail let ACs mark down balanced positions on the gimbal.

Accessory Support

Lens adapters can be secured using the front channel and supplied screws.

Durable Construction

Machined and hand-finished from high-grade materials, it is hard-anodized for extended durability.

Bright Tangerine Manfrotto Riser for 15mm Baseplate (RED V-RAPTOR)

Mount your RED V-RAPTOR camera and ensure it is set to 15mm LWS standard height when mounted on a rig with this Manfrotto Riser from Bright Tangerine. The durable aluminium riser is designed to be used with the LeftField Baseplate core and the optional Manfrotto dovetail plate.

The plate features a quick release design and includes six captive screws to mount it onto the separately available baseplate. It also has an integrated safety lock to prevent plate movement or disconnection.

Compatibility

RED V-RAPTOR cinema camera

Bright Tangerine Manfrotto Dovetail for RED V-RAPTOR

Bright Tangerine LeftField Baseplate core

Reliable and Safe

The dovetail is secured using a 4mm Allen key that enables the operator to securely tighten down the clamp with a higher force than a lever. There is also no risk of levers being knocked during operation. Additional safety points prevent the camera plates from sliding out accidentally.

Manfrotto 501PL Compatible

The receiver is compatible with the Manfrotto Dovetail for the RED V-RAPTOR (B4002.1059) and other Manfrotto 501PL style plates. When using other plates, the height may vary, resulting in non-standard heights.

Key Features:

Mount RED V-RAPTOR on 15mm QR Baseplate

DJI RS 2/3 Riser & DJI Dovetail Plate

Standard 15mm LWS Camera Height

Works with DJI RS 2 & RS 3 Gimbals

Durable Aluminium Construction

What's in the Box:

Bright Tangerine Universal Extended DJI RS 2 & RS 3 Dovetail

Screw Set

Bright Tangerine Manfrotto Riser for 15mm Baseplate (RED V-RAPTOR)

Screw

4mm Allen Key
